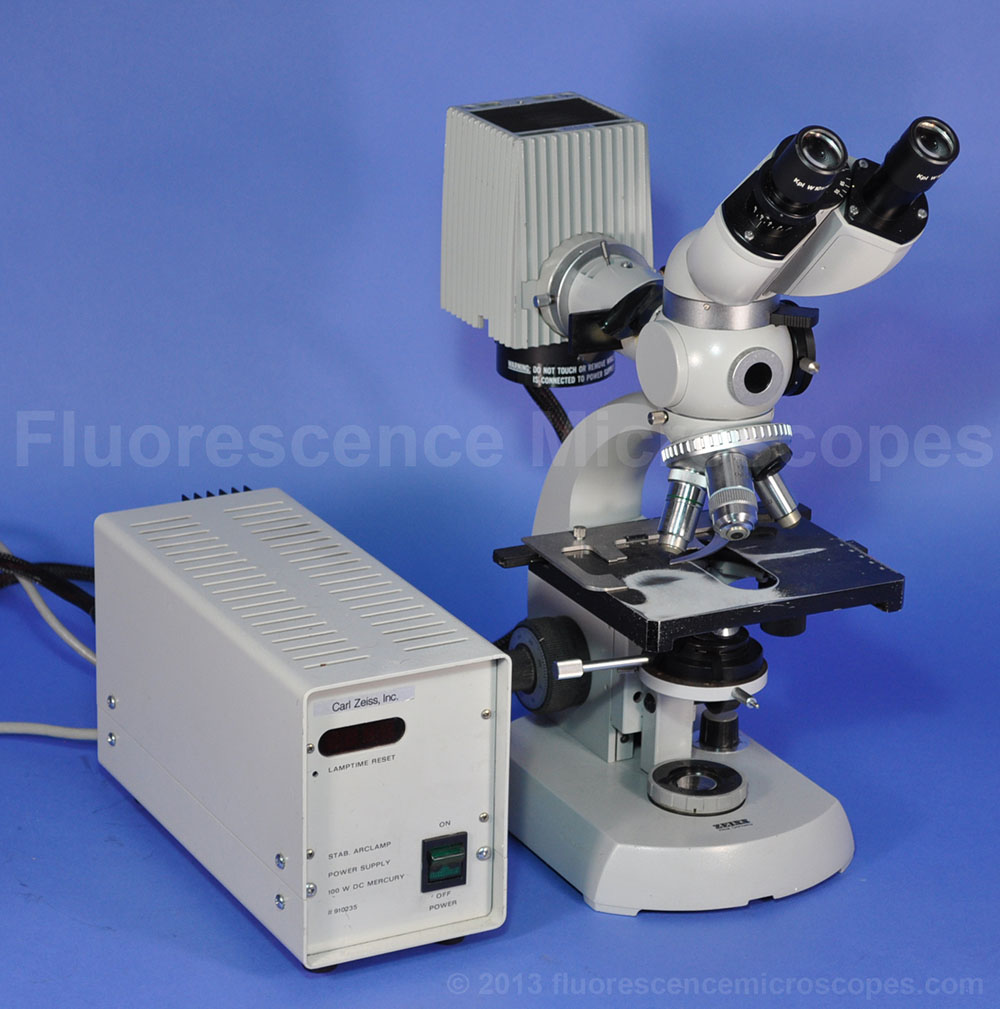

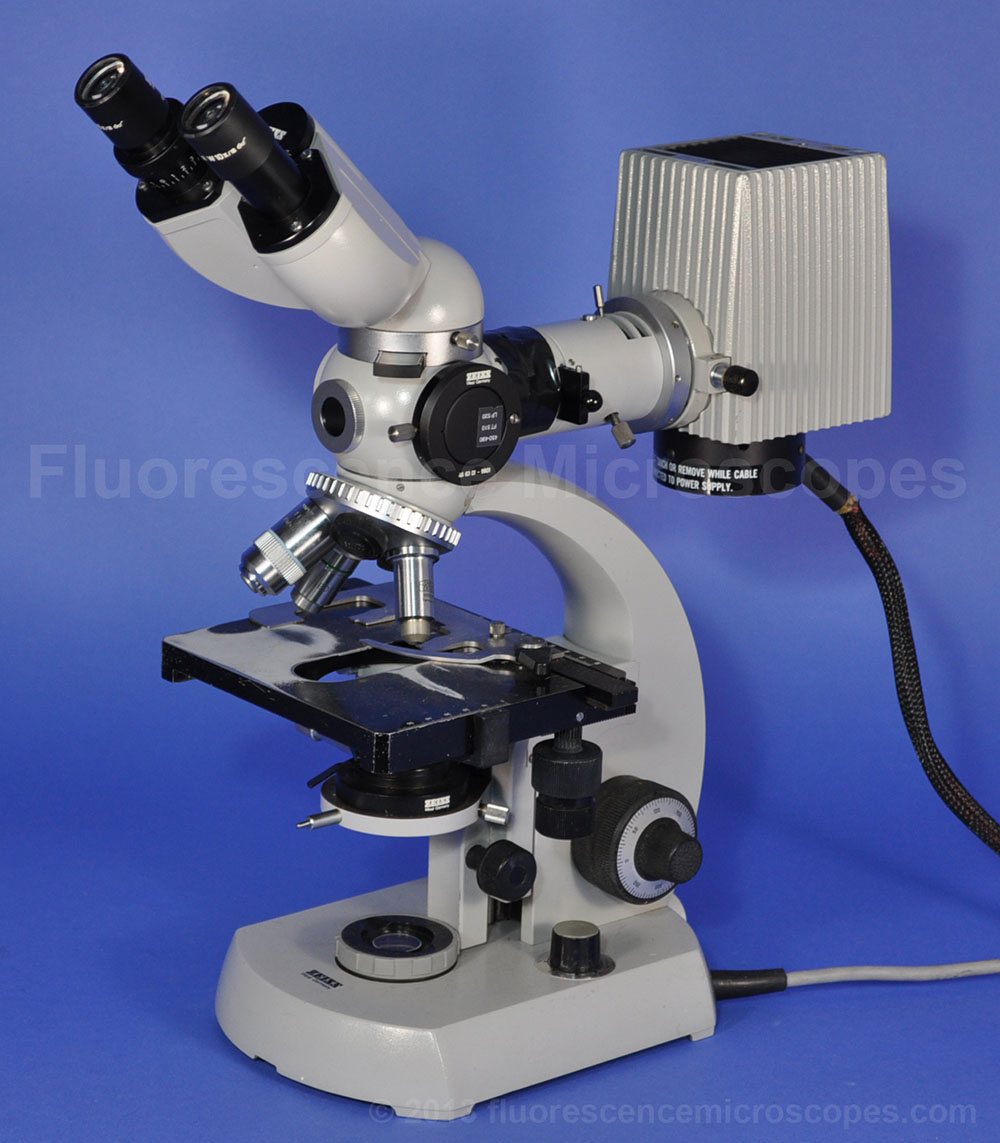

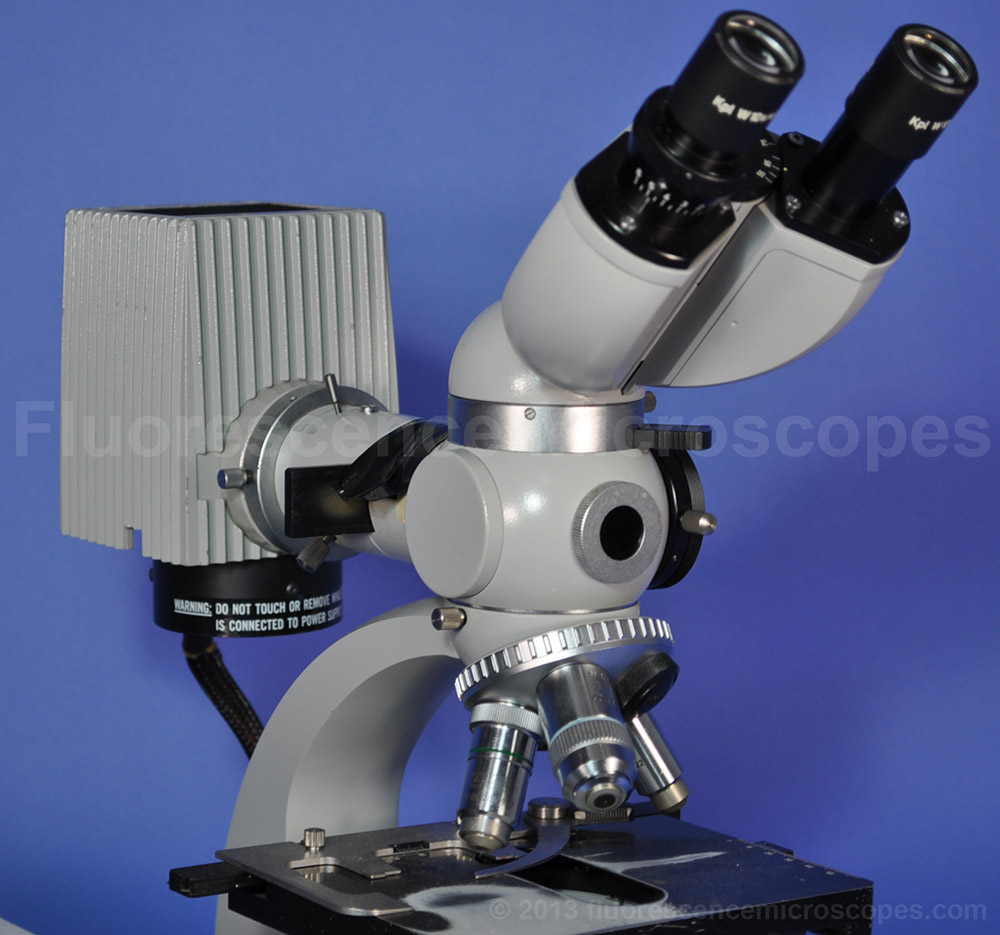

Zeiss
Fluorescence
Microscope

Objectives:

• 10x/0.22 (Zeiss)
• Neofluar 25x/0.60. 160/0.17 (Zeiss)
• EF 40X/0.65, 160/0.17. (Leitz Wetzlar Germany)

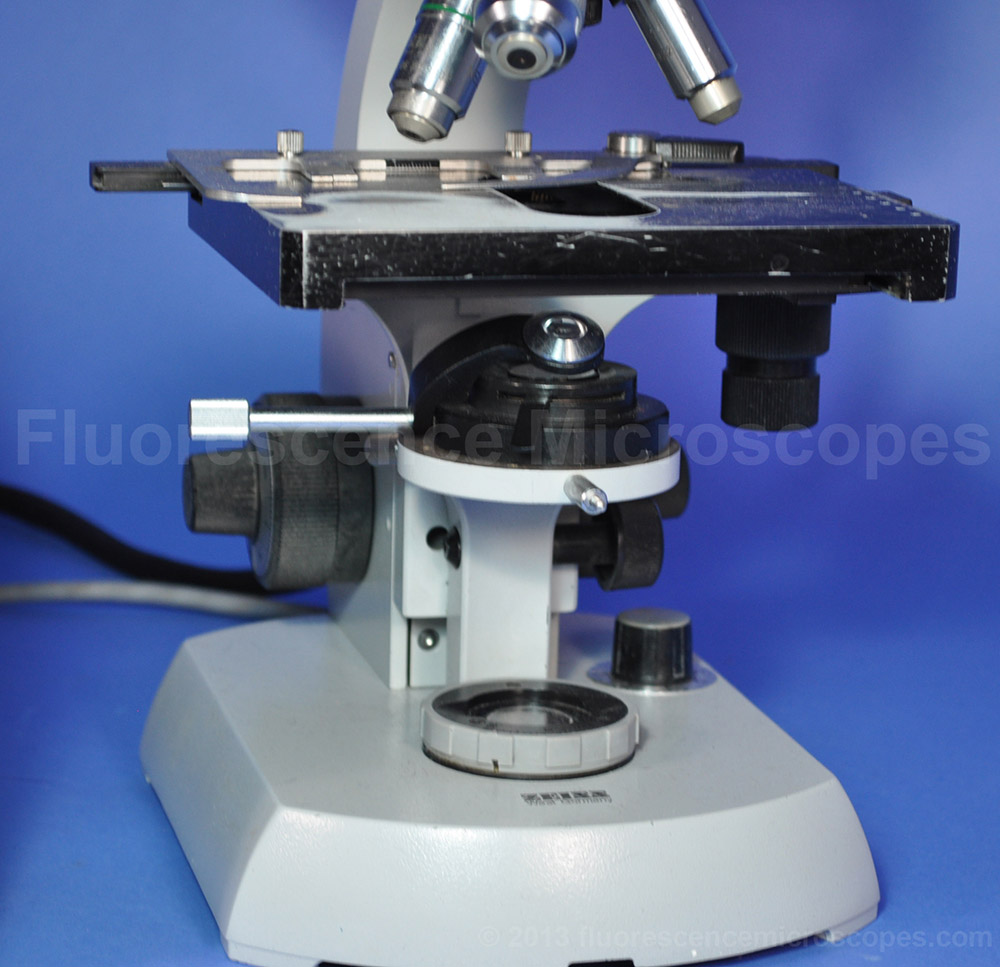

Condenser:

• 0.9 Numerical Aperature.
• Flip-Out Lens. Great for low power objectives.

General Features:

• Upright Design.
• Binocular viewing head.
• The head has good movement, rotation and turning.
• KPL W 10x/18. High eyepoint.
• Diopter Adjustment on one eyetube to adjust image between the eyepieces.
• 5-place Quintuple Nosepiece. The nosepiece turns well with positive click-stops and no grinding.
• Filter holder/slider located under the head.
• Koehler illumination field diaphragm
• Transmitted Illumination in base. 6V-10W.

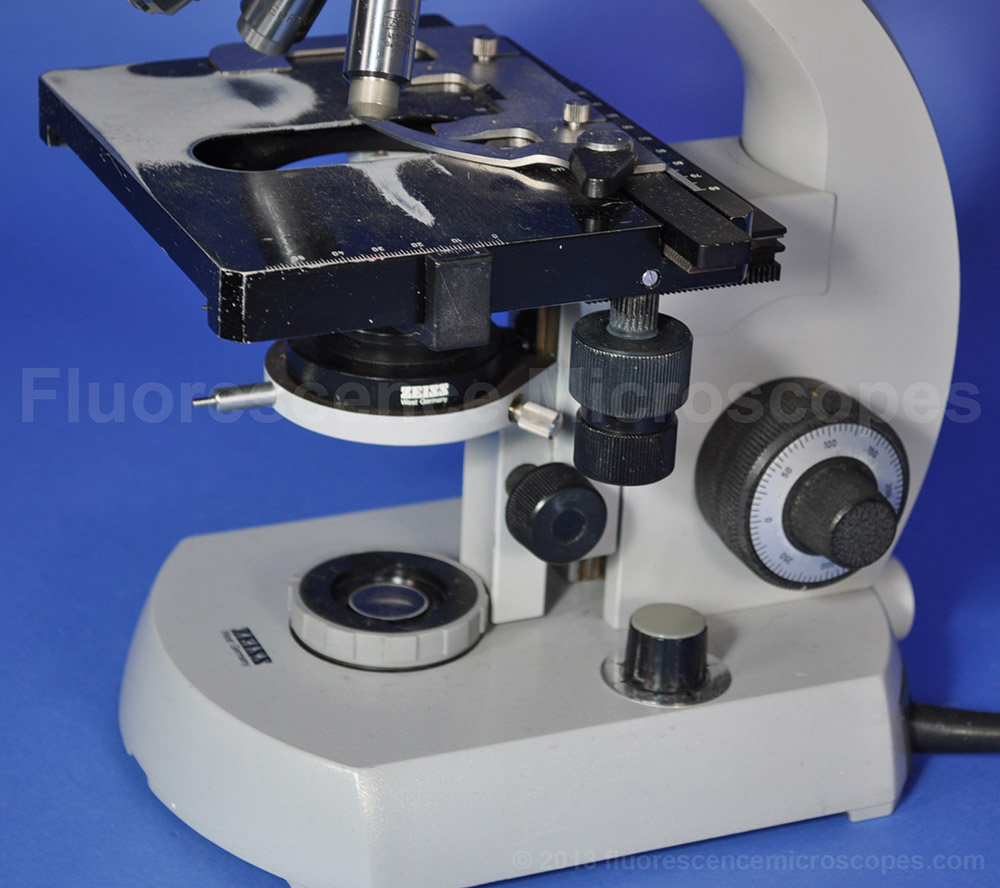

• The stage surface shows wear, but as is typical with Zeiss quality, the stage has excellent movement, probably as good as the day it was built.
• There is a place for more filters (such as optional neutral density) to be installed in the vertical illuminator path. Those optional filters are not present, so there is black tape over the area to prevent extraneous light from escaping.

Fluorescence Microscopy:

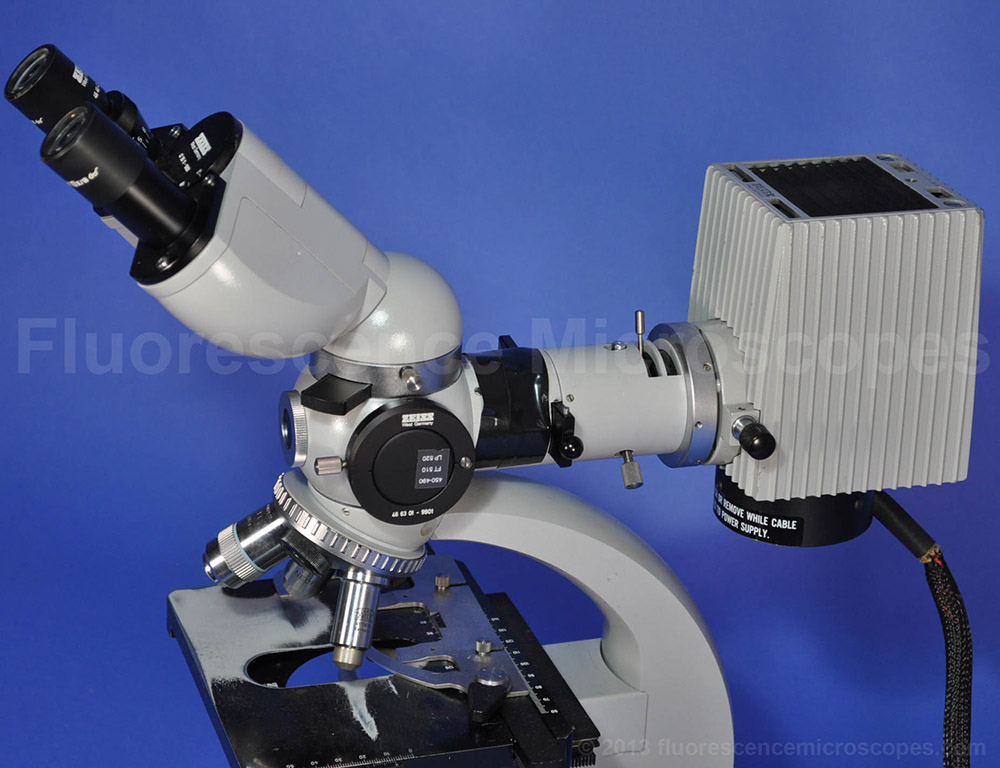

• 100W HBO Mercury Lamp Housing.
• Includes Mercury Bulb.

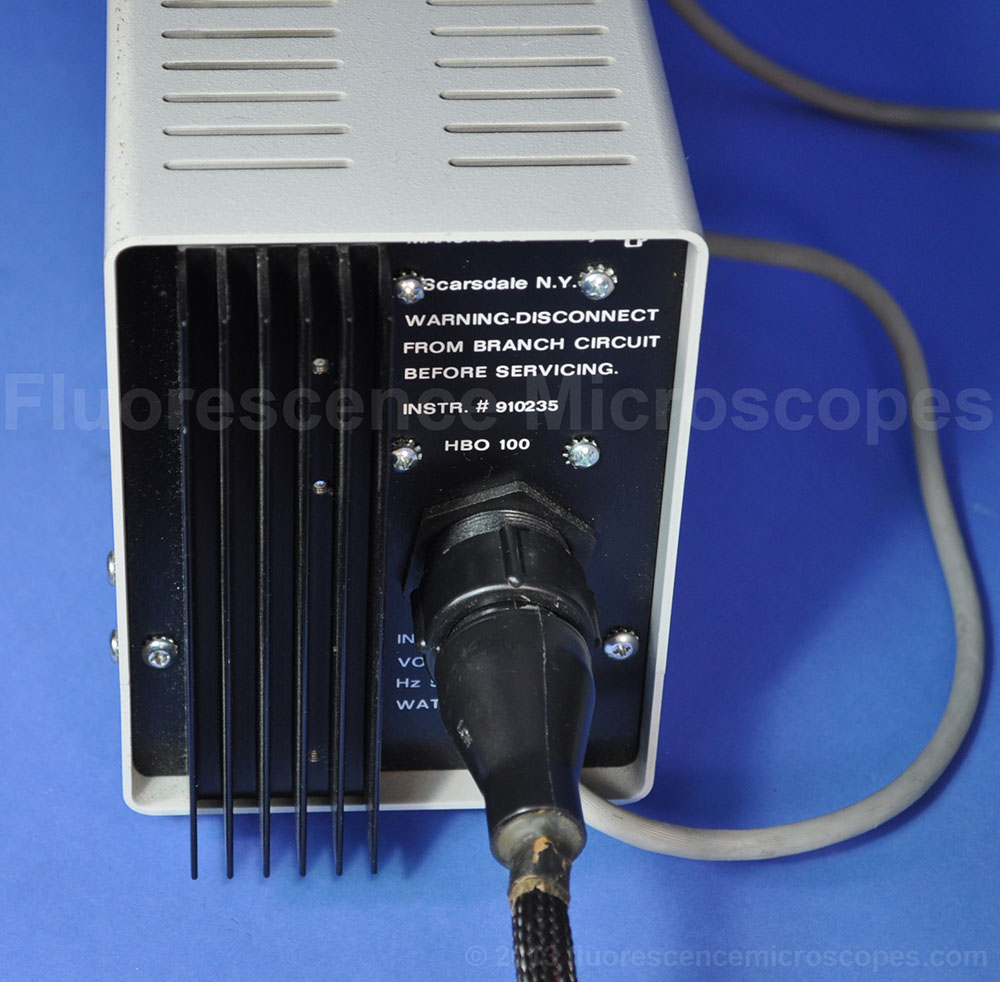

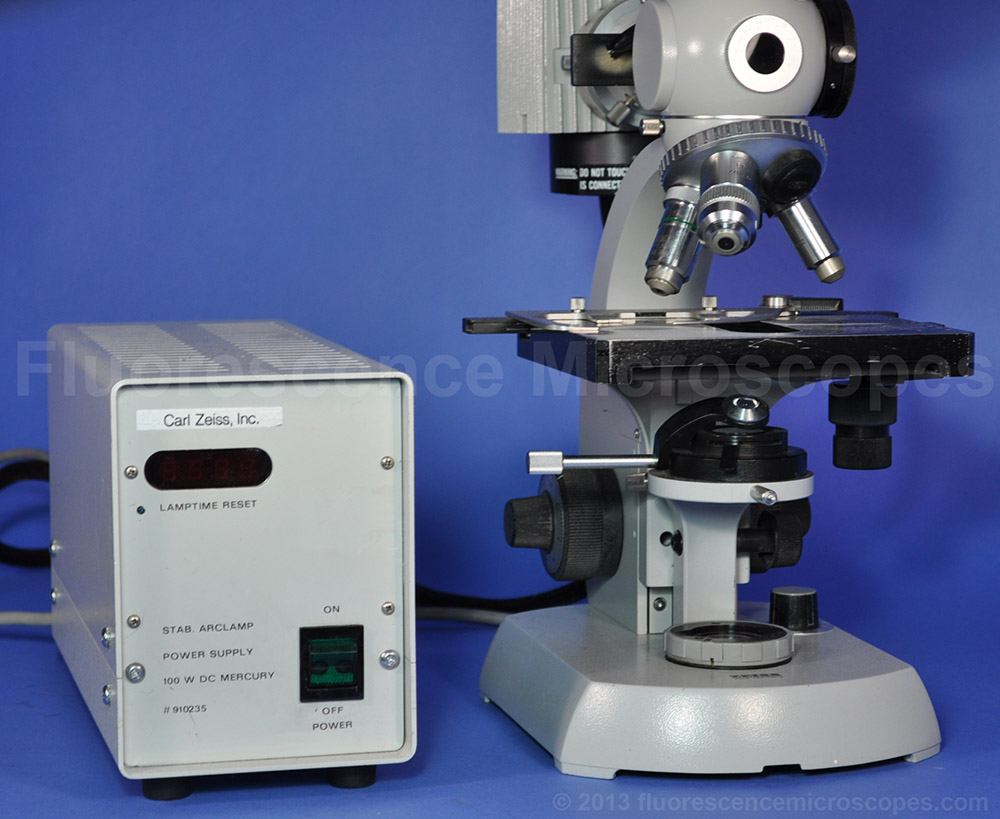

• Zeiss 100W HBO external power supply.

Wavelength Filter Spectrum:

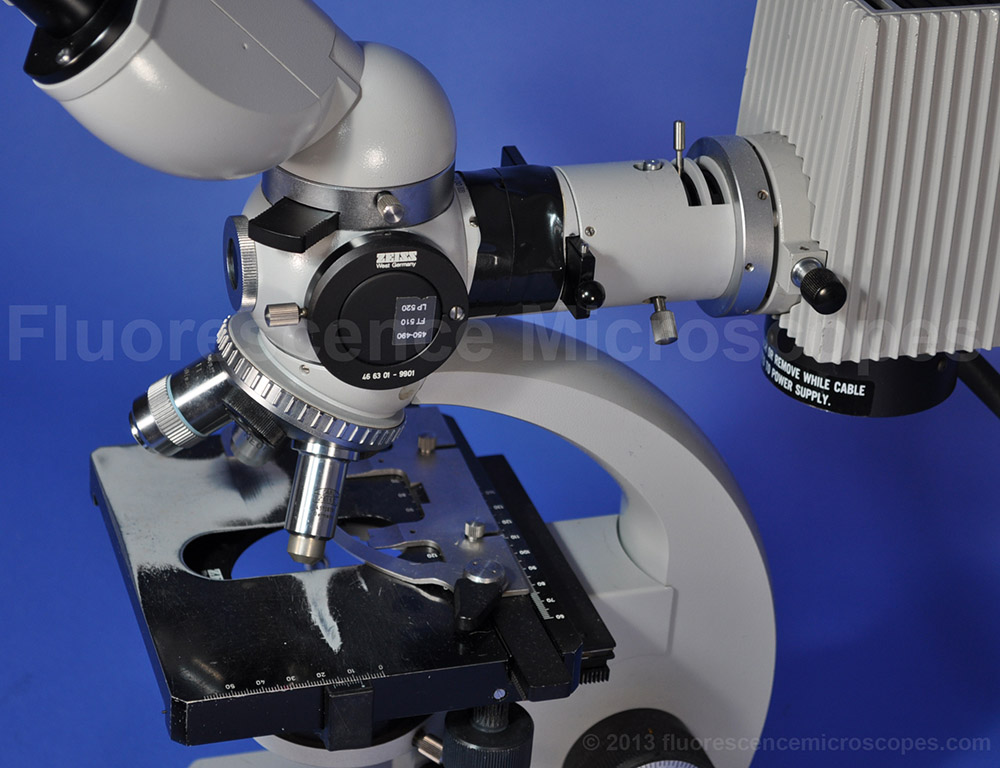

• Filter Cube tray with two cube capacity.
• One cube empty.

One cube with the following specs:
FITC

• 450-490 nm. Excitation.
• FT 510. Dichroic Mirror.
• LP 520. Long Pass Barrier filter.

Condition:

• This is a used microscope and sold in as-is condition.
• The unit, including the fluorescence system, was tested and performed satisfactorily.

Warning:

UV light and Mercury Bulbs are Dangerous! YOU MUST Read BEFORE purchasing! Click this link.
Safe With UV Light
