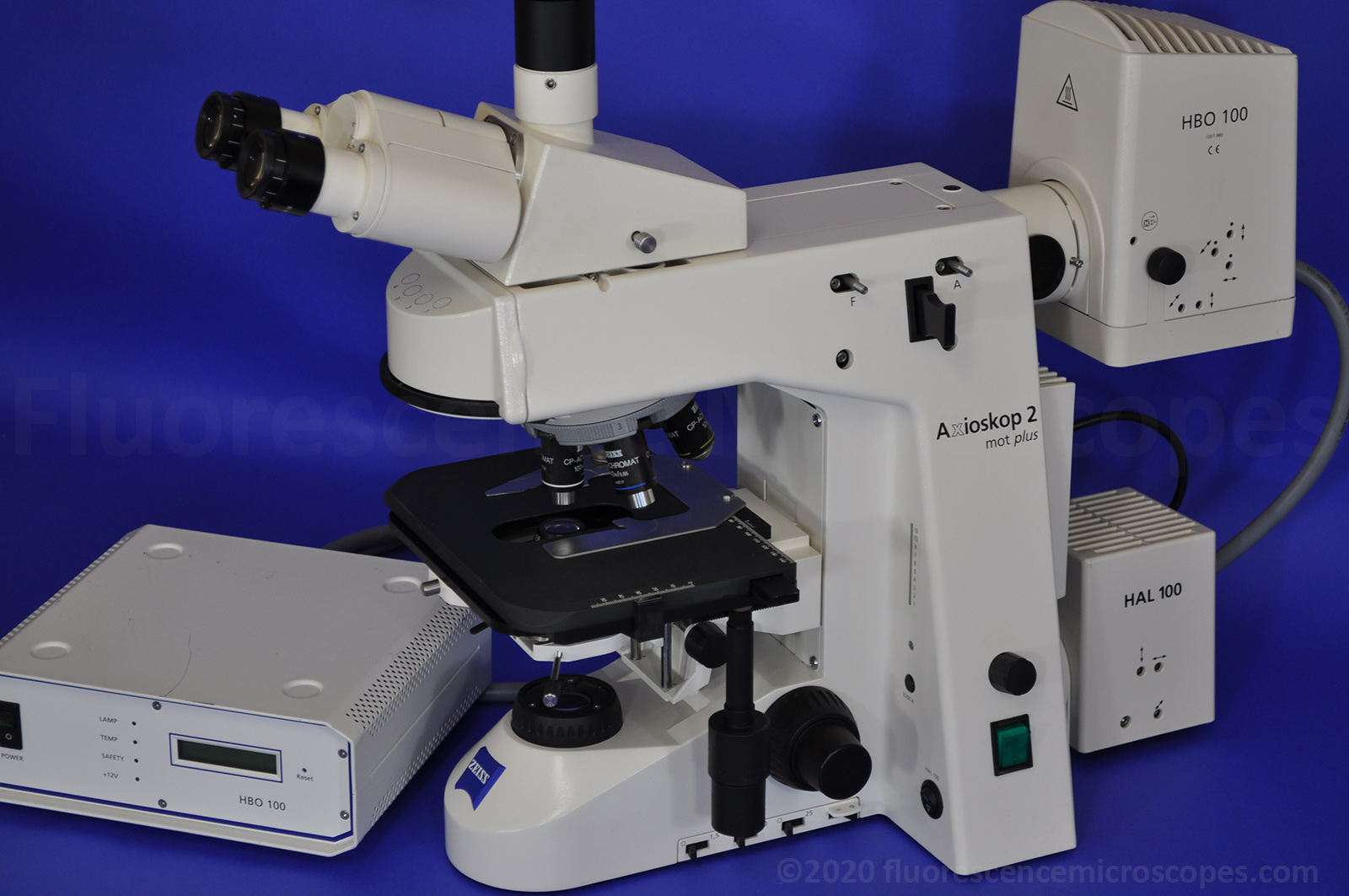

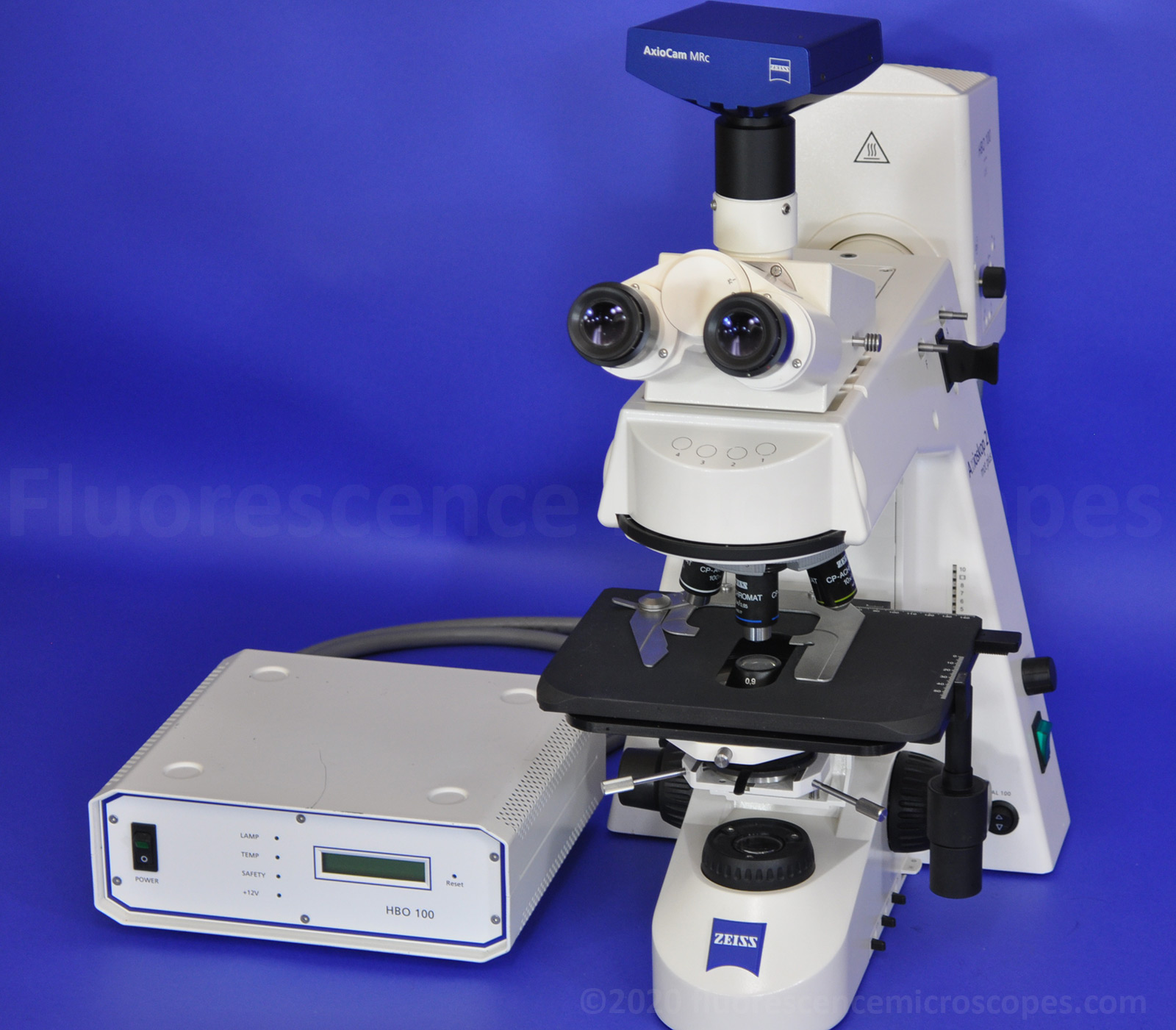

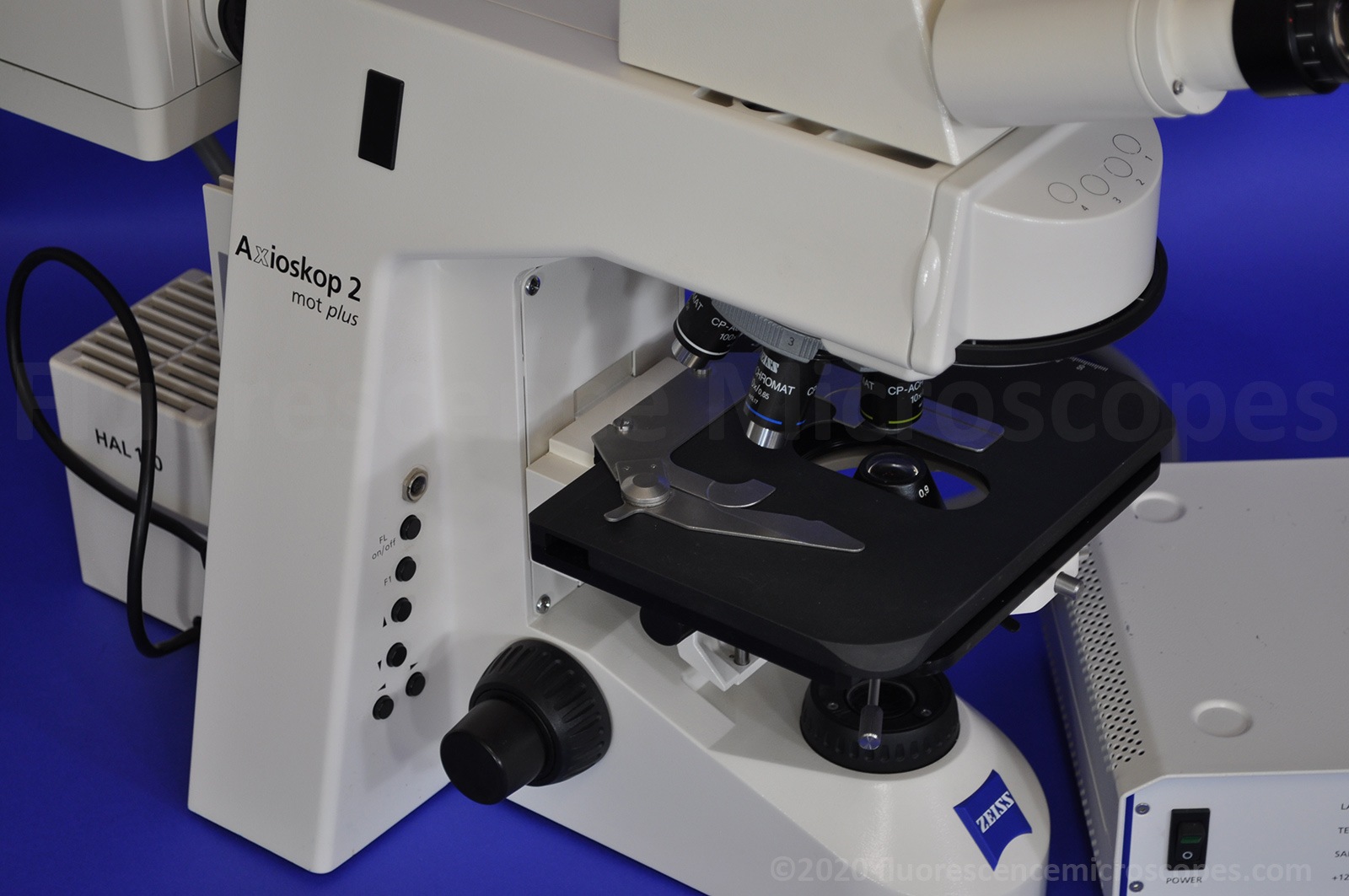

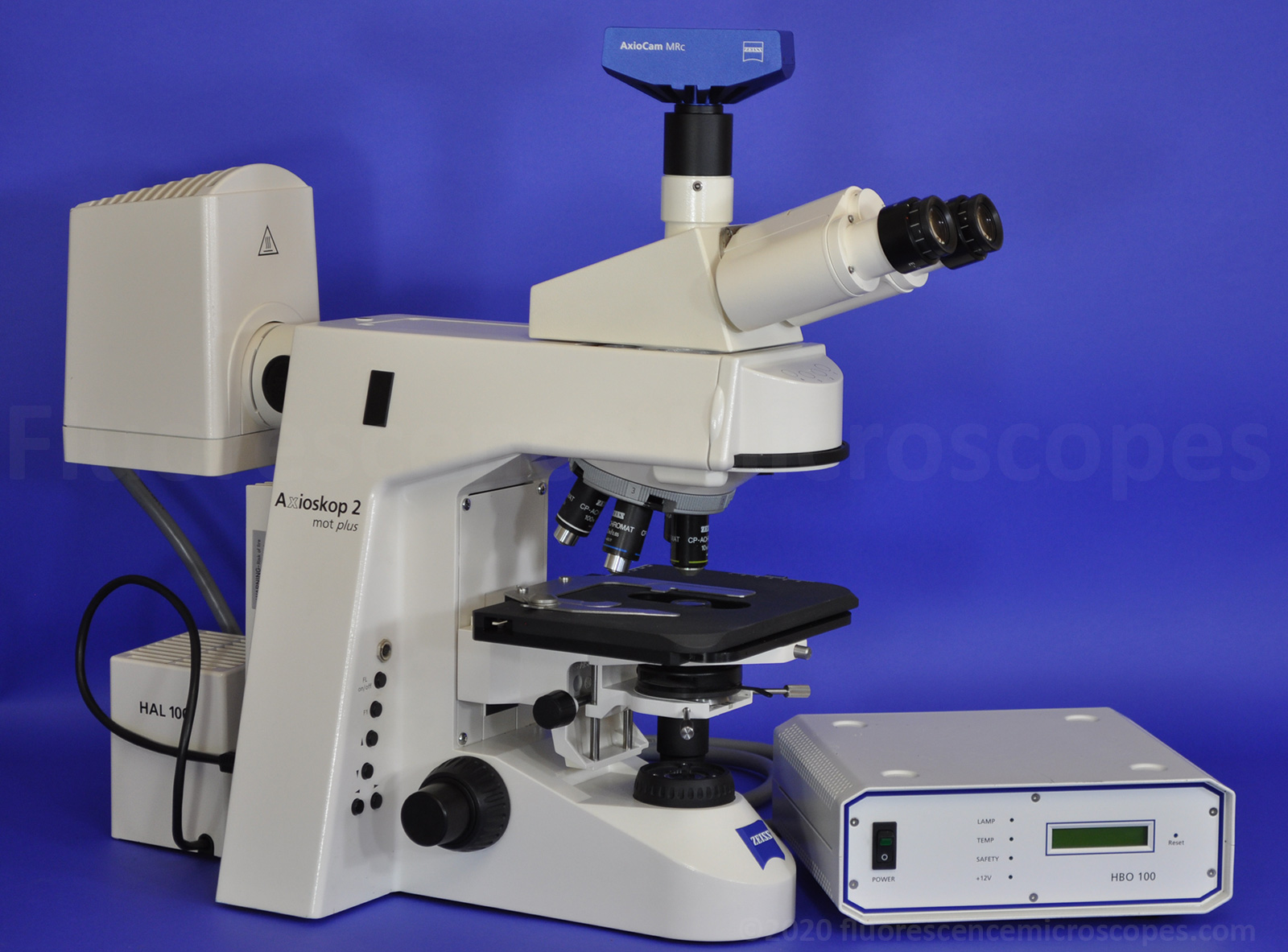

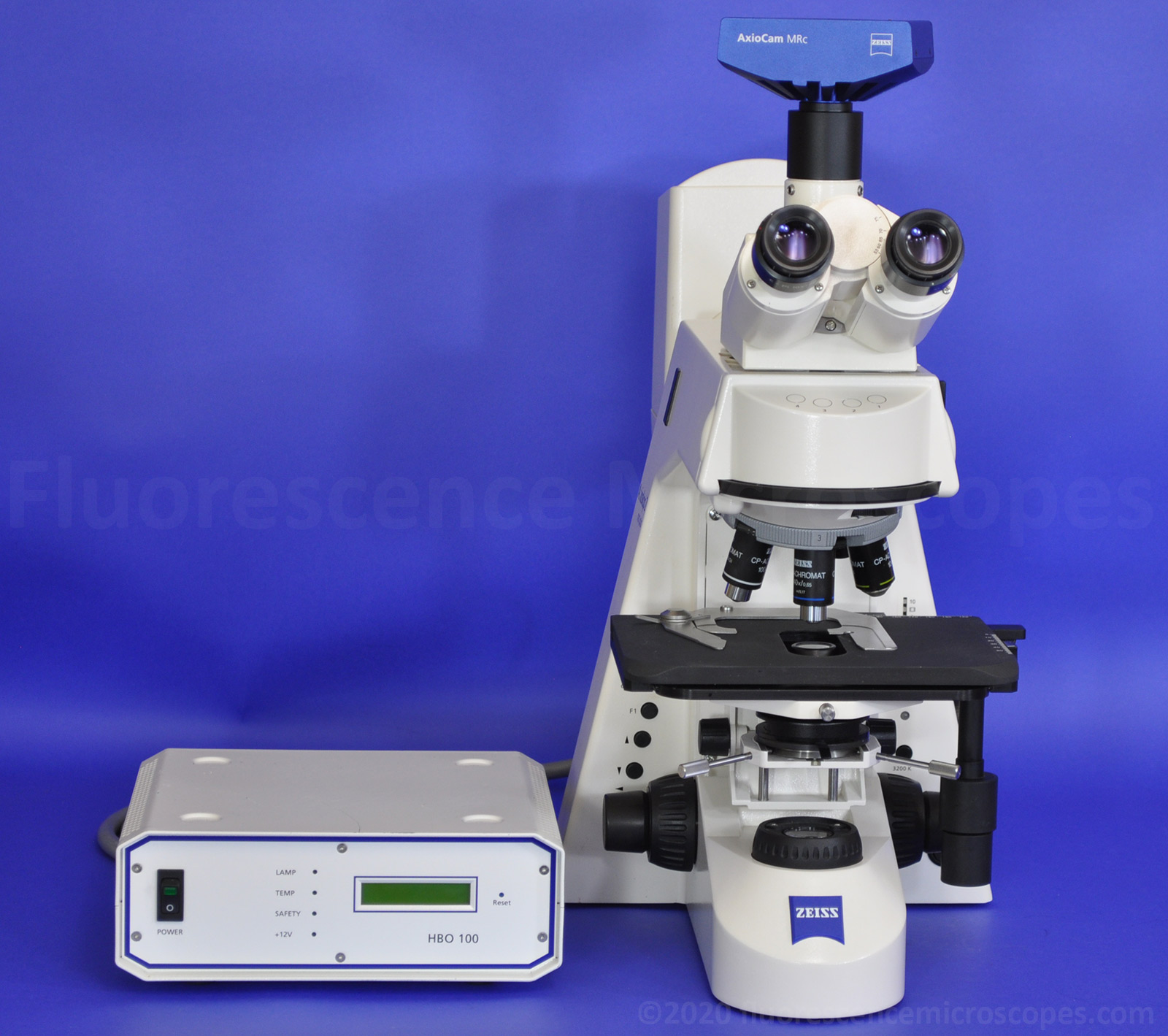

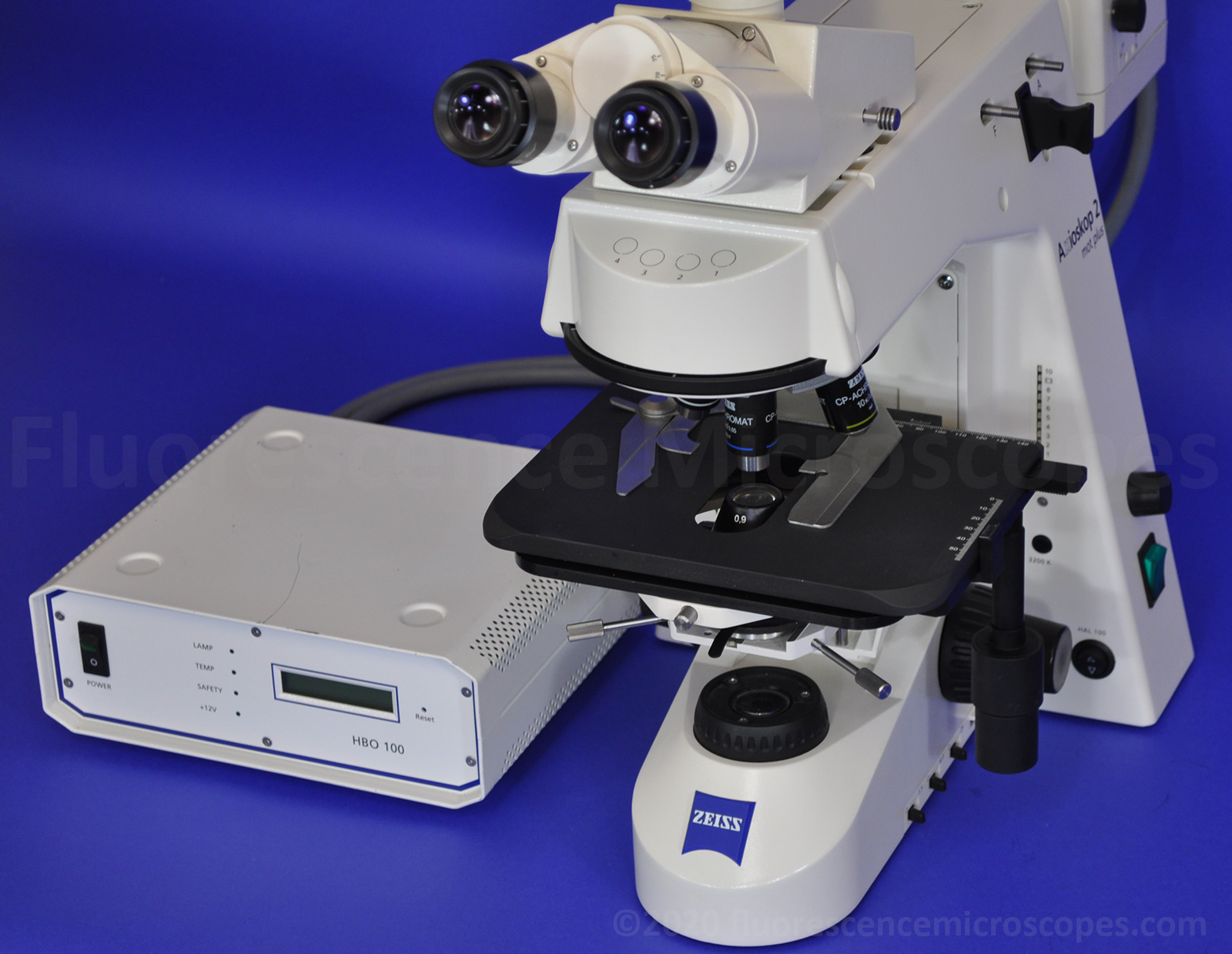

Zeiss Axioskop-2 Mot Plus
Upright - Manual Operation
Fluorescence Microscope

General Specifications:

• Brightfield transmitted illumination: 100W halogen.
• Koehler illumination was properly set.
• 3200 K button. Press this button to immediately get 3200 K color temperature.
• Eyepieces: Pl 10X /20.
• Automatic Voltage Selection. Capable of worldwide voltage.
• XY right-hand mechanical stage with slide movement fingers.
• RS-232 Port. We connected a computer to this frame and it worked properly with good communication.

Motorized Frame:

• Motorized Course and Fine focusing.
• Motorized Load/Work stage movement allowing stage to be quickly lowered with the press of one button, then move back into place by pressing another button. This allows slides and objectives to be easily changed.
• Motorized Features: Reflector Turret rotation.
• Manual rotation of Objective Nosepiece.
• Head with Photography Capability:
• Photography capable head. Has a port on the top where the camera can be attached. Has a pull lever allowing 100% light to eyepieces or 100% light to camera.

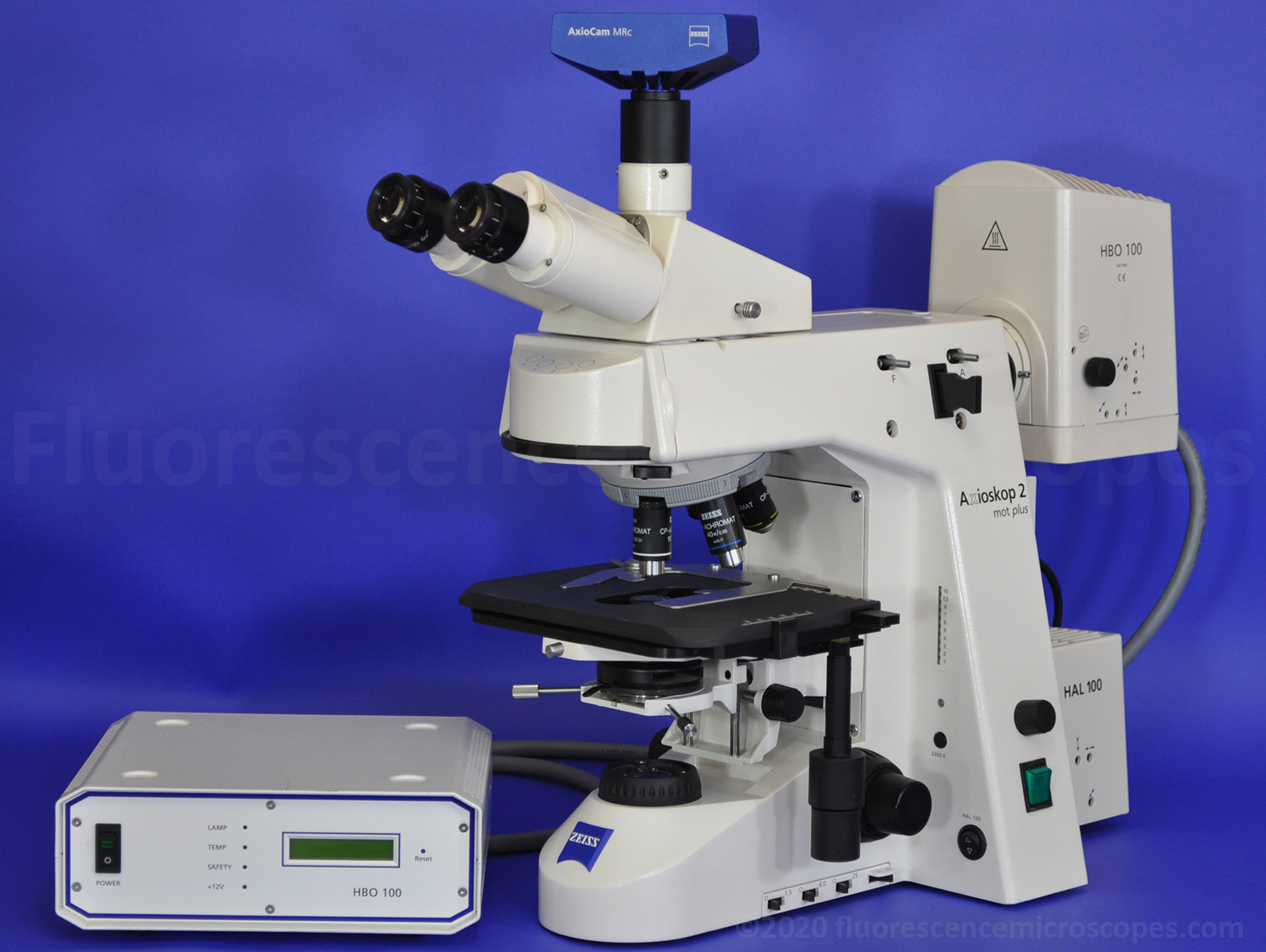

• Does not include a camera or c-mount. That is only shown to demonstrate how one can be connected.

Condenser:

• Numerical Aperture  0.9 N.A.

Fluorescence Microscopy:

• We tested the fluorescence system. Everything performed properly.
• Field Aperture and Field Diaphragm on incident illumination path.
• HBO 100 Fluorescent Illuminator. Includes bulb.
• Shutter slider.
• Dichroic Filter Cube:  Includes FITC dichroic filter cube.  All other spaces are empty.
• 5-Place Reflector Cube Turret. If you notice the front of the plastic cover, it only shows a 4-place diagram, but that is not correct. That plastic cover is from a different unit.

Objectives Lenses:

• 5-Place DIC objective nosepiece with RMS thread.

Includes these objectives:

• CP-Achromat 5x/0.12  ∞/- Objective.
• CP-Achromat 10x/0.25 Infinity Objective.
• CP-Achromat 40X/0.65 ∞/0.17 Objective.
• CP-Achromat 100x / 1.25.  Infinity /0.17 Oil Immersion Objective.

Comments:

• We refurbish and repair fluorescence microscopes. We went through this microscope to get it in good shape for you.
• We are including the necessary tools to assemble.
• Our price is incredibly low. Even a piece of junk Chinese made microscope, new, is going to cost more than this precision German-made instrument. The quality of this Zeiss is superb. And you can upgrade to better lenses that are compatible with the frame to achieve research grade images.
• If you would like to have a camera, please let us know and we can add it into the ad. We sell the same cameras as others, for much less.
• Upon purchase, we will email links to the user manuals / instructions.
