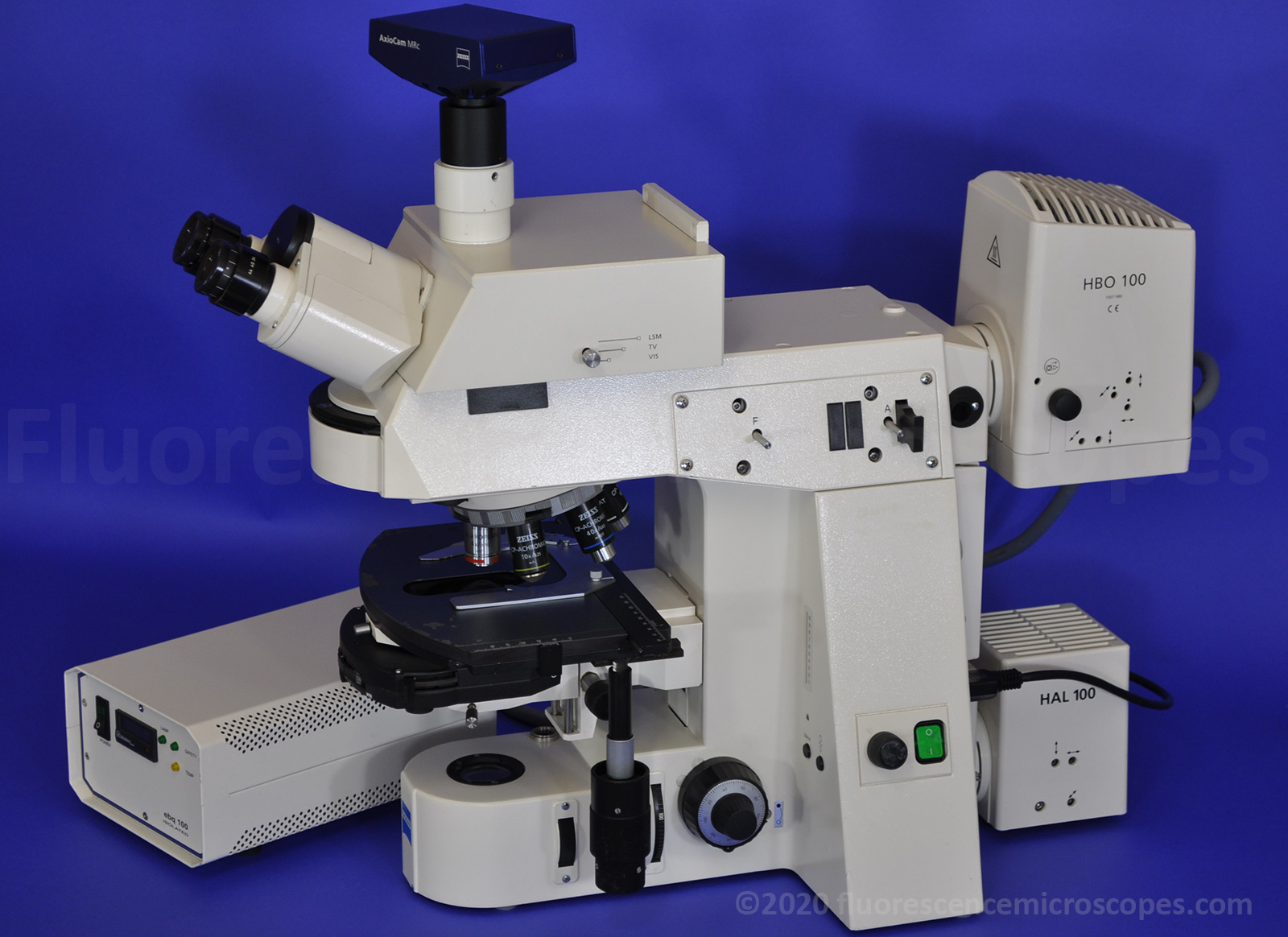

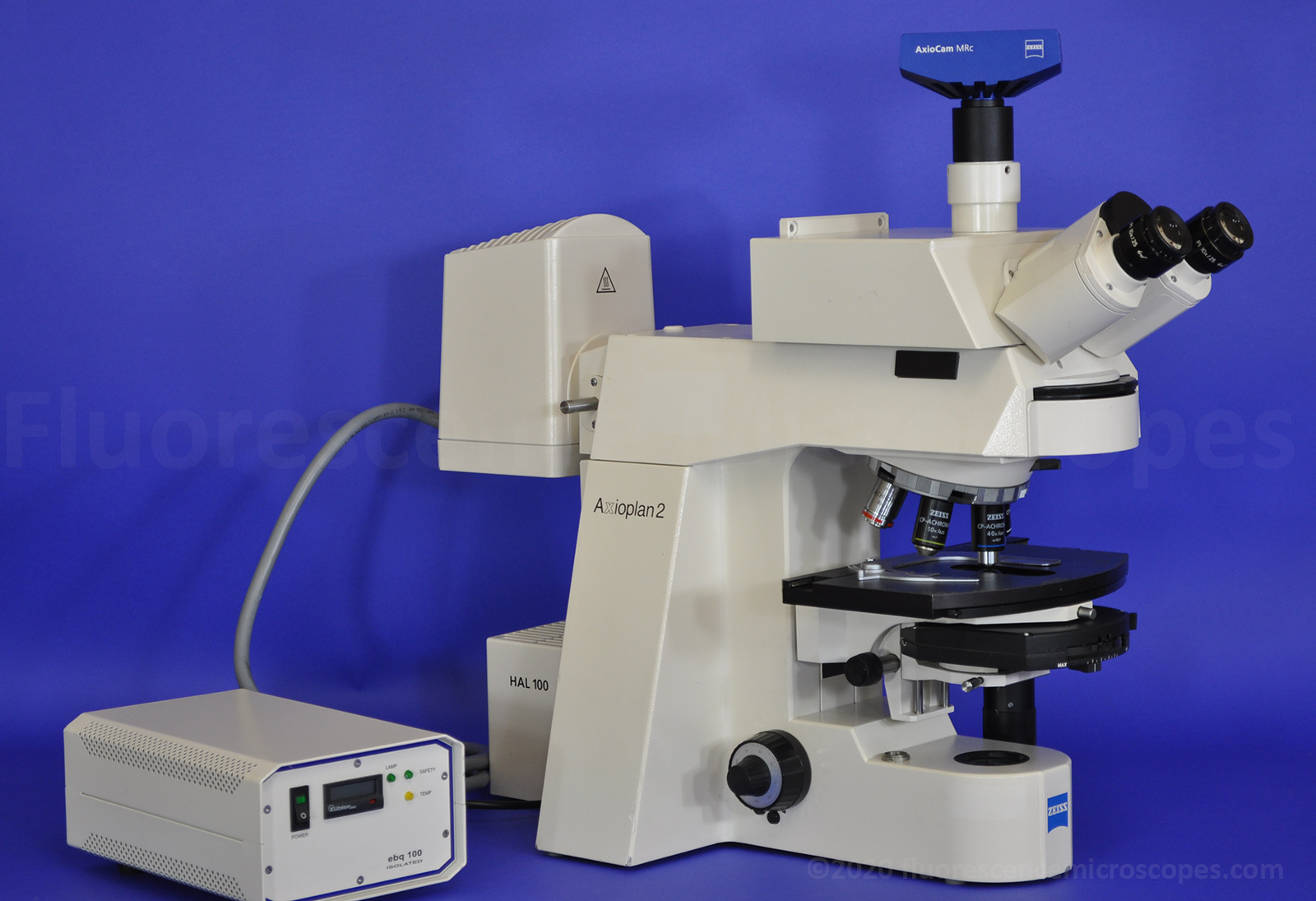

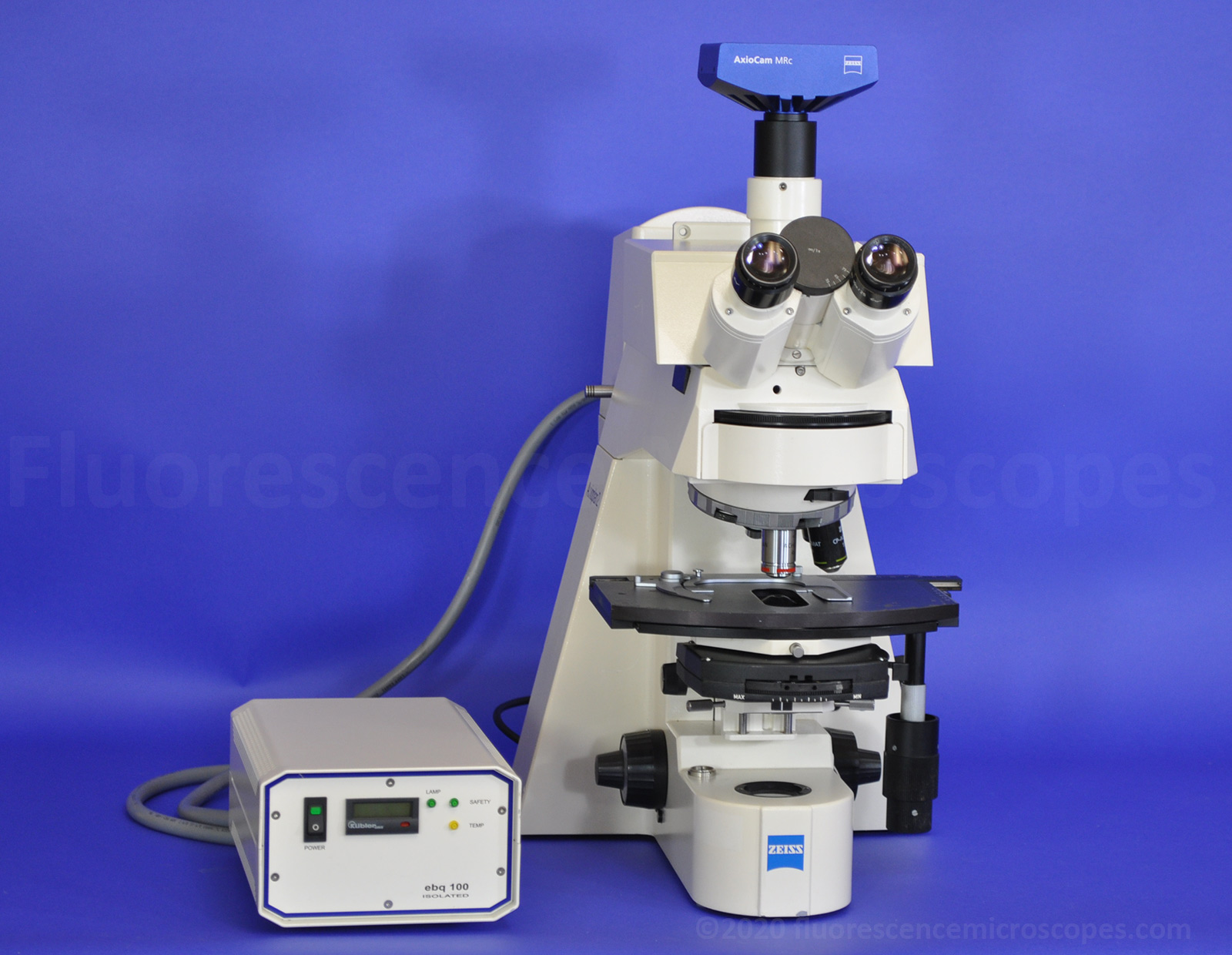

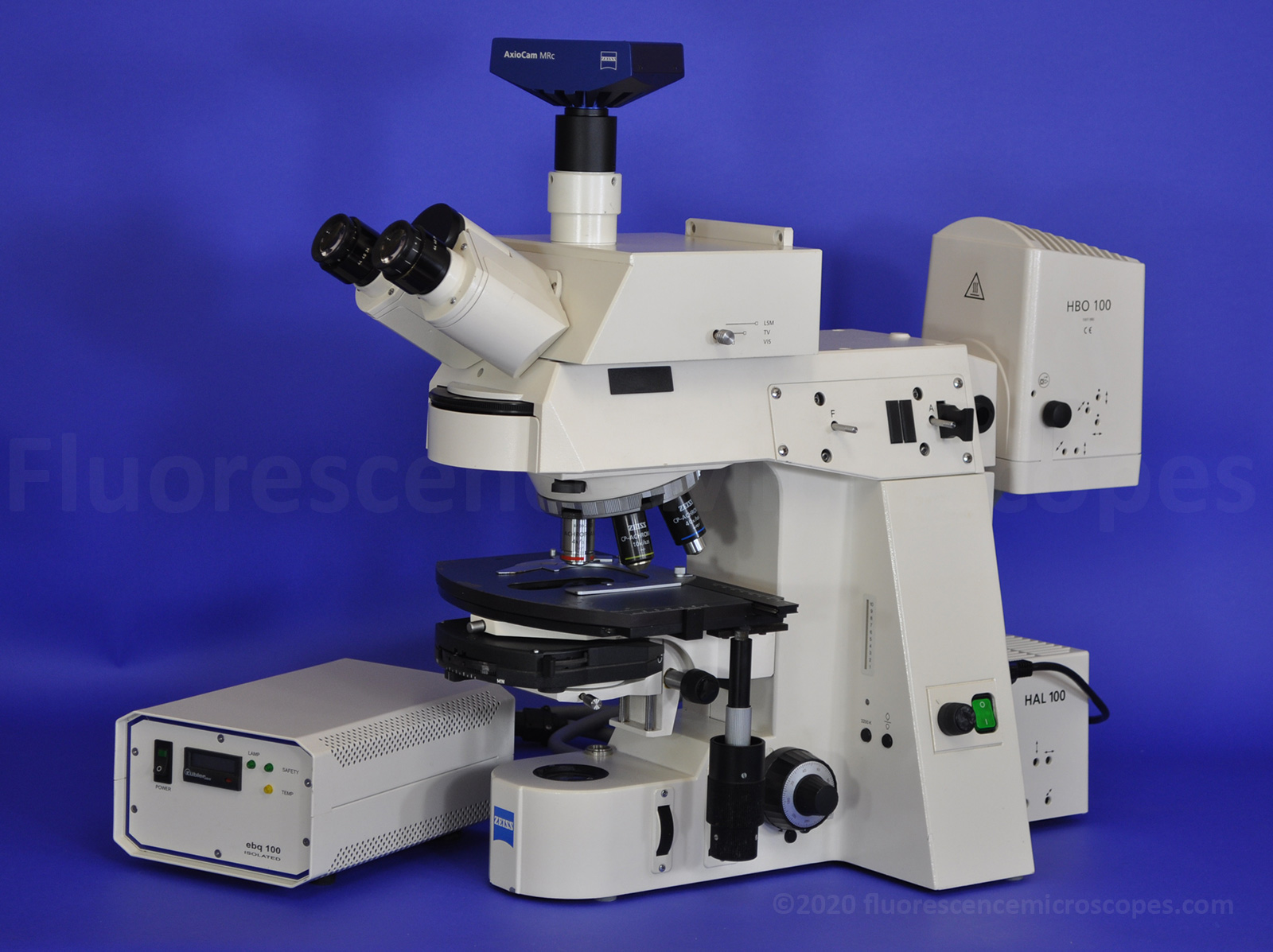

Zeiss AxioPlan 2
Semi-Motorized Upright Frame
HBO 100 Illumination
5x 10x 40x 100x-Oil Objectives
Fluorescence Microscope
Refurbished - Works Great
1YR Warranty

eiss AxioPlan-2 Upright Manual Fluorescence Microscope

USD $

ITEM CODE: SKU-134
Model: Zeiss AxioPlan 2
Shipping Cost: Free USA Shipping.

SOLD

eiss AxioPlan-2 Upright Manual Fluorescence Microscopeeiss AxioPlan-2 Upright Manual Fluorescence Microscopeeiss AxioPlan-2 Upright Manual Fluorescence Microscopeeiss AxioPlan-2 Upright Manual Fluorescence Microscopeeiss AxioPlan-2 Upright Manual Fluorescence Microscopeeiss AxioPlan-2 Upright Manual Fluorescence Microscopeeiss AxioPlan-2 Upright Manual Fluorescence Microscope

General Specifications:

  • Semi-Motorized Frame.
  • Manual Features: Course and Fine focusing. Objective Nosepiece rotation.
  • Motorized Features: Reflector Turret rotation.
  • Brightfield transmitted illumination: 100W halogen.
  • Koehler illumination was properly set.
  • 3200 K button. Press this button to immediately get 3200 K color temperature.
  • Includes IR cut-off heat reflecting filter to protect internal lenses from the extreme heat.
  • Eyepieces: 10 X/25. Wide field of view.
  • Selectable voltage. 120 VAC / 240 VAC.
  • XY right-hand mechanical stage with slide movement fingers.

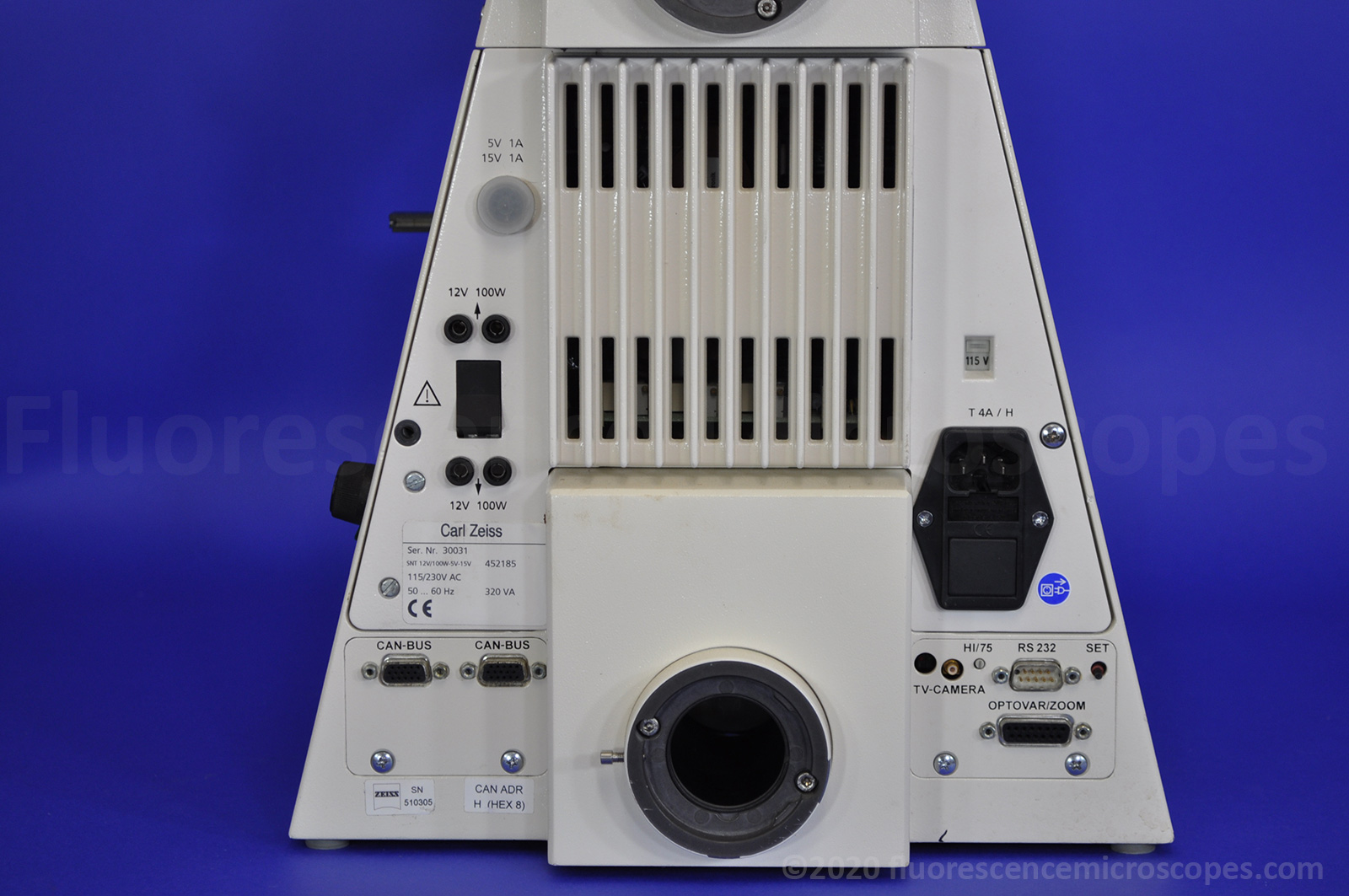

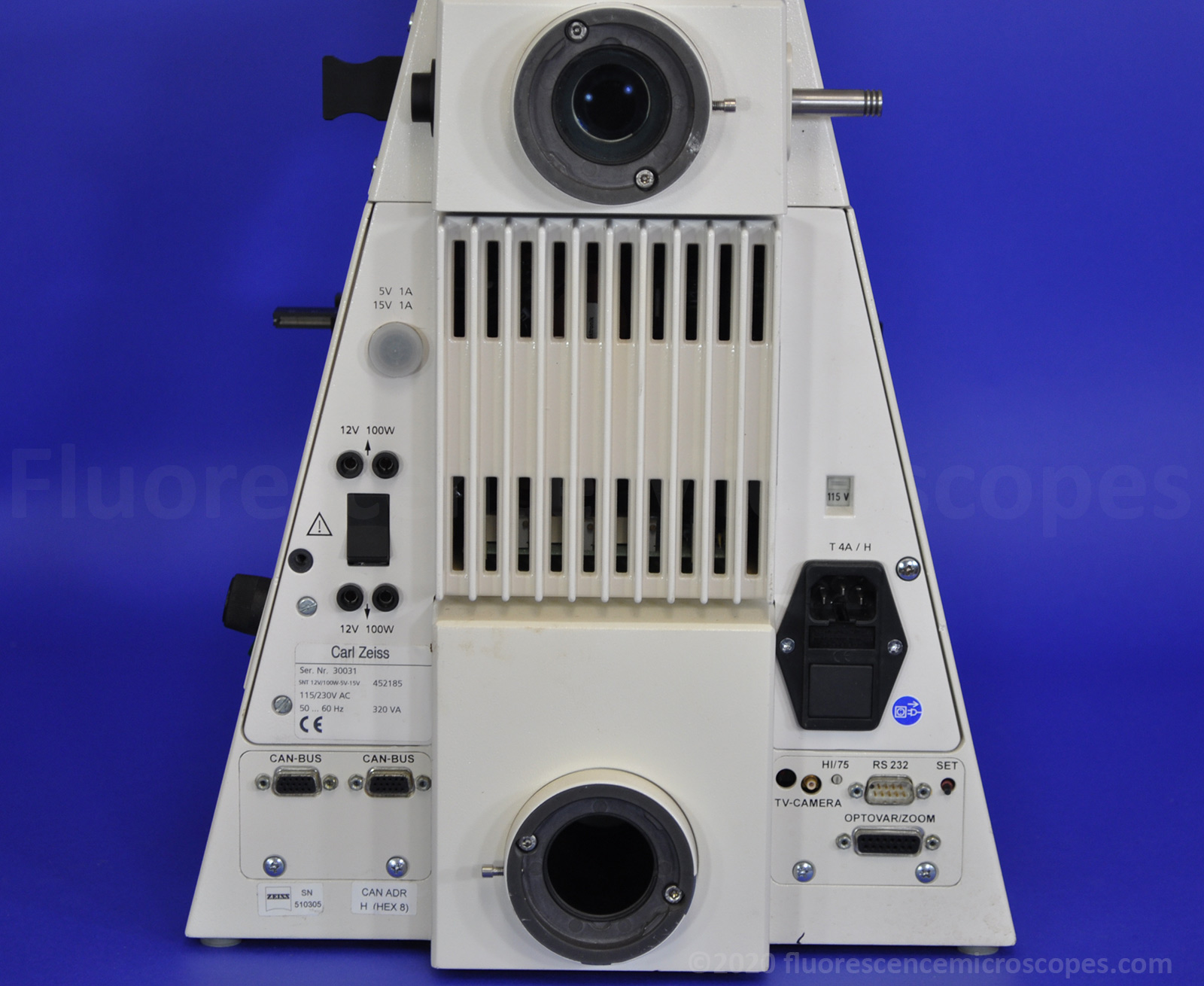

  • RS-232 Port. We connected a computer to this frame and it worked properly with good communication.

Head with Photography Capability:

  • Has dual photography ports.
  • Settings as follows: 100% eyepieces, 100% top port, 100% rear port.
  • Does not include a camera or c-mount. That is only shown to demonstrate how one can be connected.

Condenser:

  • Phase Contrast annuli: Ph1, Ph2, Ph3.
  • The objectives are not Phase Contrast, but that is all that is needed to add phase contrast microscopy.
  • Dark-field Stop.
  • Numerical Aperture 0.9 N.A.
  • Flip-top lens (for low power objectives to get full field of view).

Fluorescence Microscopy:

  • We completely tested the fluorescence system. Everything performed properly.
  • Field Aperture and Field Diaphragm on incident illumination path.
  • IR cut off filter to protect internal lenses from overheating.
  • Arc Adjustment Aid – Useful for centering bulb.
  • HBO 100 Fluorescent Illuminator.
  • Dichroic Filter Cube: Includes FITC dichroic filter cube. All other spaces are empty.

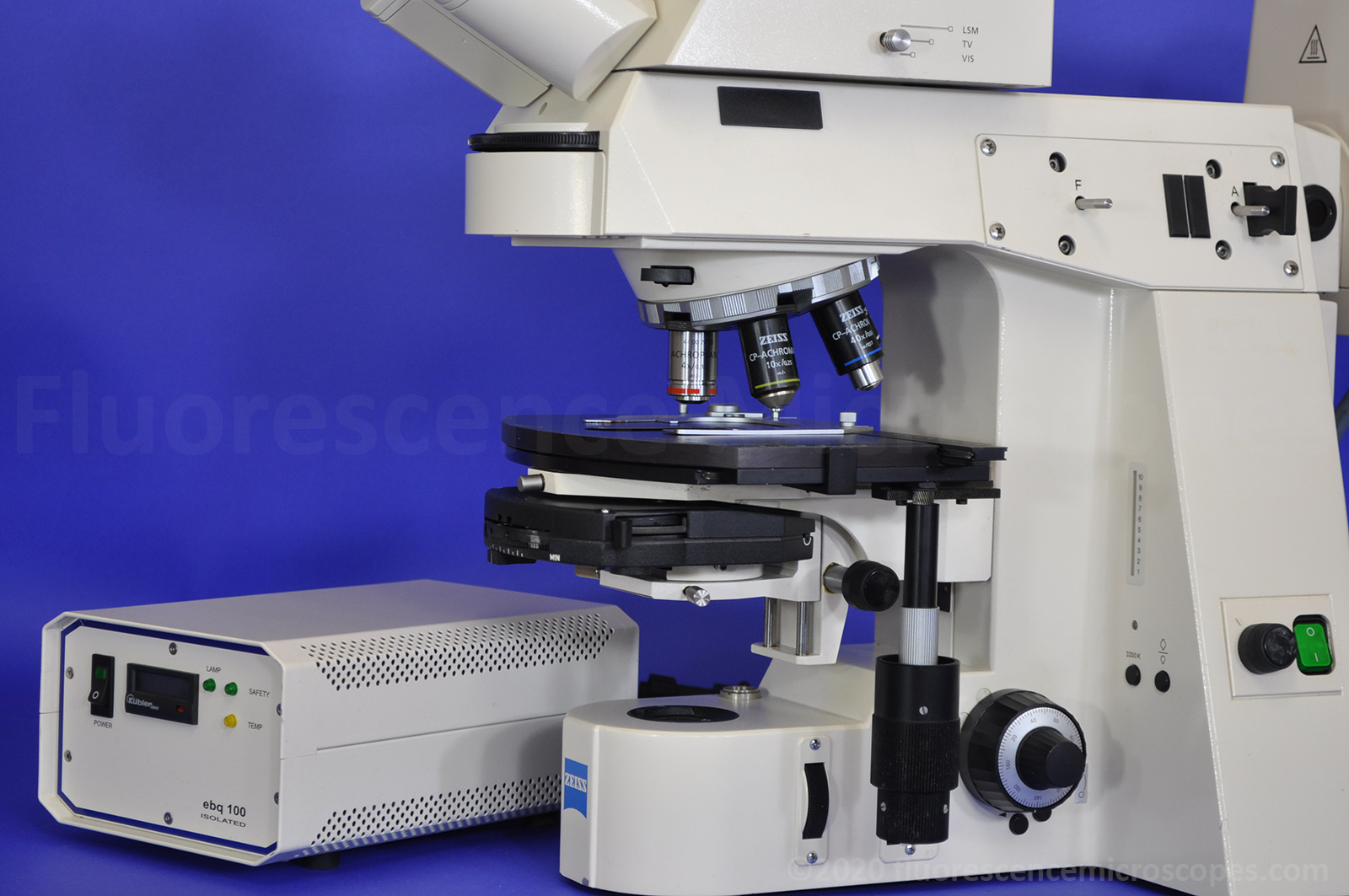

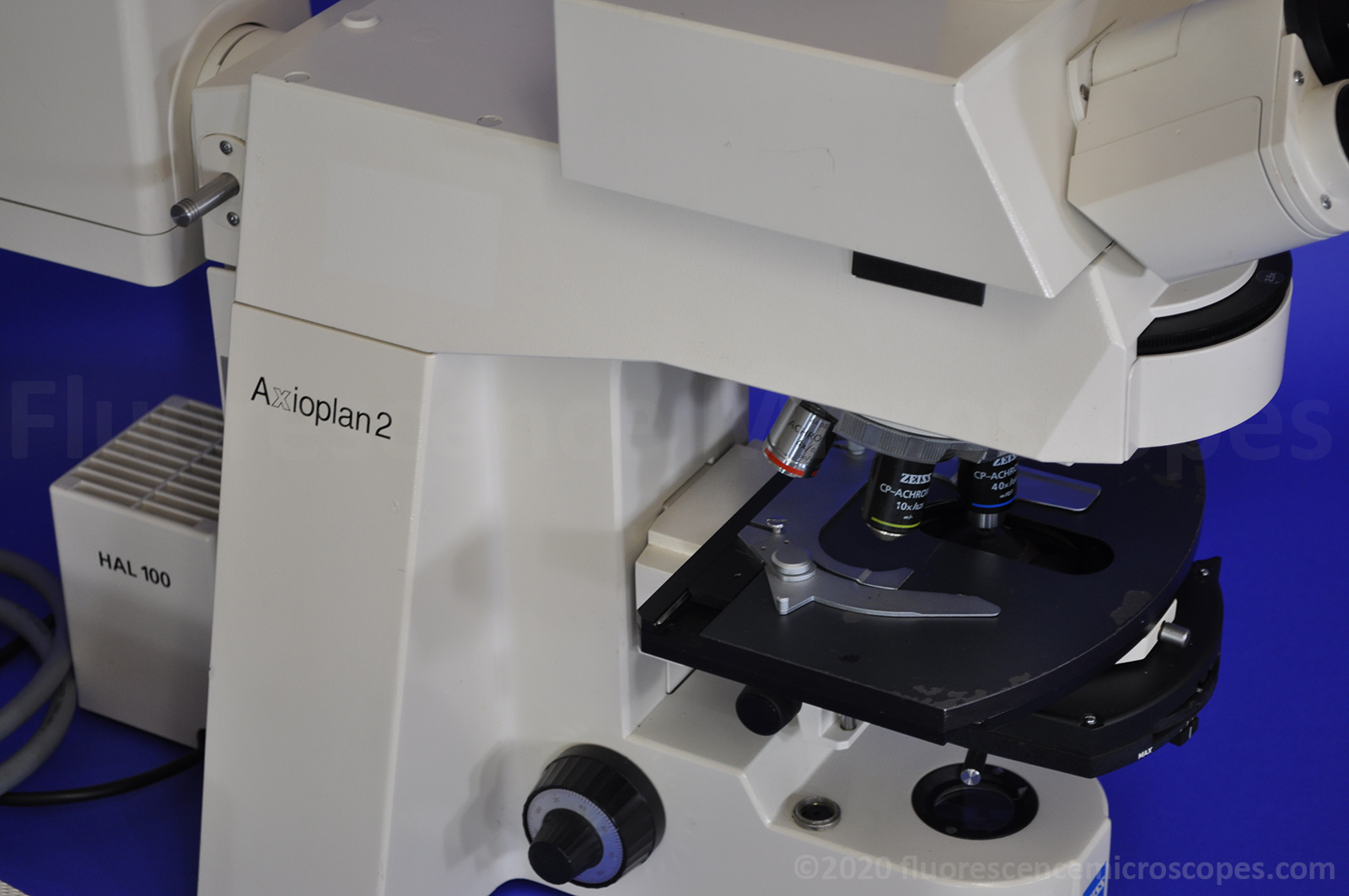

Objectives Lenses:

  • 6-Place DIC objective nosepiece with RMS thread (5) and M27 (1).
  • Includes these objectives:
  • CP-Achromat 5x/0.12 ∞/- Objective.
  • CP-Achromat 10x/0.25 Infinity Objective.
  • CP-Achromat 40X/0.65 ∞/0.17 Objective.
  • CP-Achromat 100x / 1.25. Infinity /0.17 Oil Immersion Objective.

Comments:

  • We refurbish and repair fluorescence microscopes. We went through this microscope to get it in top shape for you.
  • We are including the necessary tools to assemble.
  • Our price is incredibly low. Even a piece of junk Chinese made microscope, new, is going to cost more than this precision German-made instrument. The quality of this Zeiss is superb. And you can upgrade to better lenses that are compatible with the frame to achieve research grade images.
  • If you would like to have a camera, please let us know and we can add it into the ad. We sell the same cameras as others, for much less.
  • Upon purchase, we will email links to the user manuals / instructions.
