Product Overview:

Differential Interference Contrast
DIC Configuration: 10x. 20x. 40x. 100x.
Plan-Neofluar Objectives
HBO 100 Illuminator
Top photography port
Professionally cleaned and serviced
Camera Not Included(Line Only for auctiva mobile item description)

Main Features:

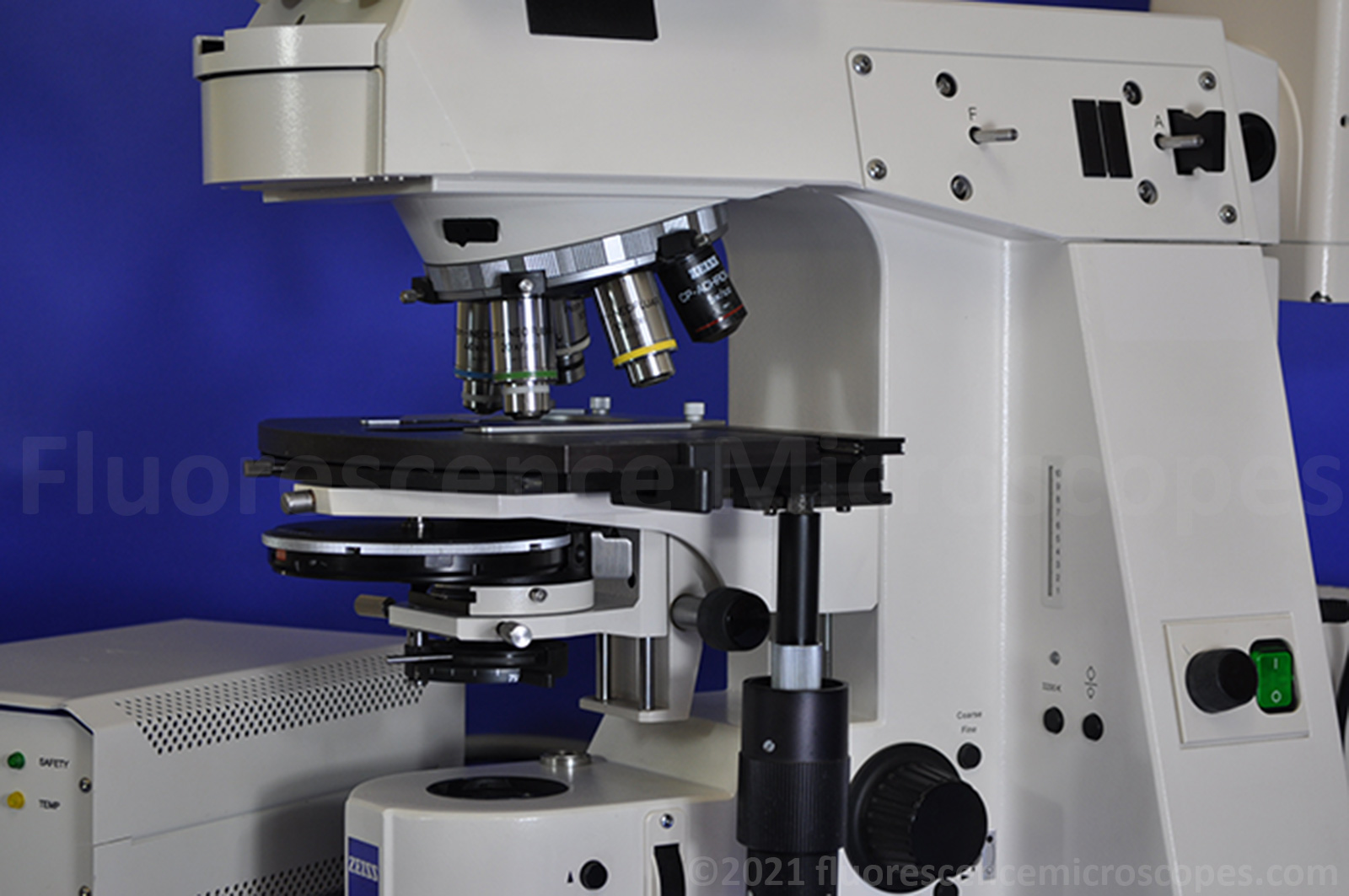

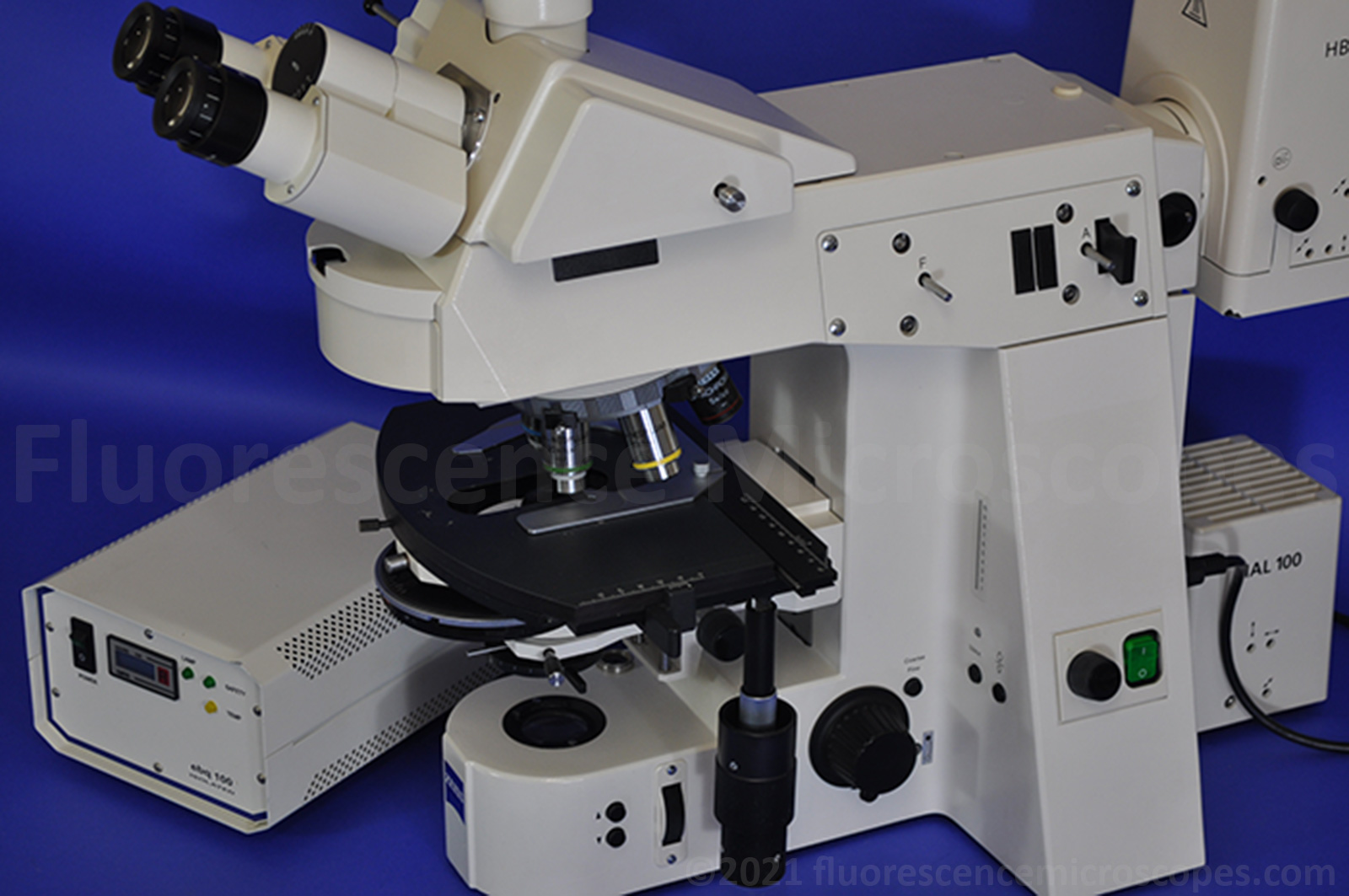

Semi Motorized Frame
DIC microscopy
Six-place objective nosepiece with the DIC openings on each
Right Hand XY stage slide movement
Trinocular photography port

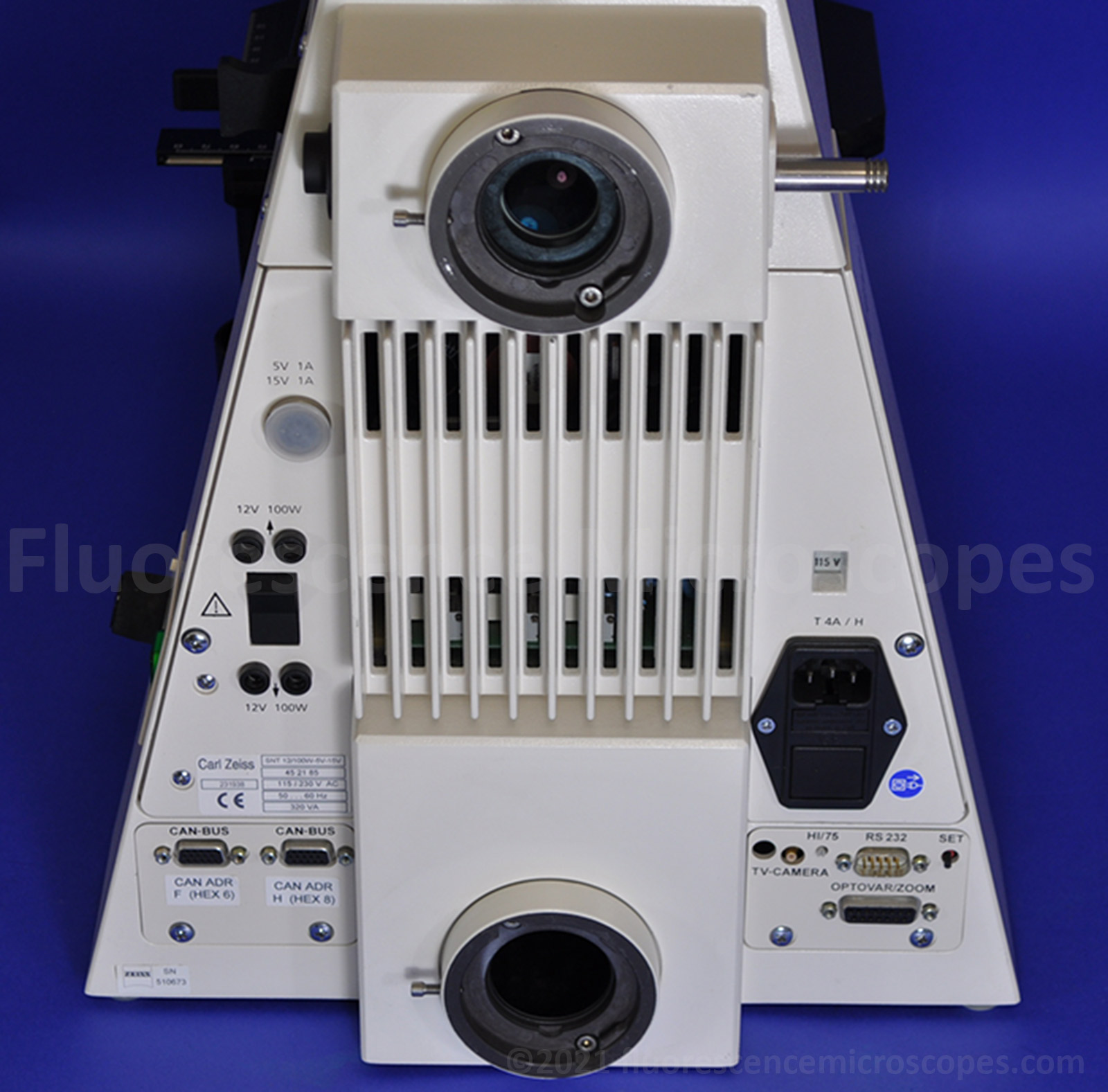

Voltage: The frame has a volt switch 115v/230v. The HBO power supply is autovolt.

Motorization:

Semi-motorized frame
Motorized focusing system for ease-of-use
Motorized reflector cube turret
Manually rotated objective nosepiece
Manually rotated transmitted light filter wheels and field iris diaphragm
Electronic fluorescence shutter with control button.

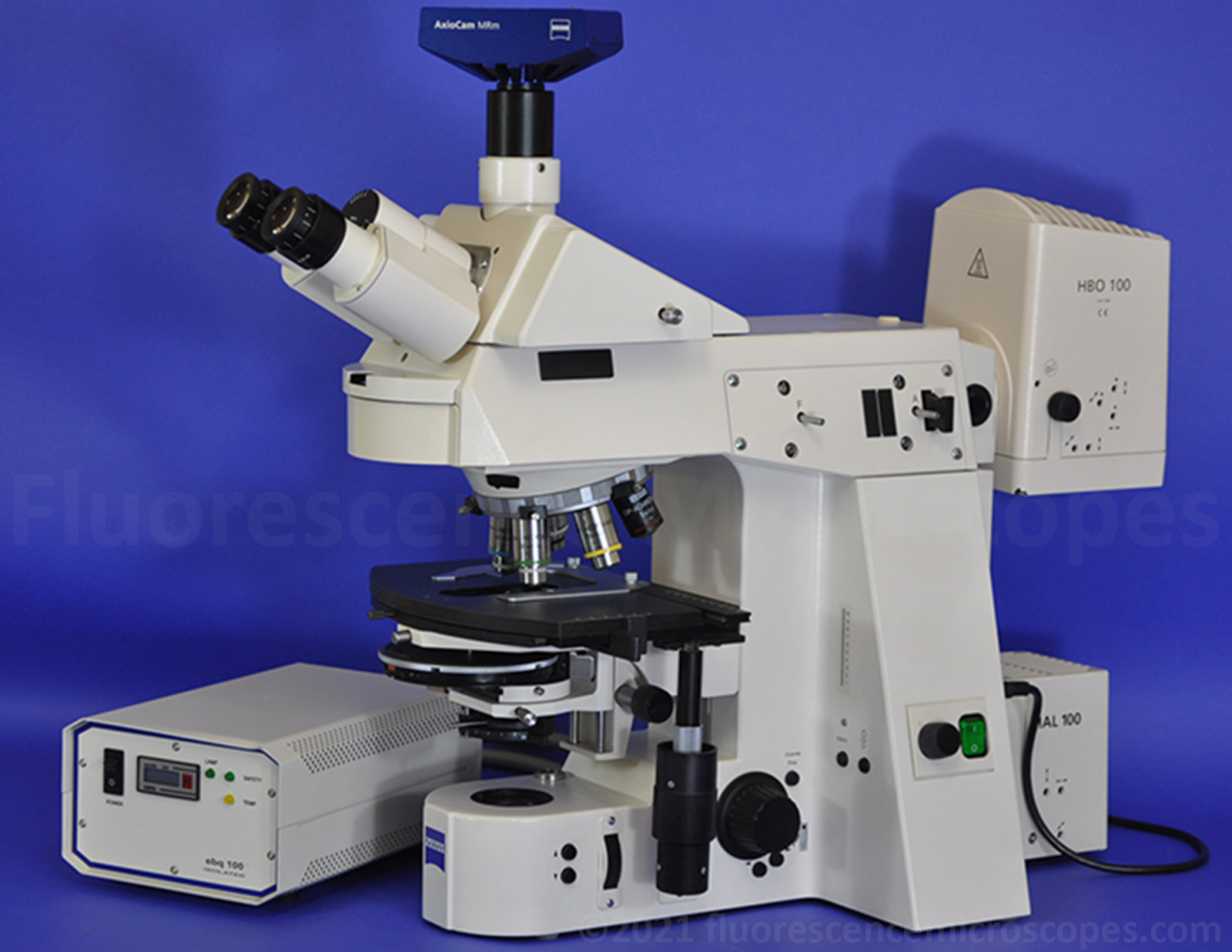

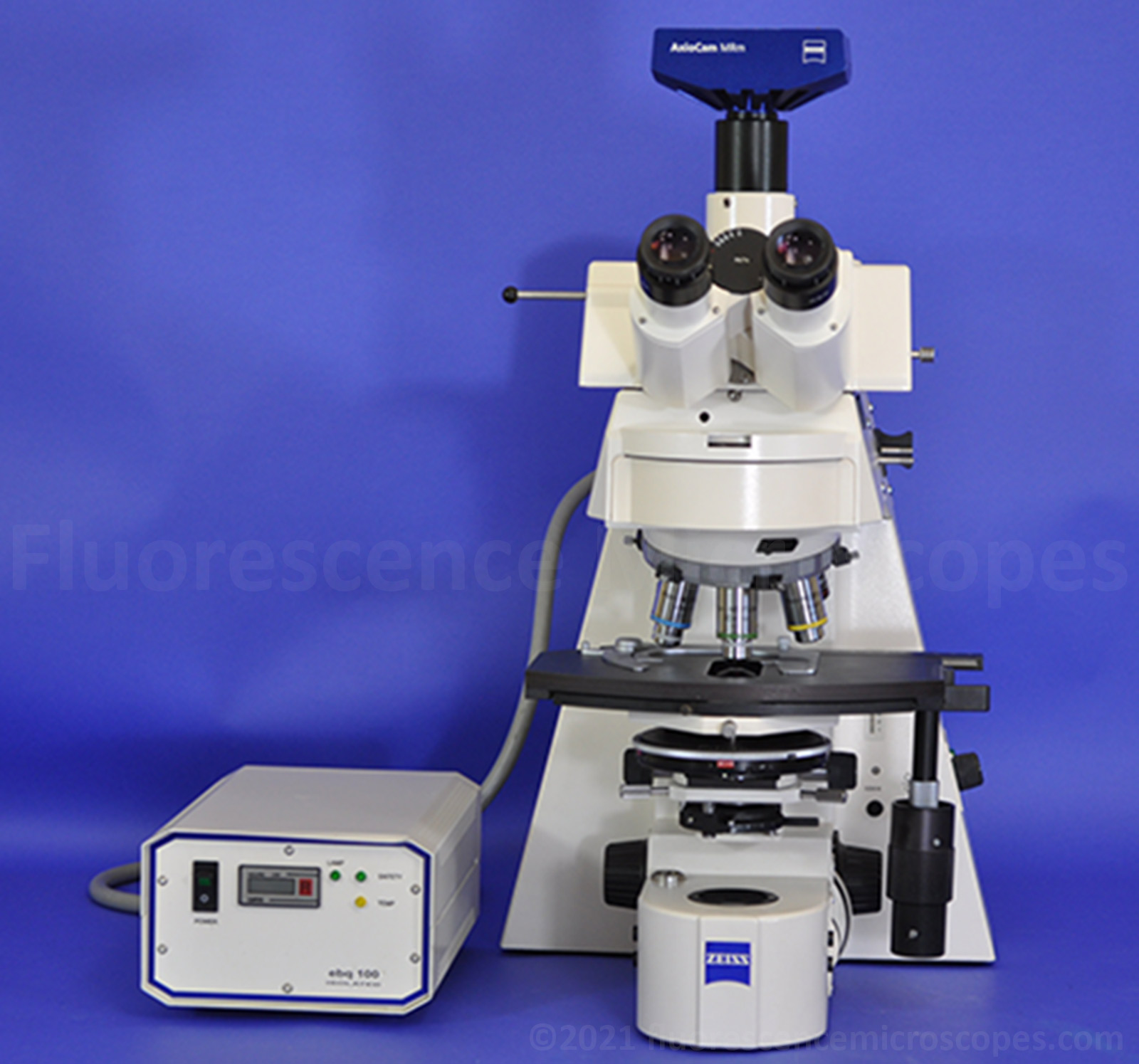

Trinocular Head – Photography Capable:

Photo port on top of head
Capable of 100% light to eyepieces, 100% to photo port, or split
Ability to shut out extraneous light from the eyepieces that may enter the camera optics
Eyepieces: Pl 10x/25 pair with diopters on both. Excellent 25mm field of view. Better than the standard 23mm
C-mount attachment for camera is included
DOES NOT INCLUDE CAMERA. Camera is shown in images to demonstrate that one can be connected.

Differential Interference Contrast – DIC Microscopy:

DIC Magnifications: 10x. 20x. 40x. 100x
All DIC with Plan-Neofluar Objectives
We tested the DIC on all configured magnifications and obtained excellent textbook quality relief type images for each. Everything works as it was designed to

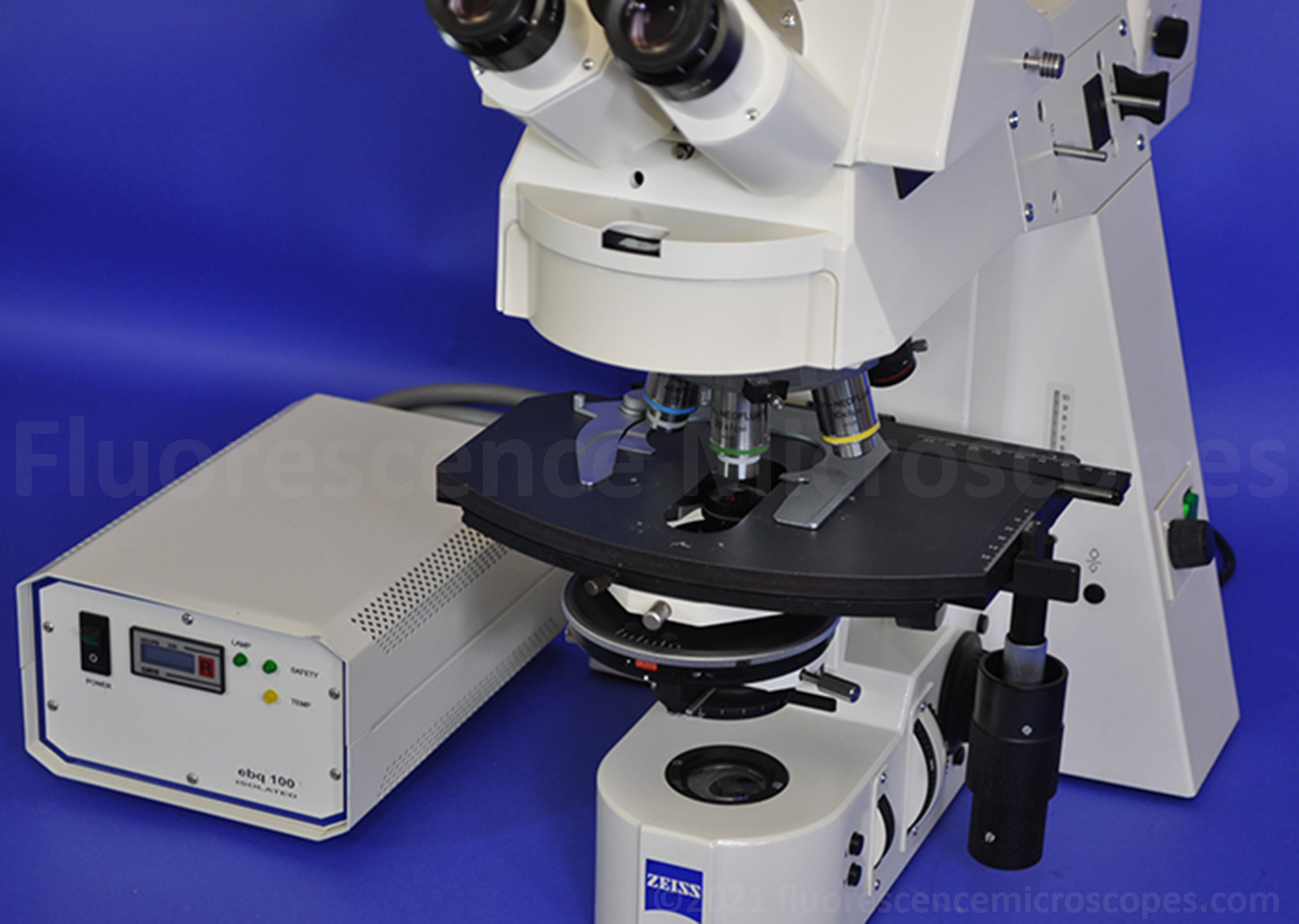

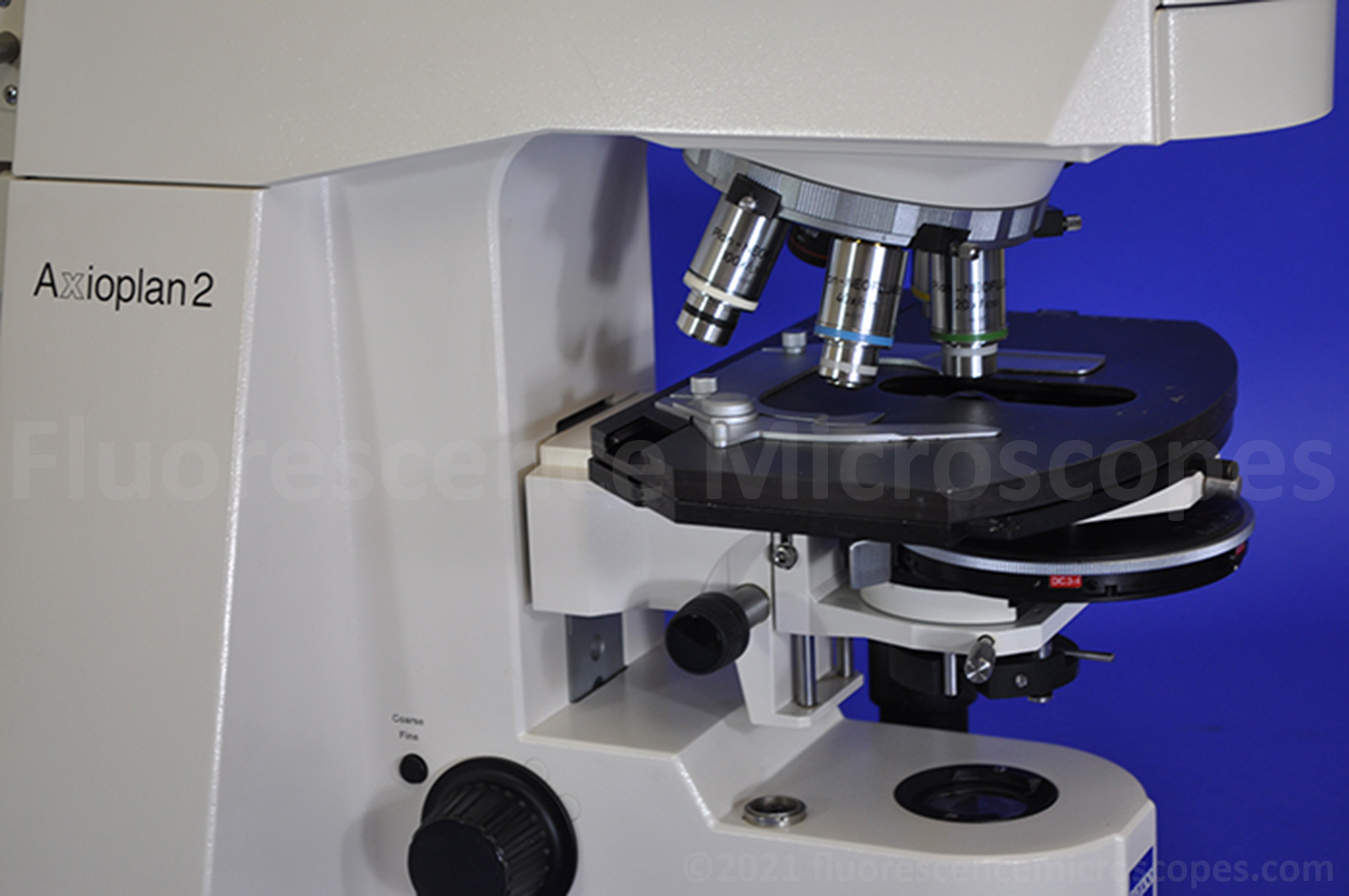

The mechanical stage is the DIC version capable of rotating. This is important for optimizing the DIC images
DIC is a microscopy technique that gives relief-like images, especially with thick specimens. The 3D effect enhances visualizing structures in thick specimens better than phase. Thick specimens normally are not imaged well in phase contrast. This microscope is capable of imaging in relief or pseudo darkfield, depending on how you adjust it.

Fluorescent Illumination:

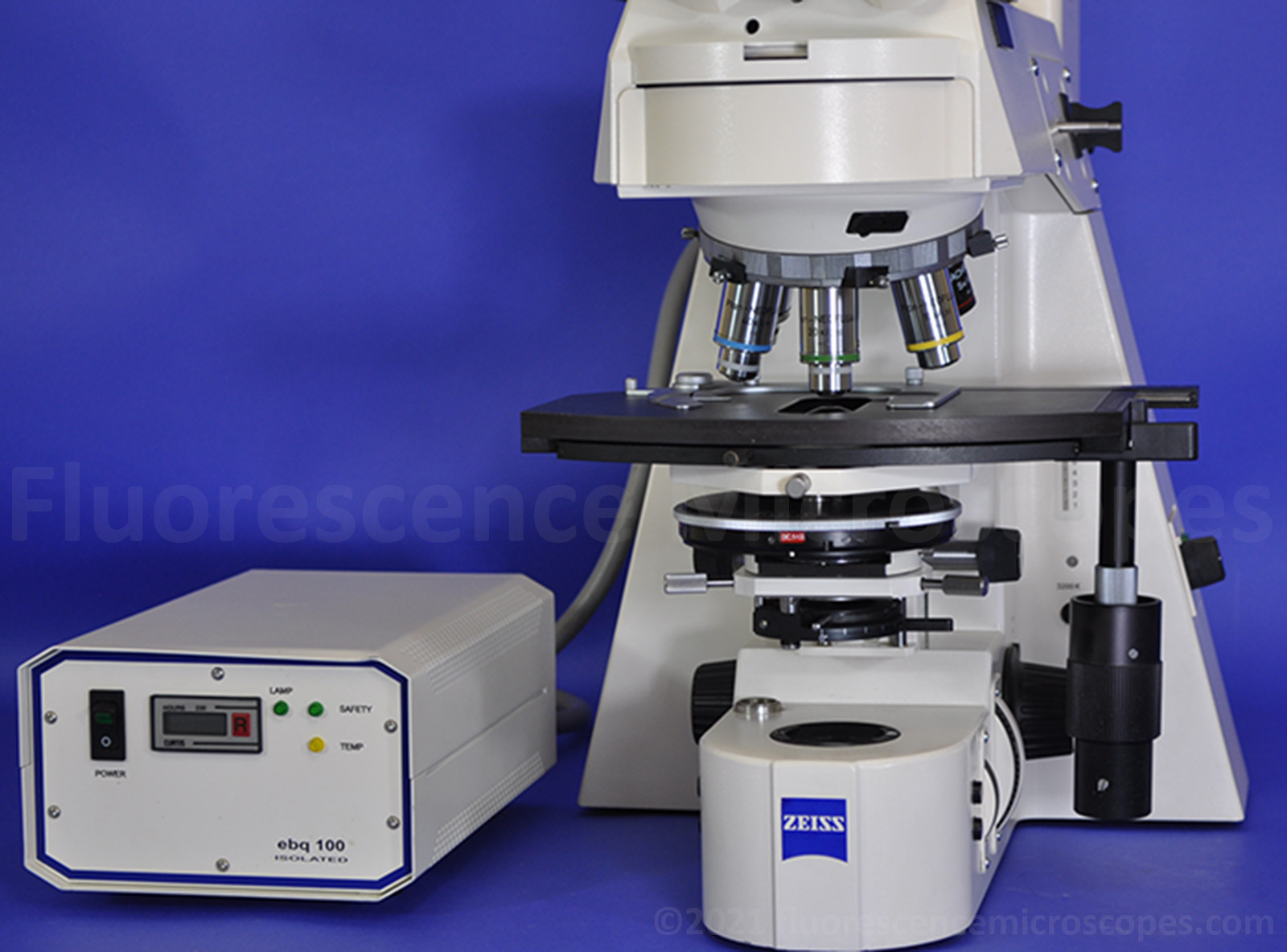

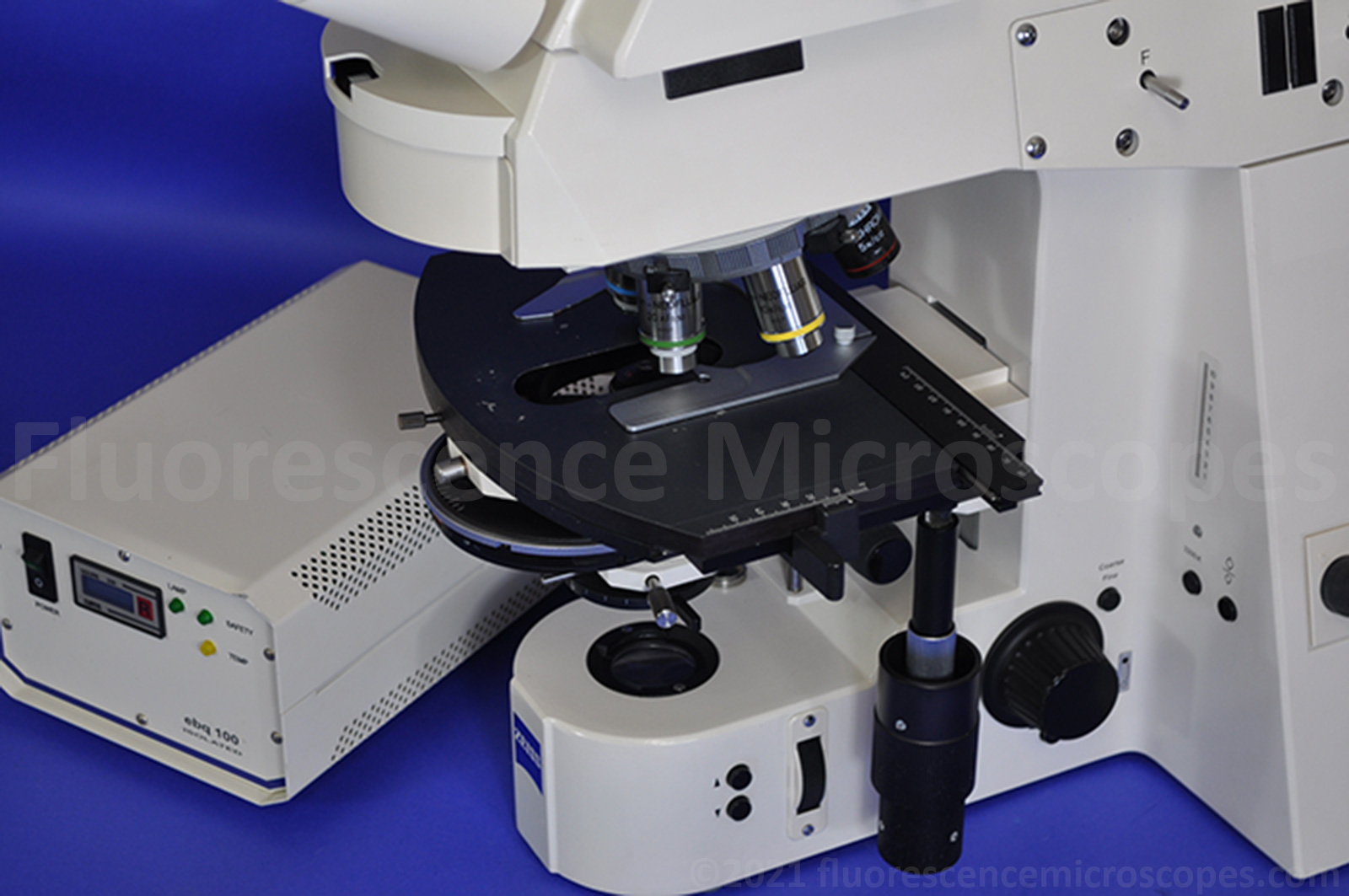

HBO 100 Lamp Housing and External Power Supply with included 100W Mercury Bulb
Field Iris Diaphragm
Aperture Iris Diaphragm
The Iris diaphragms were properly centered
Electronic internal shutter to cut off the fluorescence illumination
Manual shutter slider
IR heatshield (epi-illumination light path) is properly installed in the epi port to protect internal optics
Includes an additional IR filter on the shutter slider for added protection, This is specifically used to reduce photo bleaching of the fluorescent specimen. Proper optical alignment was achieved in the epi illumination light path
Arc alignment viewing aid is included.

Fluorescence Dichroic Filters:

5-Place reflector module cube turret
Dichroic Sets: DAPI, FITC, TRITC
Includes blockers on empty positions for UV protection

Transmitted Illumination:

Halogen Illumination: 12V-100W
Includes two spare bulbs
Rotary Turret style light Condenser: 0.9 N.A.
Filter Wheel (Rear): (manually operated). Daylight blue color correction, Green, Neutral Density ND 6
Filter Wheel (Front): (manually operated). Neutral Density ND 1.5, 6, 25
Koehler Field Iris Diaphragm. (manually operated)
Koehler Illumination was properly achieved
IR heatshield (transmitted light path) is properly installed to protect internal optics
Frosted diffuser filter is properly installed
3200 K Illumination Setting Button
Has ability to do cross polarization to increase imaging contrast. Includes polarizer and analyzer. Polarizer rotates for adjustment of precise optical alignment.

Objective Lenses:

Includes the higher grade Plan Neofluar objectives
5x. CP-Achromat 5x / 0.12. ∞/-
10x. Plan-Neofluar 10x / 0.30. ∞/-)
20x. Plan-Neofluar 20x / 0.50, ∞/0.17
40x. Plan-Neofluar 40x / 0.75. ∞/0.17
100x. Plan-Neofluar 100x / 1.30, Oil Immersion, ∞/0.17.

Comments:

This microscope is in great condition
It also has all the tools included for proper assembly and disassembly
Includes all needed power cords

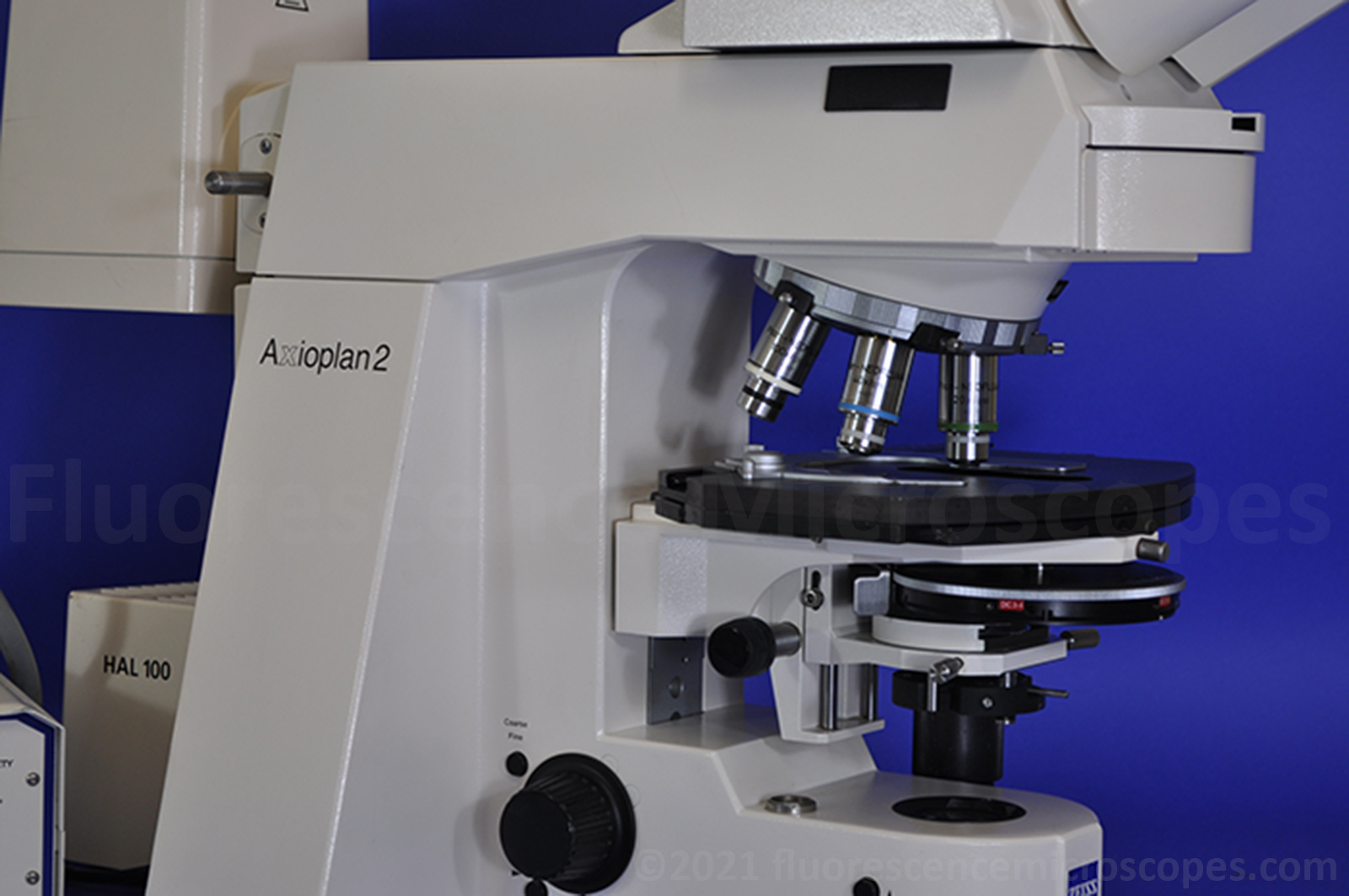

This is a high quality Zeiss (Made in Germany) optical instrument.

Optional Accessories:

We have a wide variety of optional scientific cameras, both monochrome and color, with and without Peltier cooling.

Good Value:

When comparing prices, keep in mine the extras that we are providing
We are including a one year warranty, money back guarantee, and free shipping that are value added additions not given by most resellers
We have carefully refurbished this item and completely tested all functionality. Everything is working well and as designed

User Manual and Instructions:

Upon purchase, we will email links to the user manuals / instructions.
