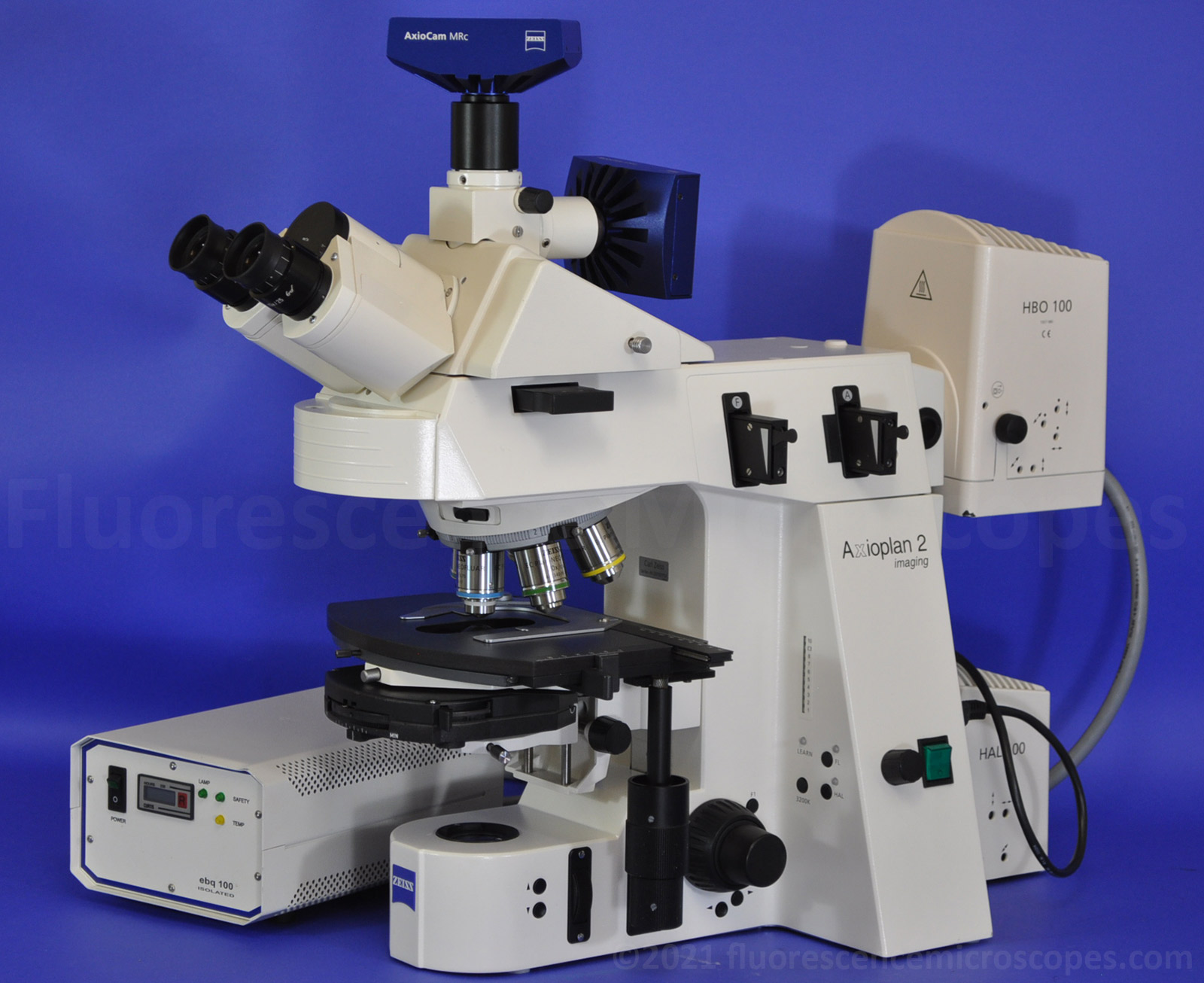

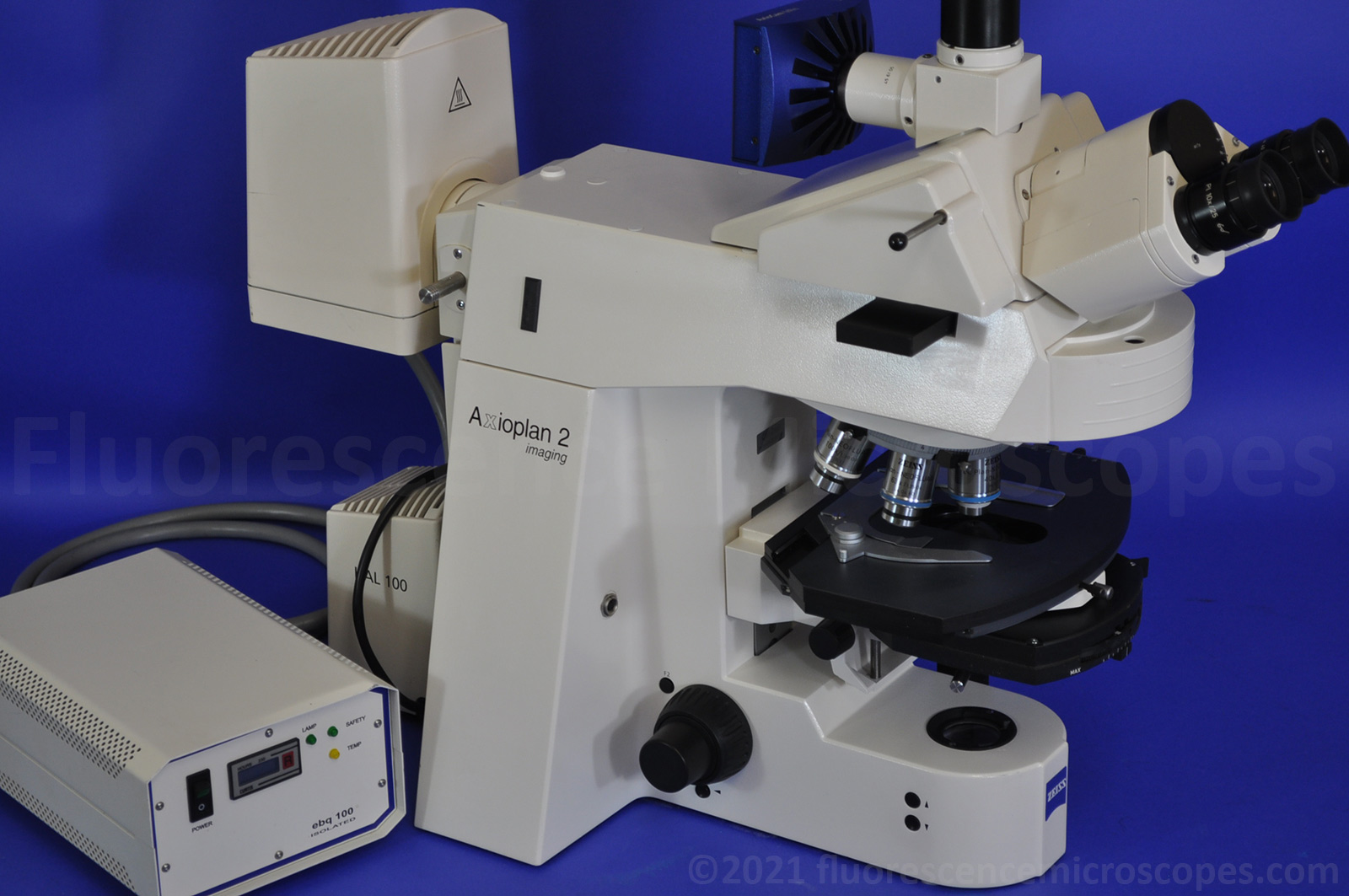

Product Overview:

Loaded – Differential Interference Contrast
DIC: 10x
DIC: 20x
DIC: 40x
DIC: 63x
DIC: 100x

Plan-Neofluar Objectives: 10x/20x/40x//63x/100x.

Dark-field microscopy.
Transmitted Filter Wheels.
HBO 100 Illuminator.
Photography capable with dual port system.
Camera Not Included. (Line Only for auctiva mobile item description)

Main Features:

Fully motorized frame.
Differential Interference Contrast (DIC)

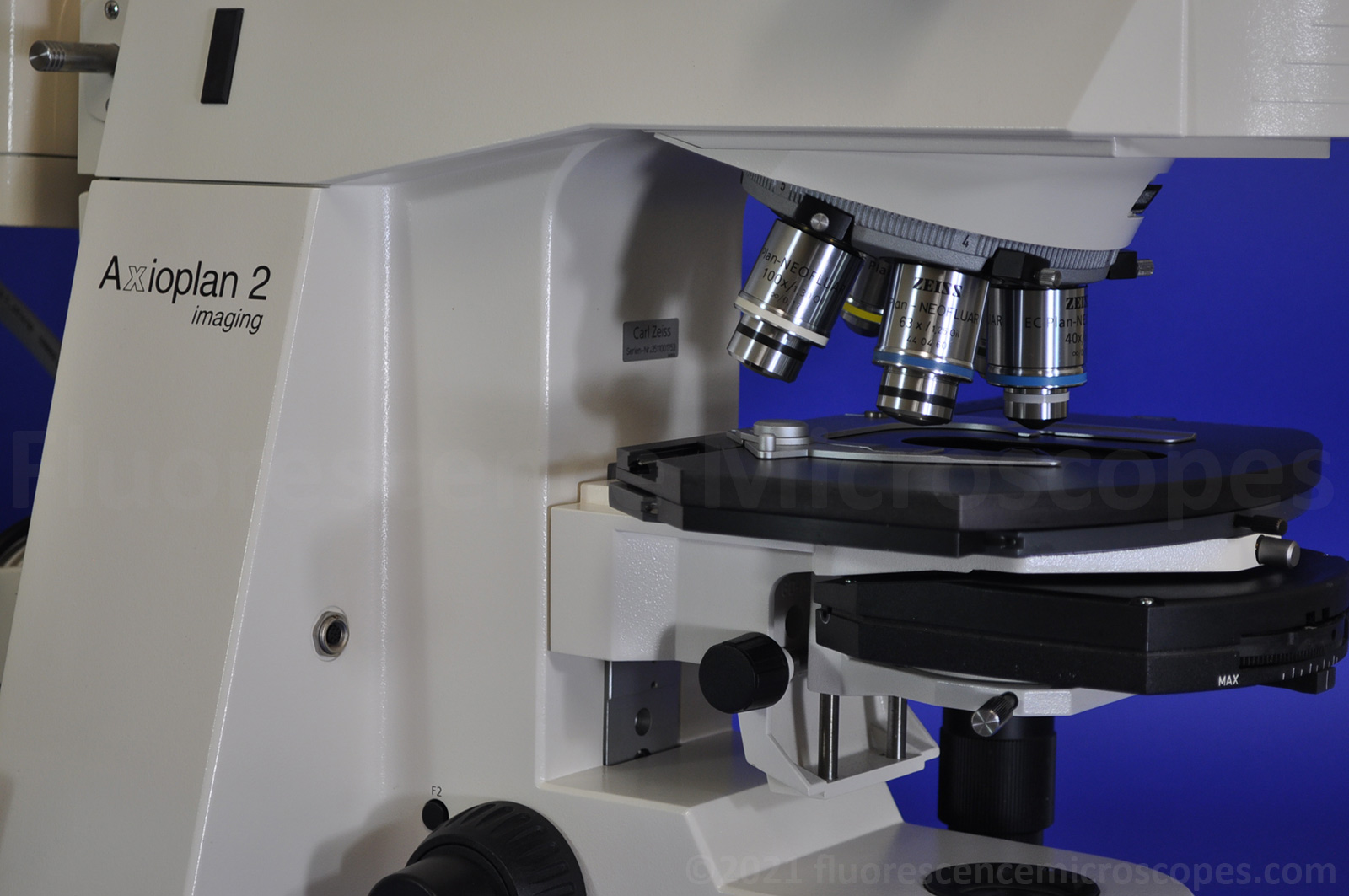

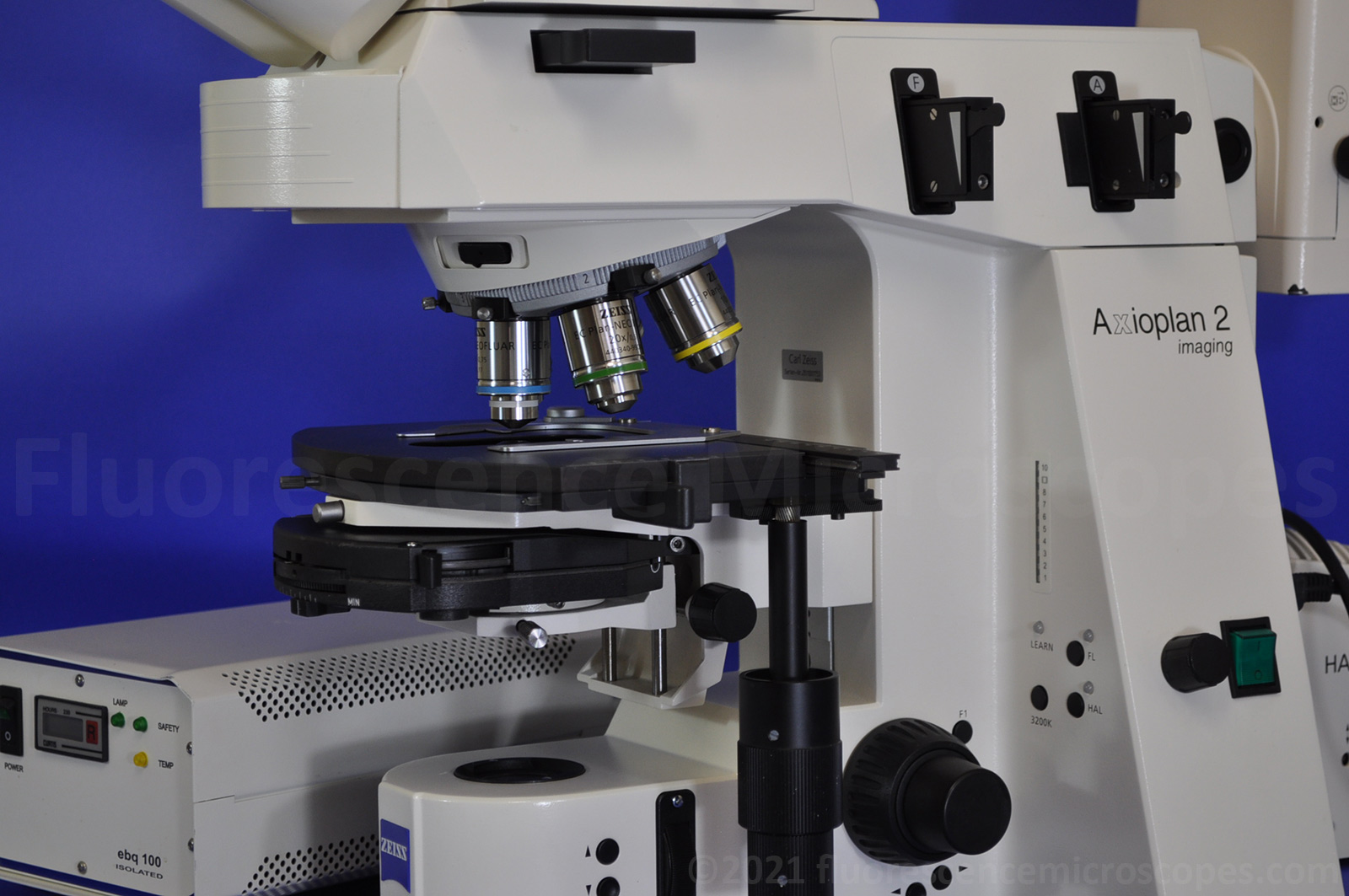

Six-place objective nosepiece, all with DIC openings.
Eyepiece Pair: Pl 10x / 25 with brand-new rubber cupping eye guards. Note: the 25 mm field of view is exceptionally wide.
Dual Photography Ports.

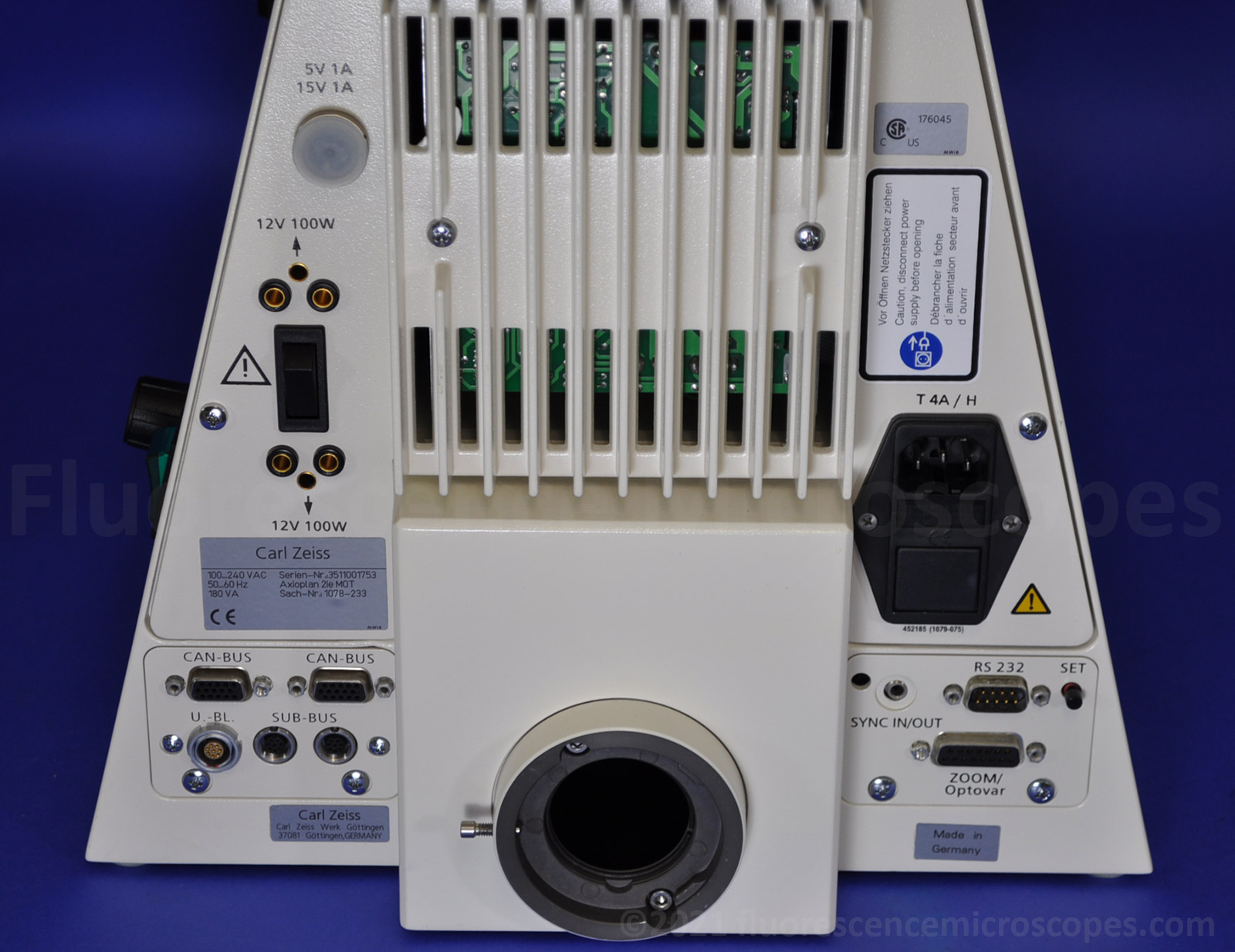

Automatic Voltage: Autosensing for USA or European voltage supply.
Professionally cleaned and serviced.

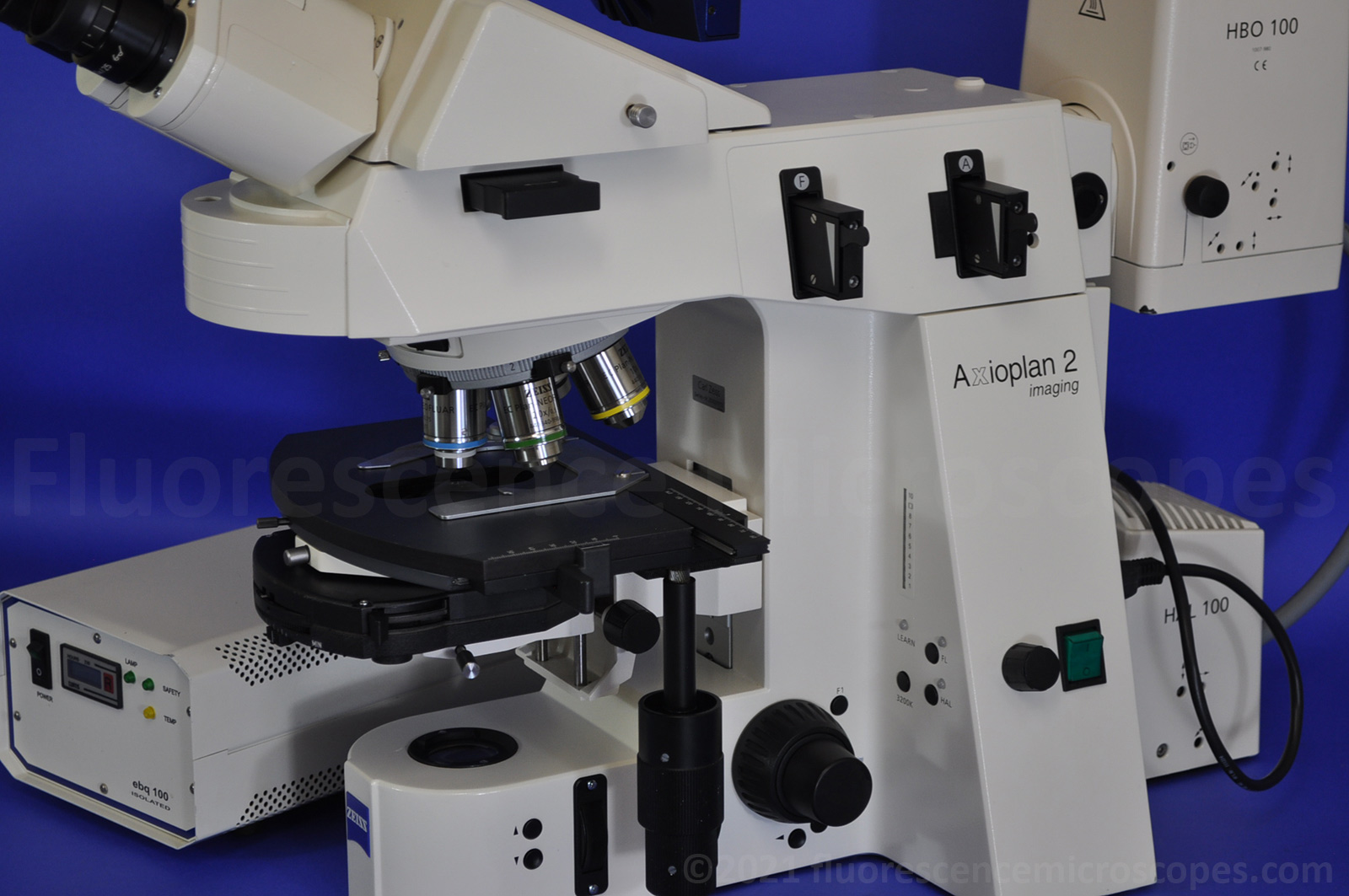

Motorization:

Fully motorized frame
Motorized fine and coarse focusing, reflector cube turret rotation, objective nosepiece rotation
Manually rotated filter wheels and field iris diaphragm on the bottom transmitted light path
Electronic shutter on fluorescence light path

Photography System:

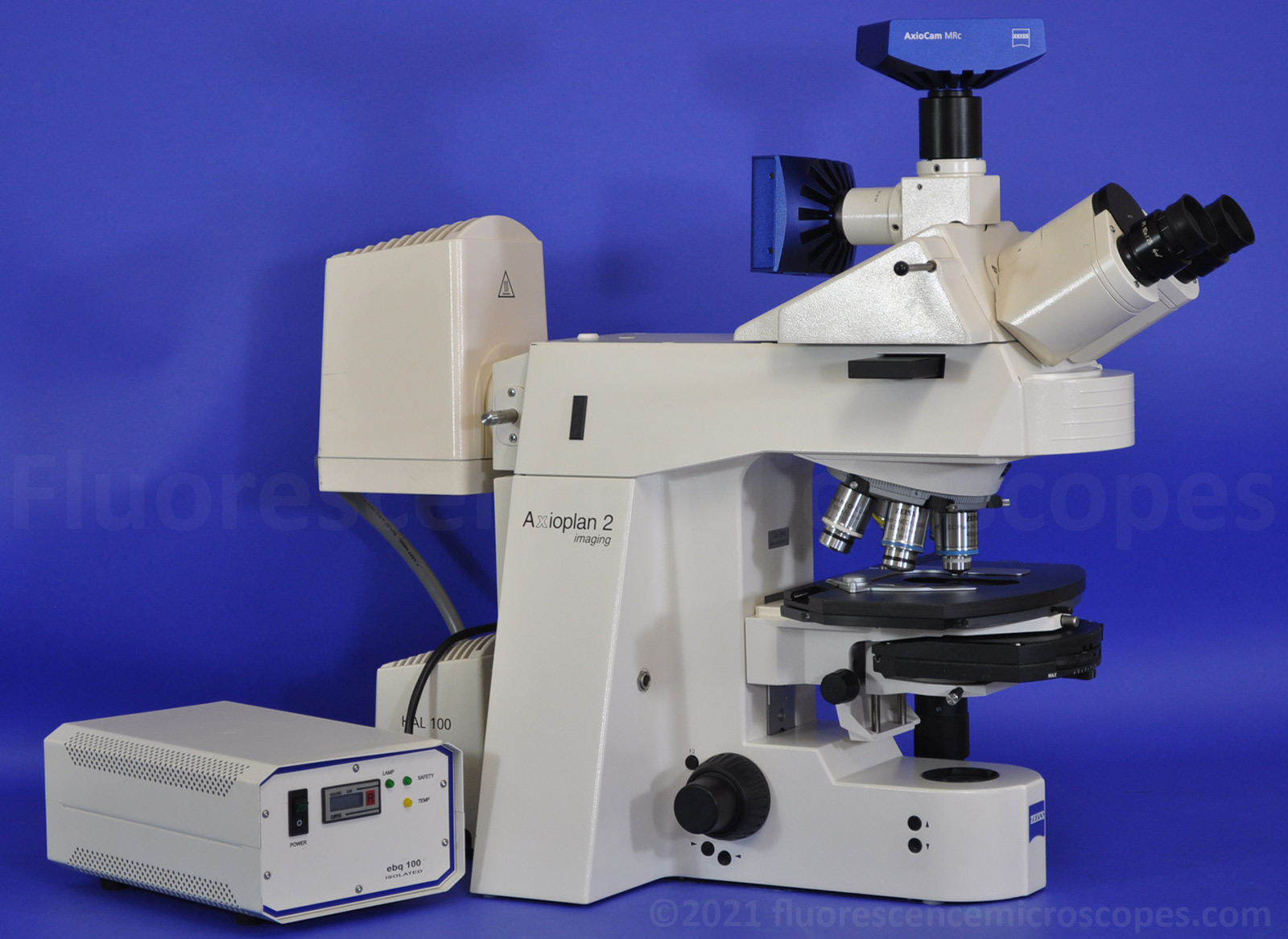

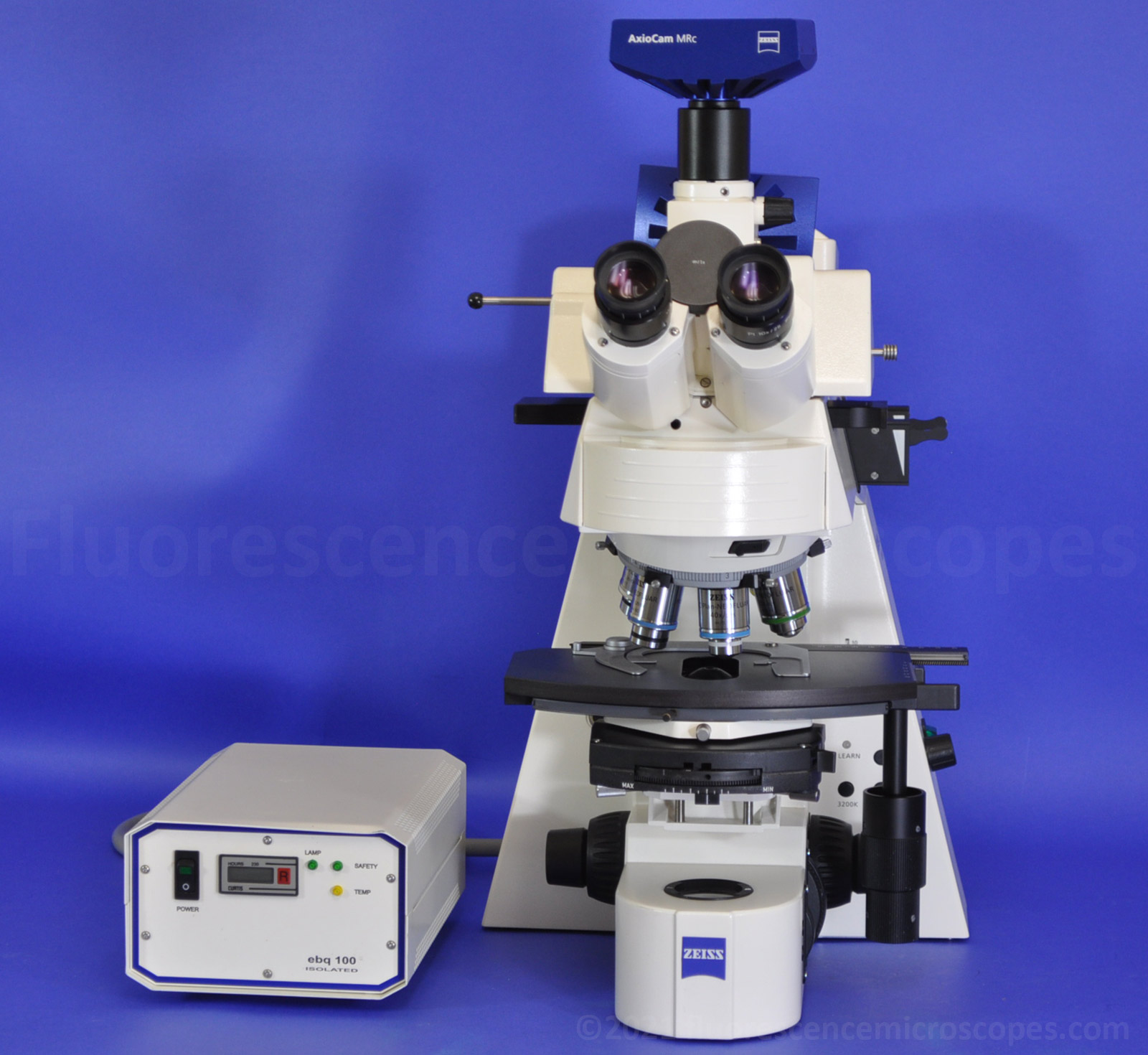

Dual photo ports on top of head. Can connect two cameras simultaneously
Ability for 100% light to binoculars, 100% light to top ports, or split
Top ports – ability to select between the cameras
Ability to shut out extraneous light from the eyepieces that may enter the camera optics
C-mount attachment for camera is included. (Only one c-mount is included. Two are shown in photos)
DOES NOT INCLUDE CAMERA. Cameras are shown in images to demonstrate they can be connected

Photography System:

Dual photo ports on top of head. Can connect two cameras simultaneously
Ability for 100% light to binoculars, 100% light to top ports, or split
Top ports – ability to select between the cameras
Ability to shut out extraneous light from the eyepieces that may enter the camera optics
C-mount attachment for camera is included. (Only one c-mount is included. Two are shown in photos)
DOES NOT INCLUDE CAMERA. Cameras are shown in images to demonstrate they can be connected

Differential Interference Contrast – DIC Microscopy:

This is a fully loaded DIC configuration

DIC Magnifications:

10x
20x
40x
63x
100x

We tested the DIC on all configured magnifications and obtained excellent textbook quality relief type images for each. Everything works as it was designed to.
DIC is a microscopy technique that gives relief-like images, especially with thick specimens. The 3D effect enhances visualizing structures in thick specimens better than phase. Thick specimens normally are not imaged well in phase contrast. This microscope is capable of imaging in relief or pseudo darkfield, depending on how you adjust it

Fluorescent Illumination:

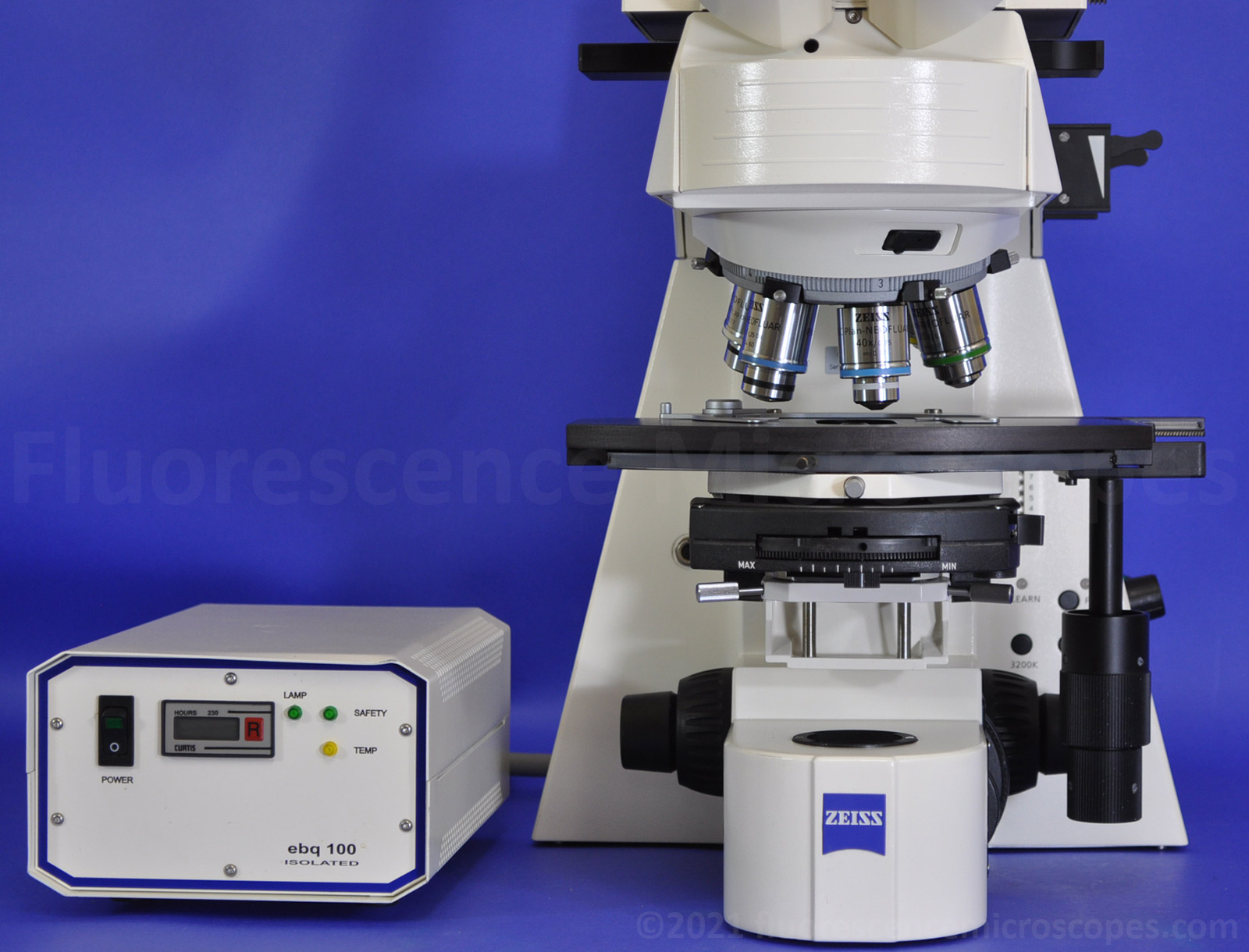

HBO 100 Lamp Housing and External Power Supply with included 100W Mercury Bulb.
Field Iris Diaphragm.
Aperture Iris Diaphragm.
The Iris diaphragms were properly centered.
Electronic internal shutter to cut off the fluorescence illumination.
Manual shutter slider.
IR heatshield (epi-illumination light path) is properly installed in the epi port to protect internal optics.
Includes an additional IR filter on the shutter slider for added protection, This is specifically used to reduce photo bleaching of the fluorescent specimen.
Proper optical alignment was achieved in the epi illumination light path.
Arc alignment viewing aid is included

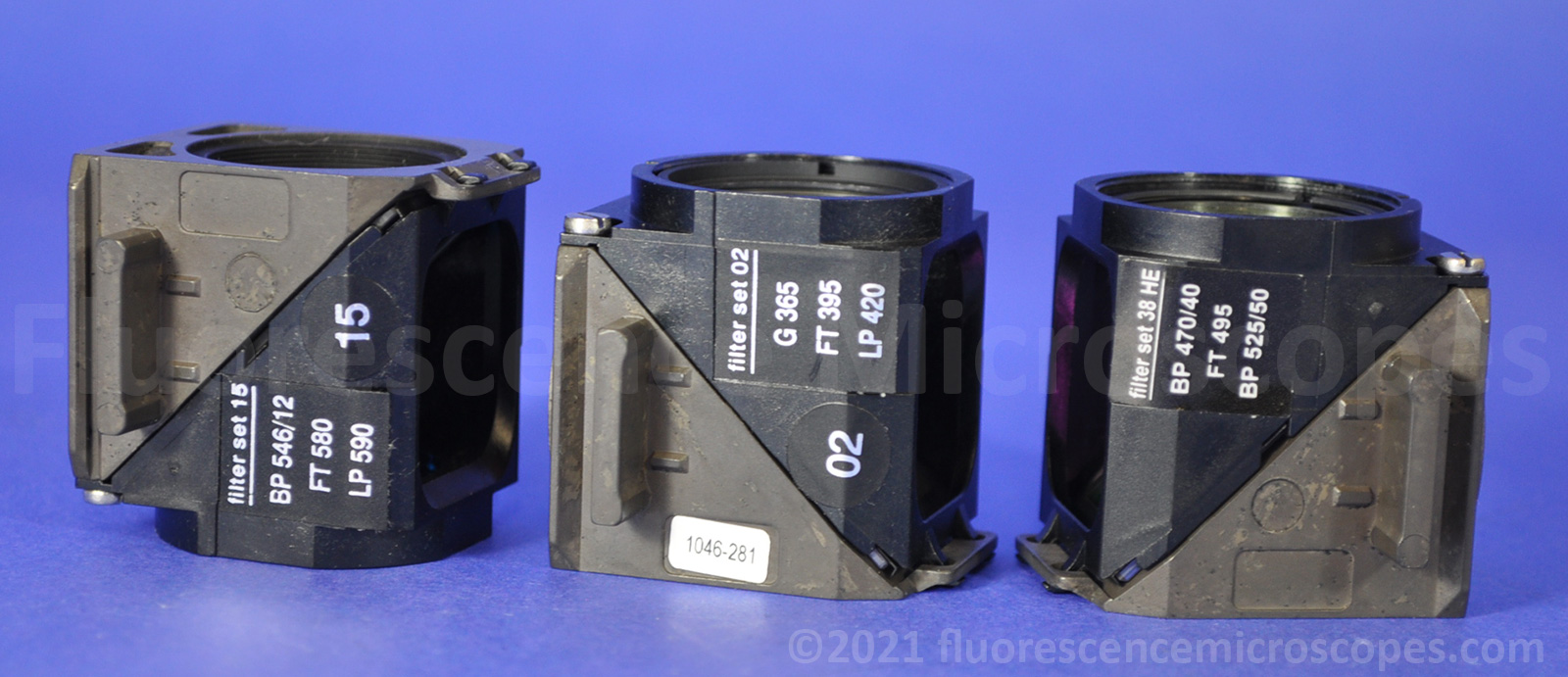

Fluorescence Dichroic Filters:

Eight-Place (8) reflector module cube turret

Installed Dichroic Sets:

DAPI – Zeiss Filter Set 02: EX. 365, BS. 395, EM. 420 long pass.
FITC – Zeiss Filter Set 38 HE: EX. 470/40 bandpass, BS. 495, EM. 525/50 bandpass.
TRITC – Zeiss Filter Set 15: EX. 546/12 bandpass, BS. 580, EM. 590 long pass.
These filters were tested and produced very good images on this microscope.
Includes blockers on all empty positions for UV protection.
The cube style is the modern Push & Click version, not the older screw-in style.
Transmitted Illumination: Brightfield – Darkfield – DIC:
Halogen Illumination: 12V-100W.
Includes two spare bulbs.
Rotary Turret style light Condenser.
Numerical Aperature. 0.9 N.A.
Settings for: Ph1, Ph2, Ph3, Brightfield, and DIC.
Phase contrast annuli are properly installed. This only needs phase objectives to have phase microscopy

Setting for: Darkfield microscopy.

Filter Wheel (Rear): (manually operated). Daylight blue color correction, Green, Neutral Density ND 6.
Filter Wheel (Front): (manually operated). Neutral Density ND 1.5, 6, 25.
Koehler Field Iris Diaphragm. (manually operated).
Koehler Illumination was properly achieved.
IR heatshield (transmitted light path) is properly installed to protect internal optics.
Frosted diffuser filter is properly installed.
Has ability to do cross polarization to increase imaging contrast. Includes polarizer and analyzer

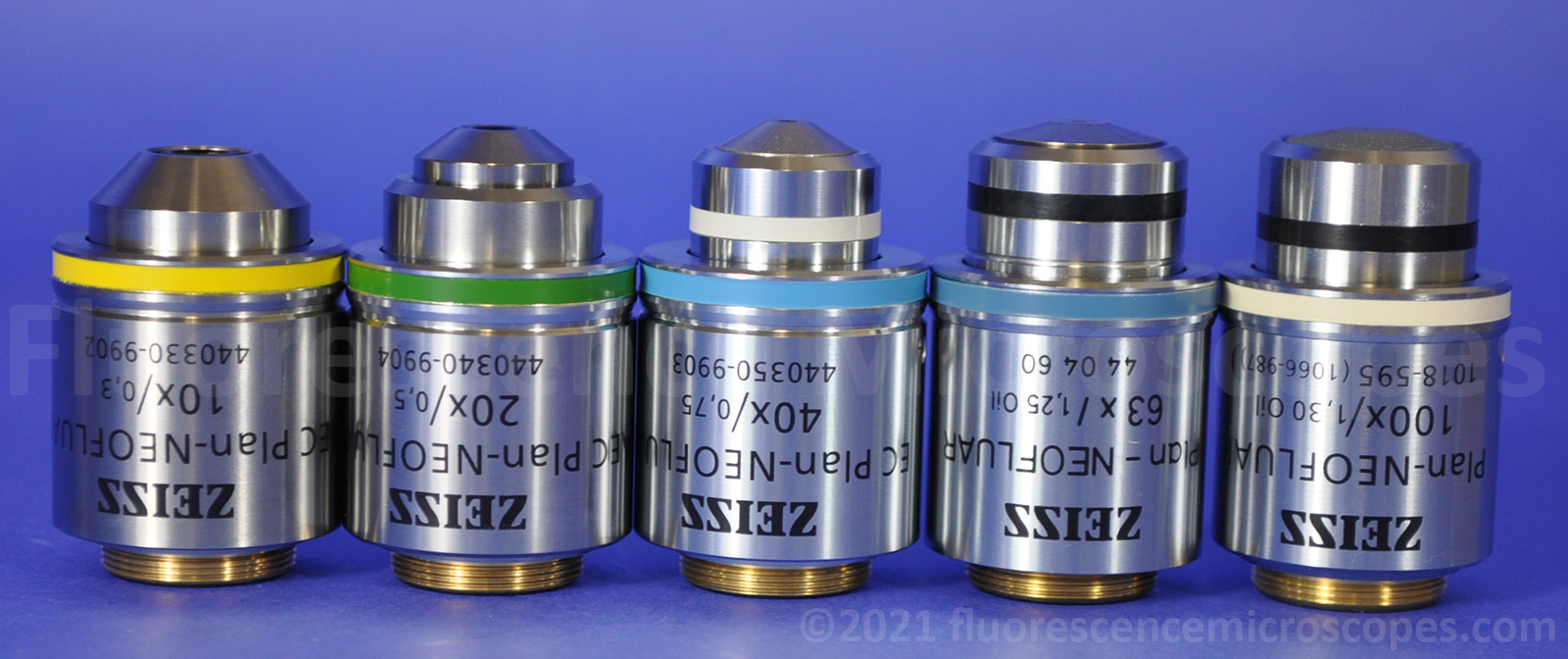

Objective Lenses:

Includes the higher grade Plan Neofluar objectives.
10x. EC-Plan-Neofluar 10x / 0.30. 8/-. Part#440330-9902.
20x. EC-Plan-Neofluar 20x / 0.50, 8/0.17. Spring. Part#440340-9904.
40x. EC Plan-Neofluar 40x / 0.75, Infinity/0.17. Spring. Part#440350-9903.
63x. Plan-Neofluar 63x / 1.25, Oil, 8/0.17 mm. Spring. Part#440460.
100x. Plan-Neofluar 100x / 1.30, Oil, 8/0.17. Part#1018-595 (1066-987)

Comments:

This microscope is in great condition.
It also has all the tools included for proper assembly and disassembly.
Includes all needed power cords.
This is a high quality Zeiss (Made in Germany) optical instrument

Optional Accessories:

We have a wide variety of optional scientific cameras, both monochrome and color, with and without Peltier cooling

Good Value:

When comparing prices, keep in mine the extras that we are providing.
We are including a one year warranty, money back guarantee, and free shipping that are value added additions not given by most resellers.
We have carefully refurbished this item and completely tested all functionality. Everything is working well and as designed

User Manual and Instructions:

Upon purchase, we will email links to the user manuals / instructions
