Product Overview:

Current Zeiss Model

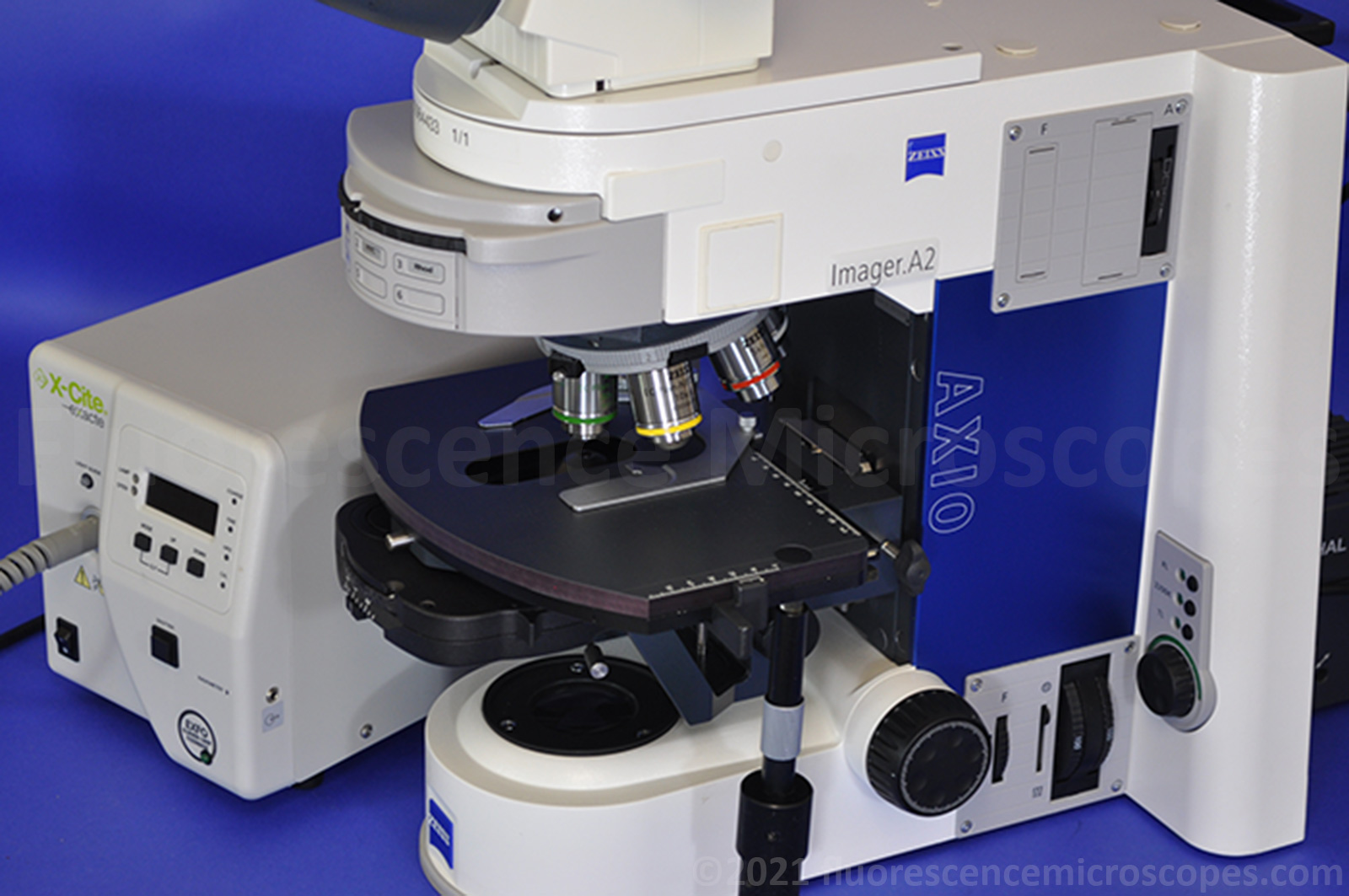

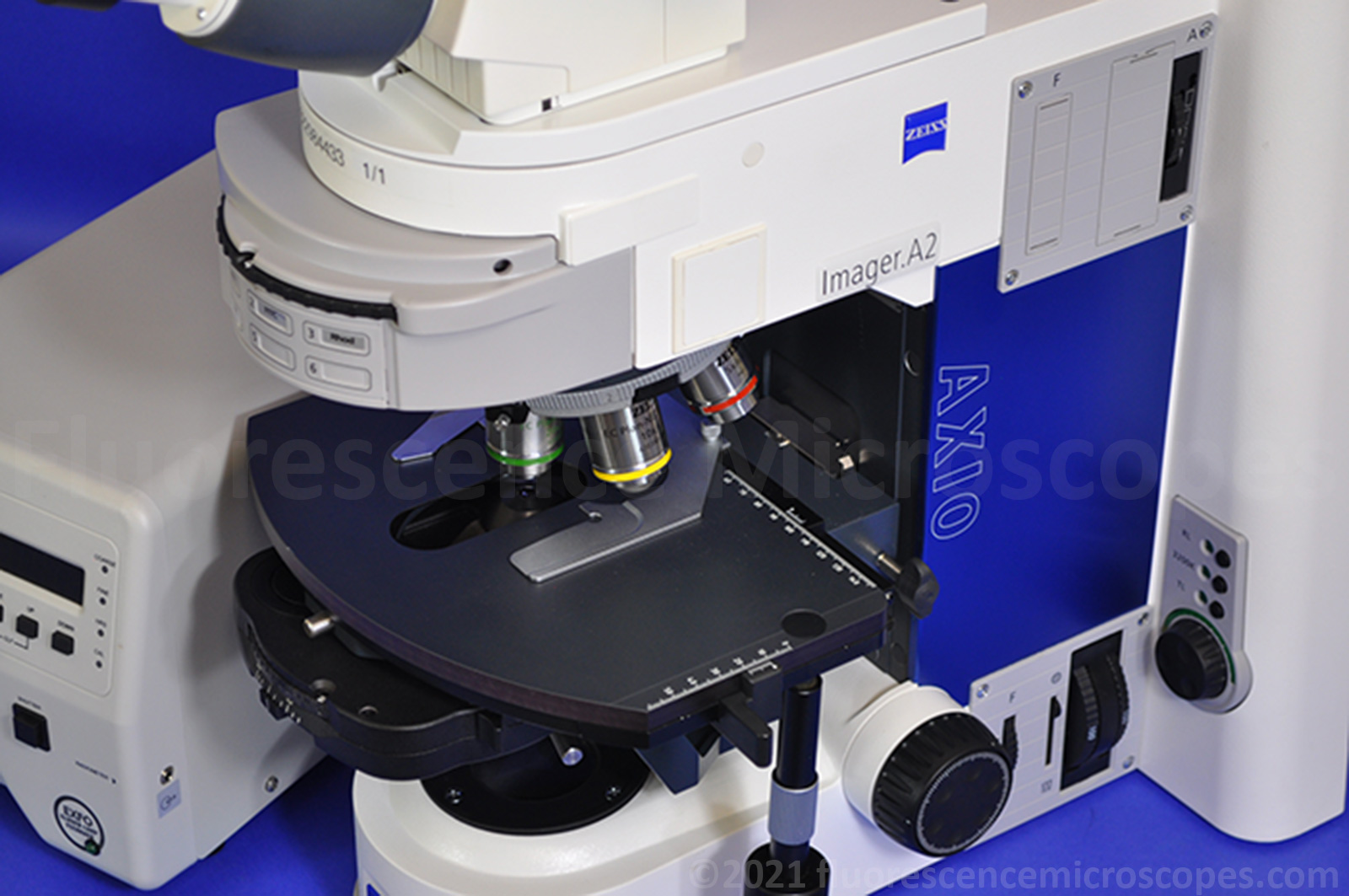

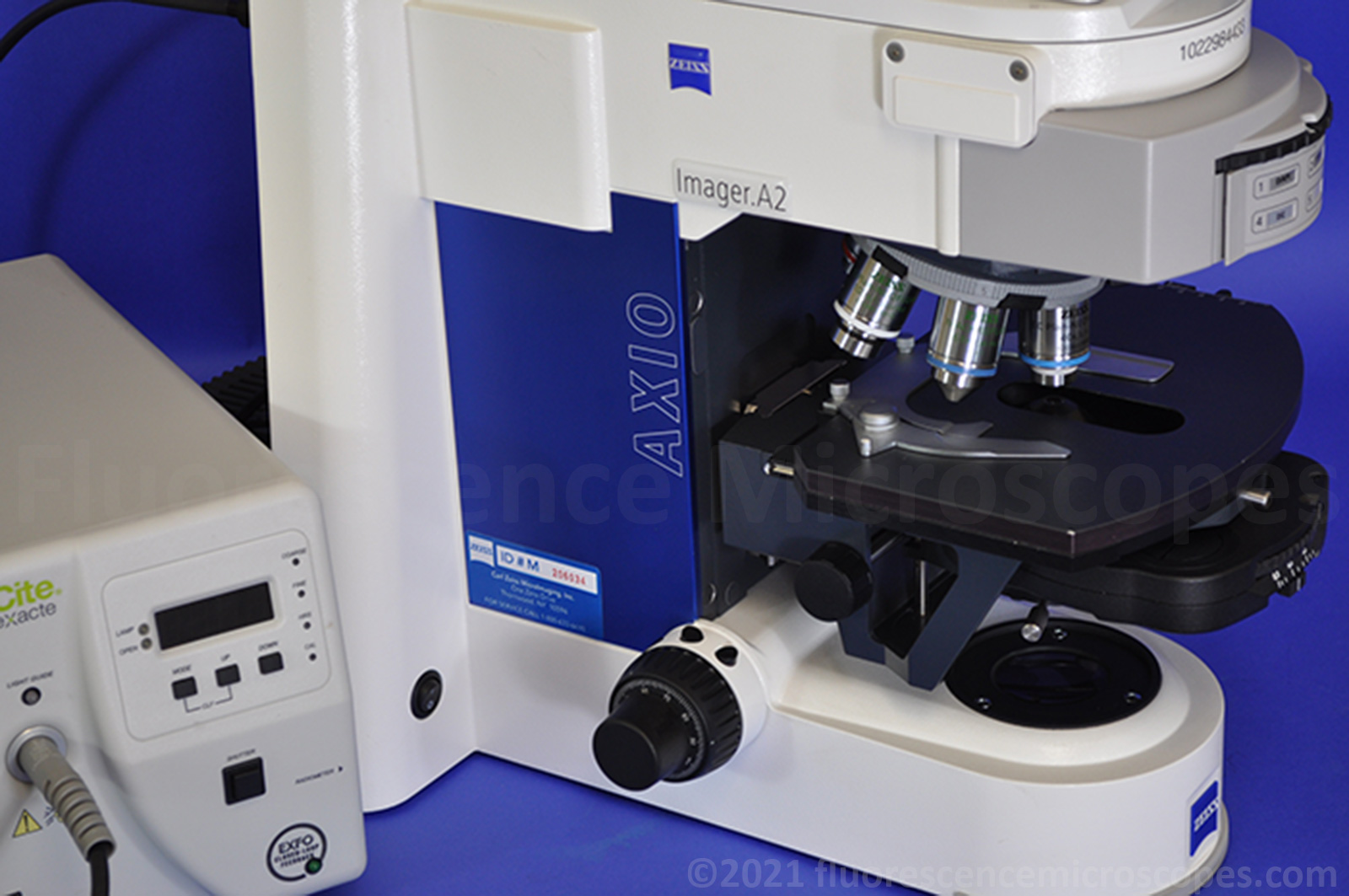

X-cite eXacte Metal Halide Fluorescence Illuminator
Fully Loaded – Differential Interference Contrast
DIC Configured For: 10x 20x 40x 100x.
M27 EC Plan-Neofluar Objectives Set:
Full Range: 5x/10x/20x/40x/63x/100x.
Phase Contrast: 20x 63x 100x.
Dark-field microscopy.
Port for photography.
Camera Not Included

Main Features:

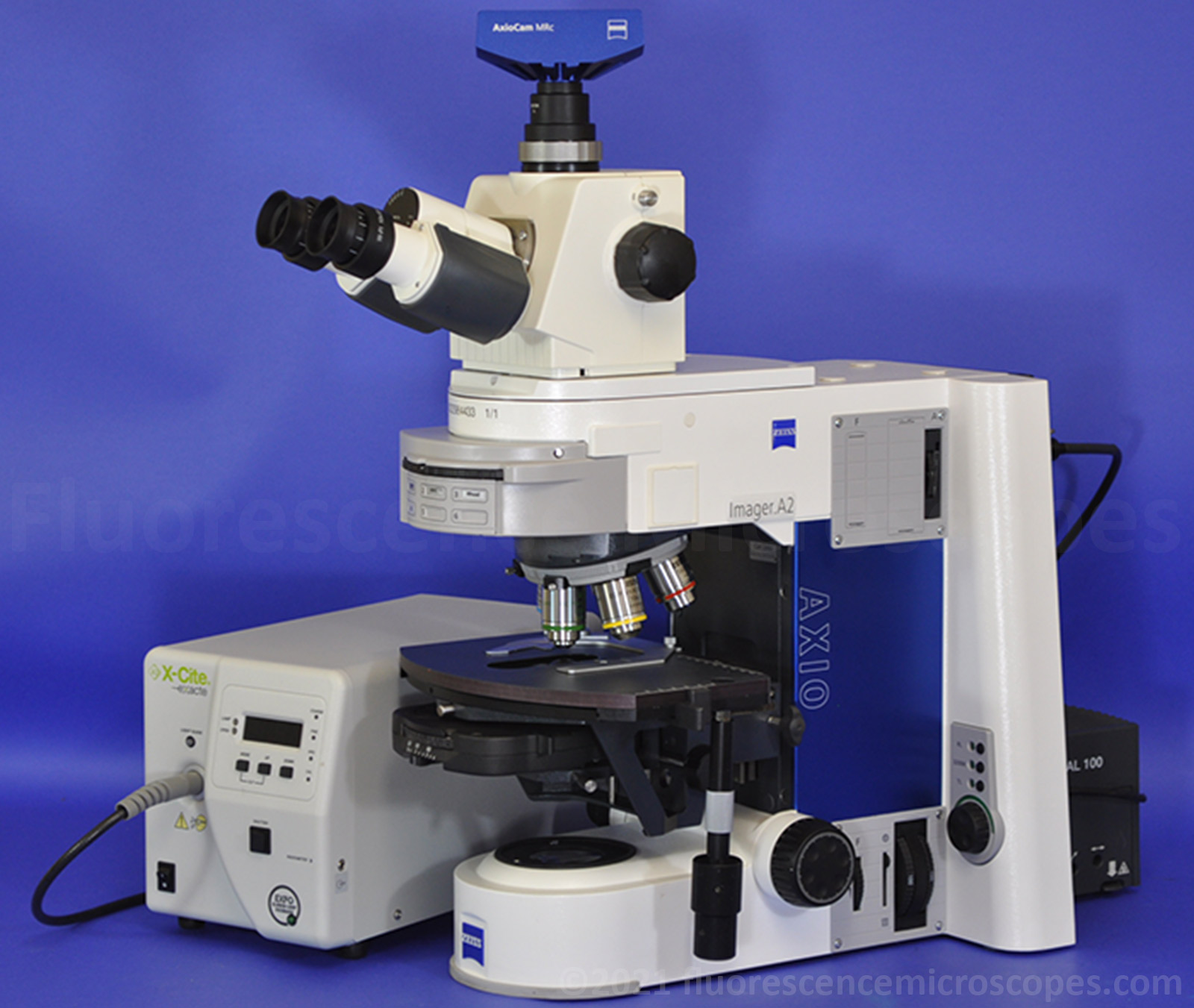

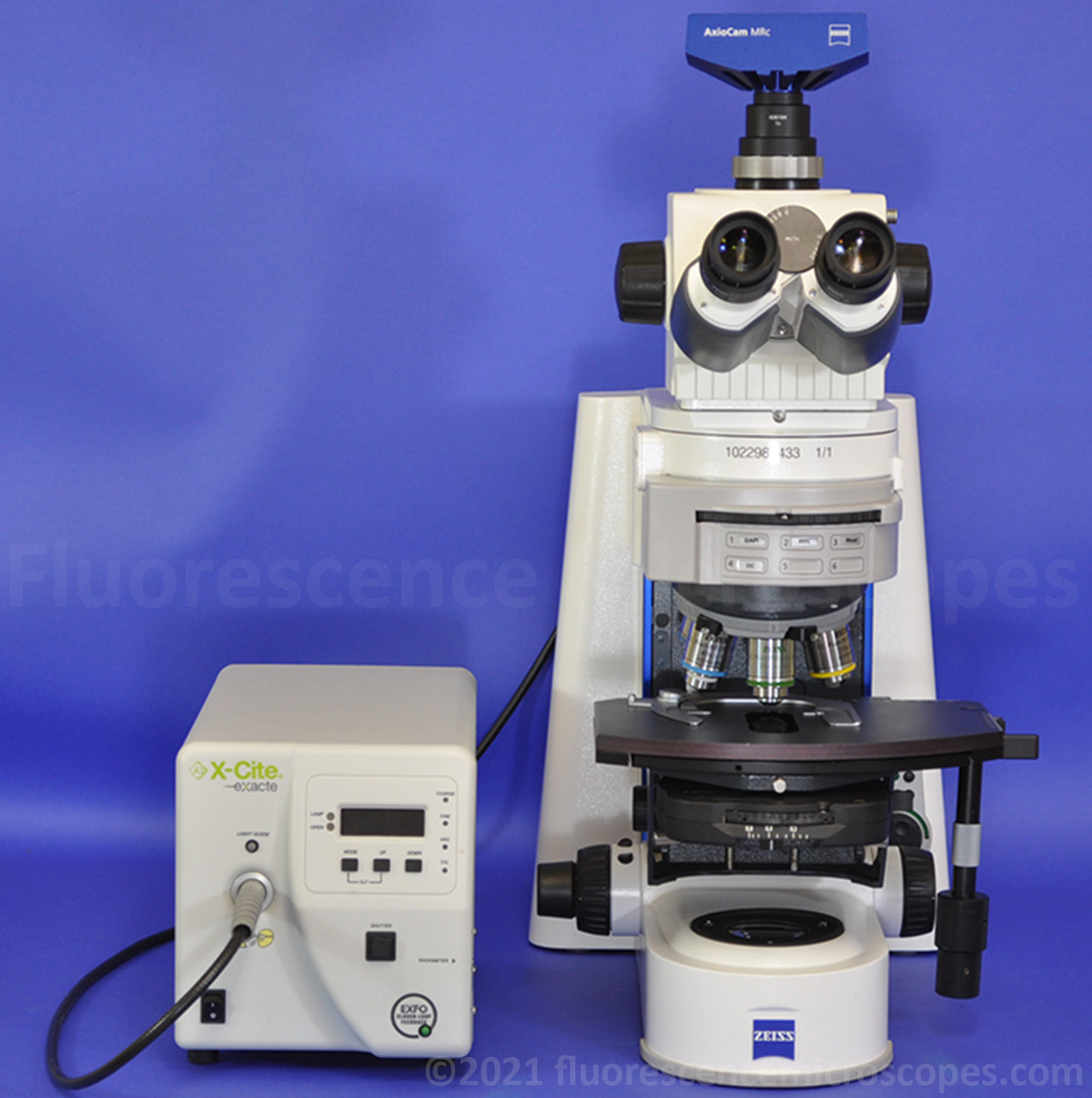

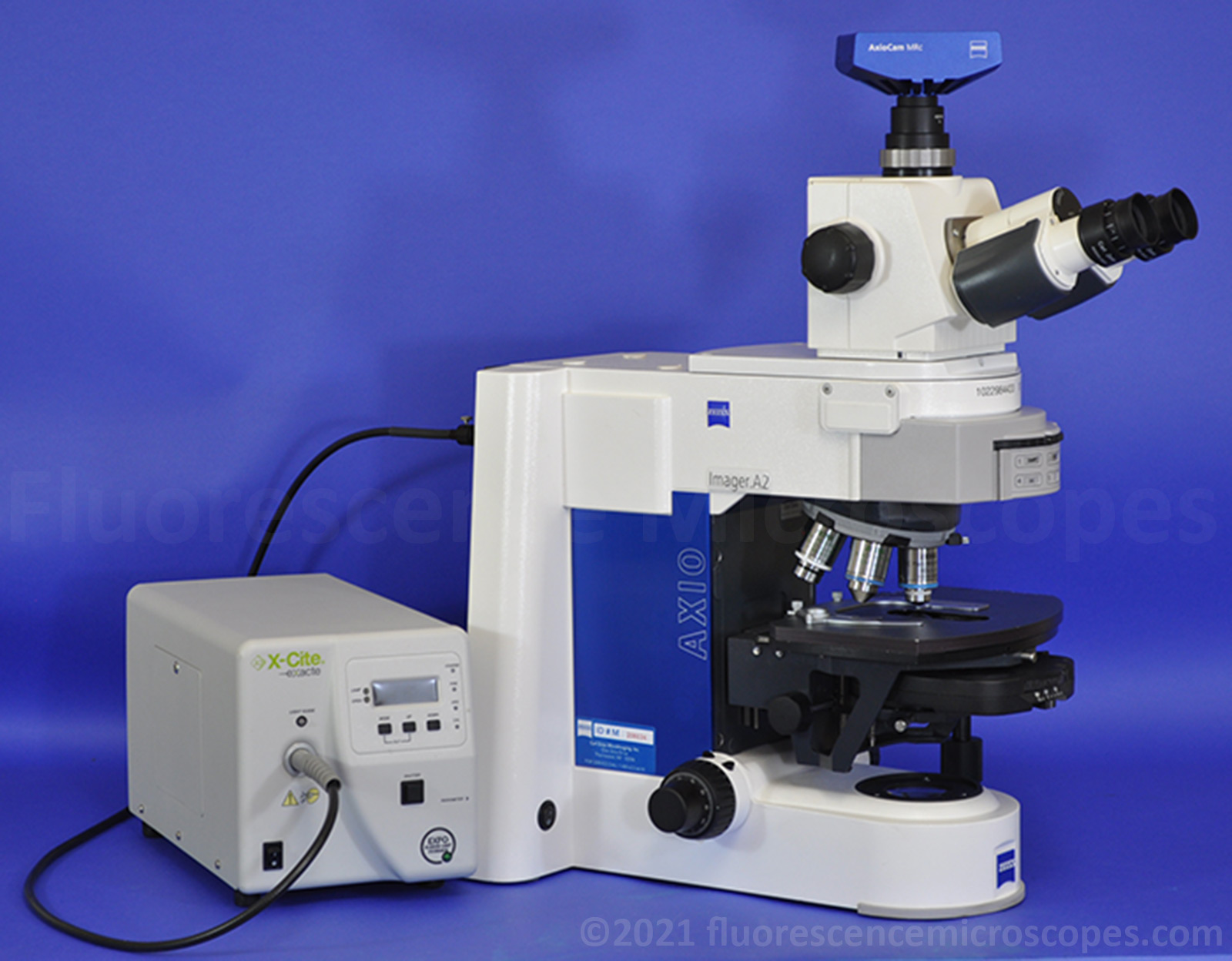

My reference only: SKU-166 Zeiss Axio Imager A2 Upright Manual DIC Phase Fluorescence Microscope
Current Zeiss product line. Rare to find except from Zeiss factory.
Reasonable price considering how this is configured. Call Zeiss factory for pricing if you think this is too expensive.
All Manual Frame for ease of operation and less potential problems.
DIC Configuration using Plan-Neofluar Objective Lenses.
Phase contrast and dark-field microscopy included.
X-cite eXacte Fluorescence Illumination for collimated light without the tedious bulb alignment.
Set of Zeiss dichroic filters

Head with Photography System:

Top photography port.
Ability to take 100% of light to the binoculars or 100% to the camera port.
Ergonomic head with the ability for vertical adjustment to fit an individual user’s unique needs.
Eyepiece Pair: W-Pl 10x / 23 with brand-new rubber cupping eye guards.
Includes original Zeiss 1x C-mount adapter P/N 426104.
DOES NOT INCLUDE CAMERA. Cameras are shown in images to demonstrate they can be connected

Differential Interference Contrast – DIC Microscopy:

Totally loaded DIC configuration.
DIC Magnifications: 10x, 20x, 40x, 100x.
We tested the DIC on all configured magnifications and obtained excellent textbook quality relief type images for each. What was surprising is the stunning quality of the DIC on this particular microscope. If you are looking for high-end publication quality DIC images, this microscope will fit your needs.

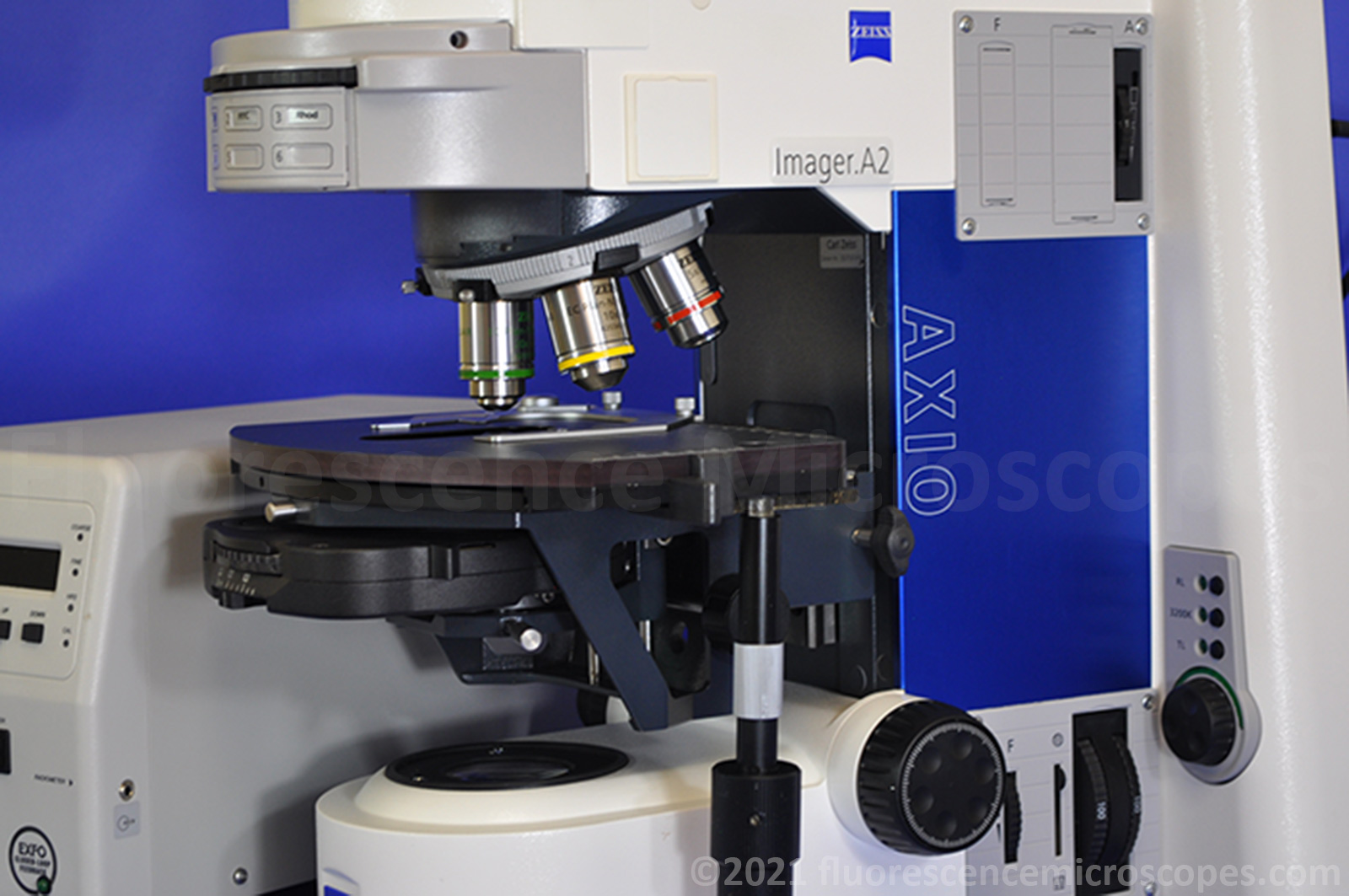

The mechanical stage is the DIC version capable of rotating. This is important for optimizing the DIC images.

DIC is a microscopy technique that gives relief-like images, especially with thick specimens. The 3D effect enhances visualizing structures in thick specimens better than phase. Thick specimens normally are not imaged well in phase contrast. This microscope is capable of imaging in relief or pseudo darkfield, depending on how you adjust it

Phase Contrast Microscopy:

Phase Contrast Capability. Configured on 20x, 63x, and 100x objectives.
Capable of other phase contrast magnifications with other objectives not included.
Condenser has all three phase annuli: Ph1, Ph2, Ph3.
Obtained proper centering of phase annulus rings. Includes the required tools for centering.
Includes a phase centering telescope “CT” for optimal phase alignment

Fluorescent Illumination:

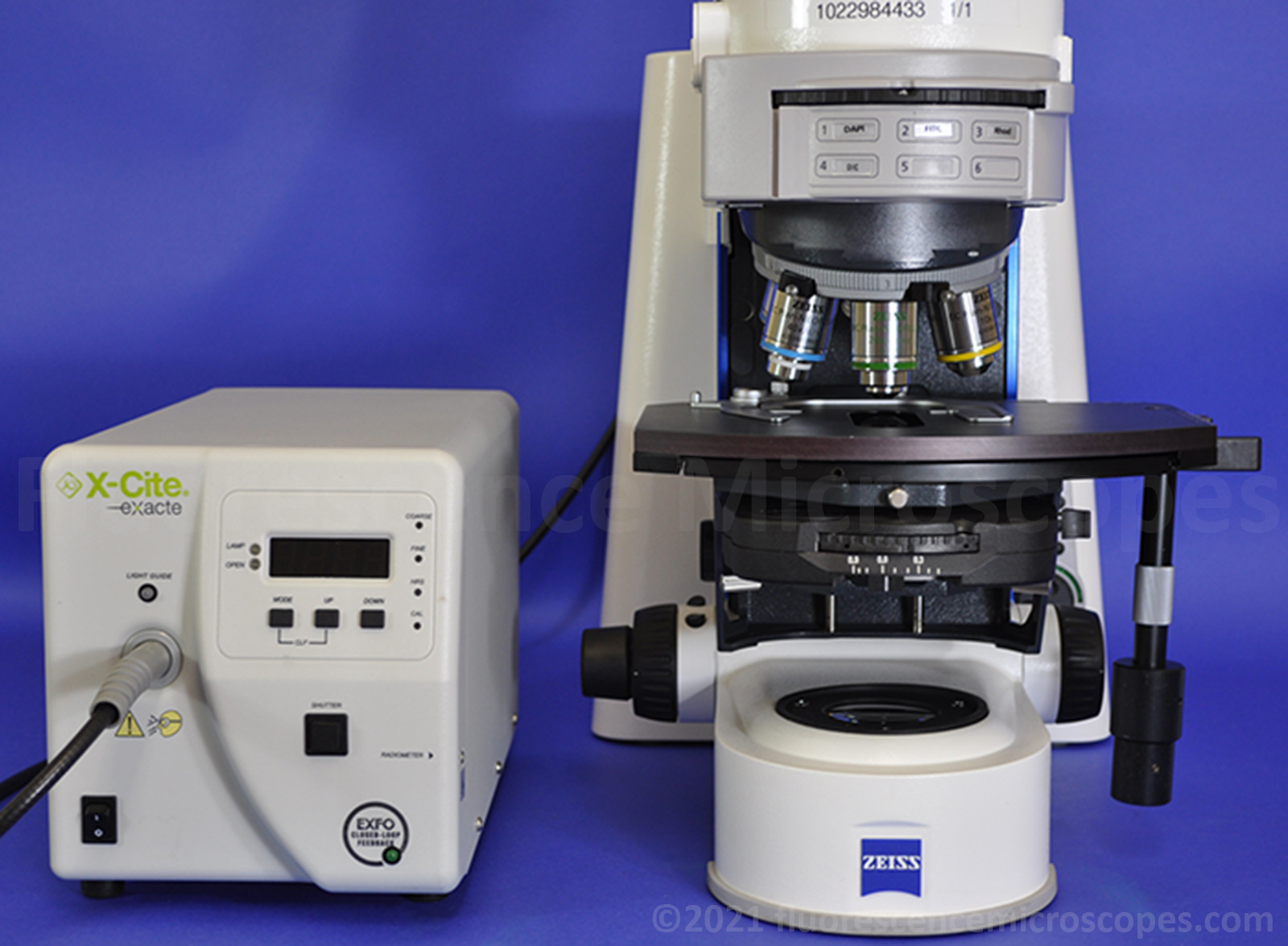

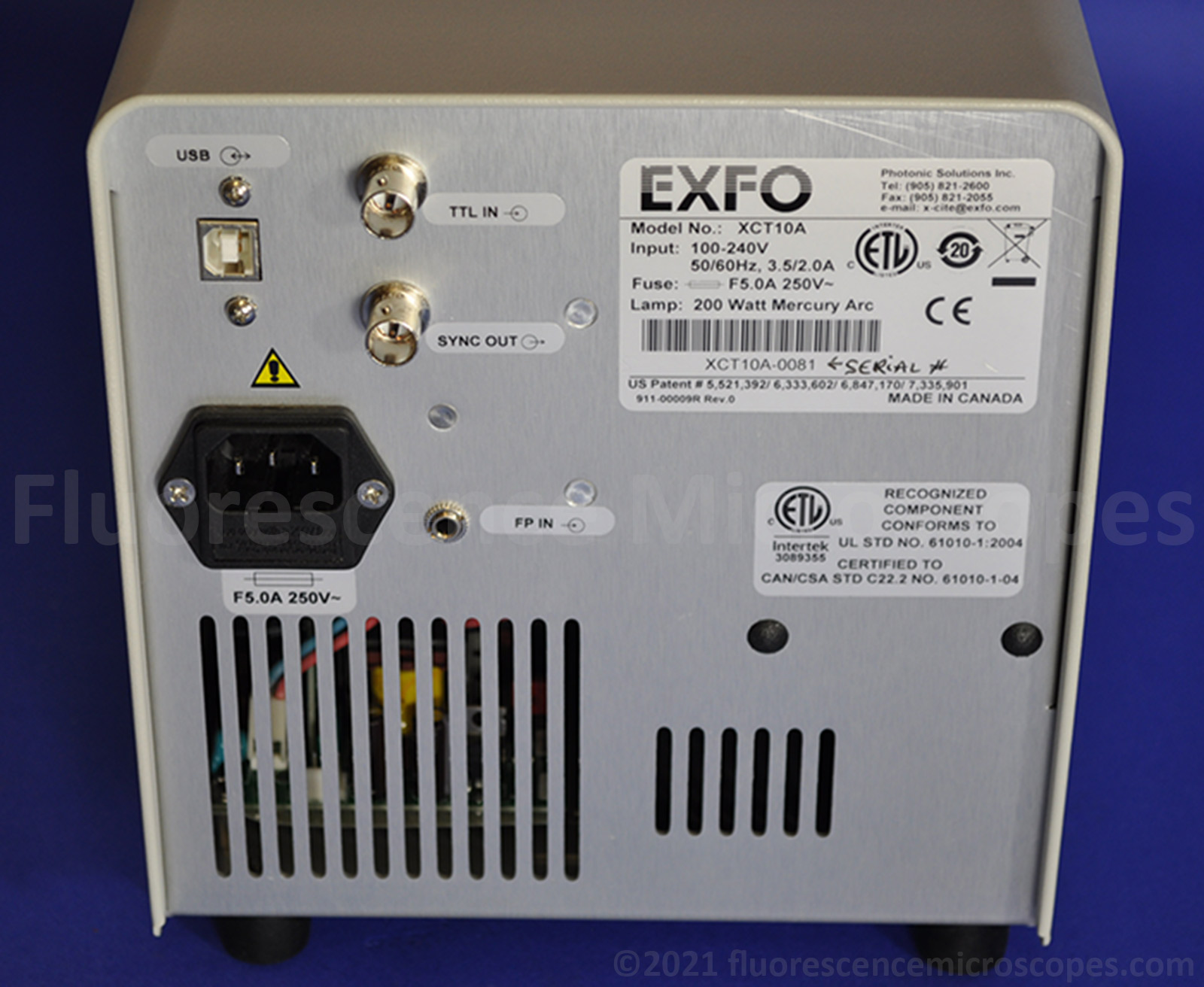

X-cite eXacte metal halide fluorescence illuminator.
Illuminator includes on-off shutter as well as digital variable intensity.
These illuminators give proper collimated light so there is no tedious bulb alignment like in the HBO units.
The bulbs are also long life, rated for 2000 hours. The meter on the illuminator shows the bulb hours at only 214.
Epi-illumination aperture iris diaphragm with settings on a dial

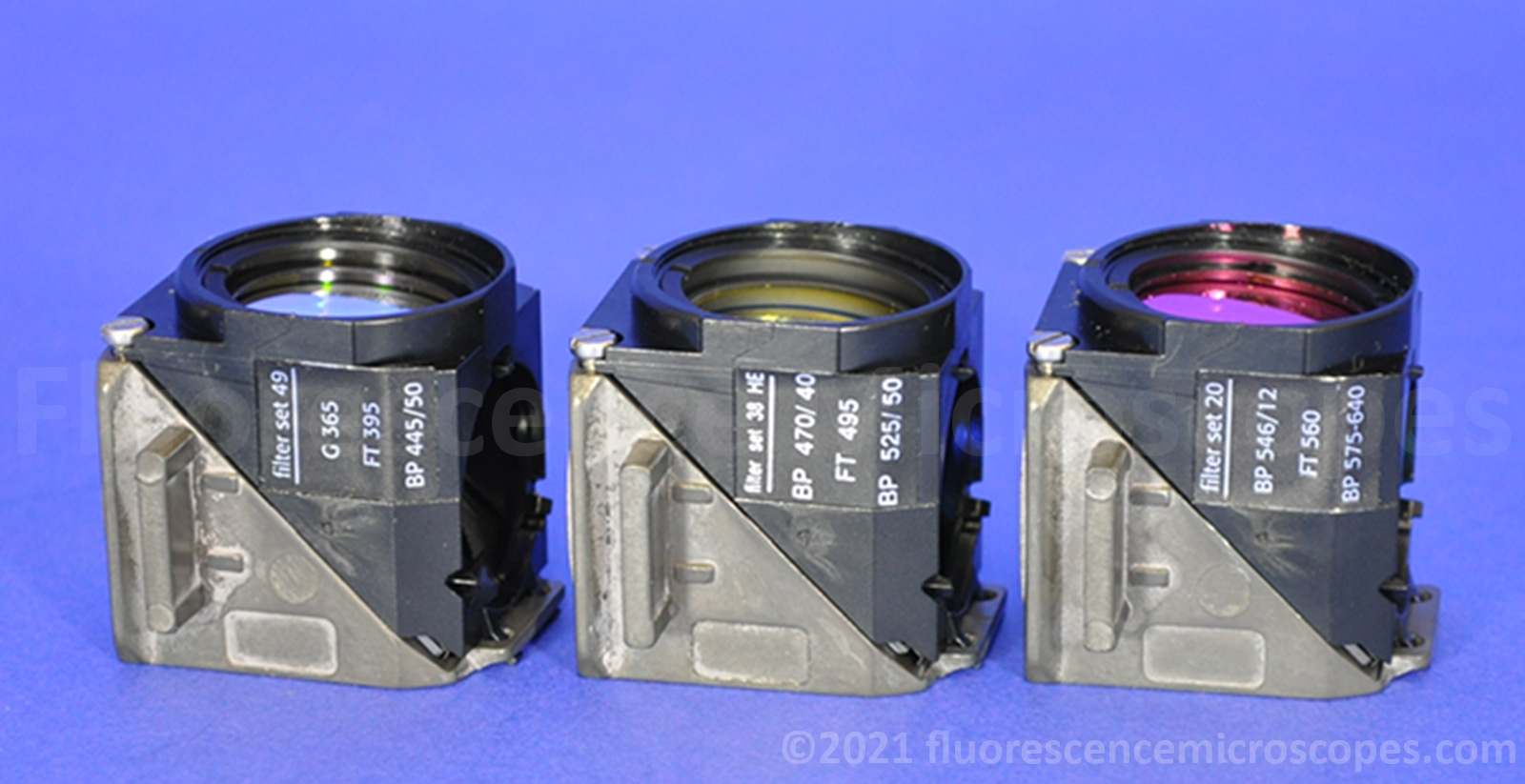

Fluorescence Dichroic Filters:

Six-Place (6) reflector module cube turret

Installed Dichroic Sets:

DAPI – Zeiss Filter Set 49: EX. 365, BS. 395, EM. 445/50 band pass.
FITC – Zeiss Filter Set 38 HE: EX. 470/40 bandpass, BS. 495, EM. 525/50 bandpass.
TRITC / Rhodamine – Zeiss Filter Set 20: EX. 546/12 bandpass, BS. 560, EM. 575-640 band pass
These filters were tested and produced very good images on this microscope.
Includes blockers on all empty positions for UV protection.
Transmitted Illumination: Brightfield – Phase – Darkfield – DIC:
Halogen Illumination: 12V-100W.
Includes two spare bulbs.
Rotary Turret style light Condenser.
Numerical Aperature. 0.9 N.A.
Settings for: Ph1, Ph2, Ph3, Brightfield, and DIC.
Setting for: Darkfield microscopy.
Filter Wheel (Rear): Neutral Density ND 0.02, 0.4, 6.
Filter Wheel (Front): Neutral Density ND 12, 25, 50.
Koehler Field Iris Diaphragm.
Koehler Illumination was properly achieved.
IR heatshield (transmitted light path) is properly installed to protect internal optics.
Frosted diffuser filter is properly installed.
3200 K Illumination Setting Button.
Control buttons on the left focusing knobs:
Button for reflected light shutter.
Button for transmitted light on/off.
Button for light intensity up.
Button for light intensity down.
Light Manager button on rear for memory of illumination intensity settings.
Has ability to do cross polarization to increase imaging contrast. Includes polarizer and analyzer

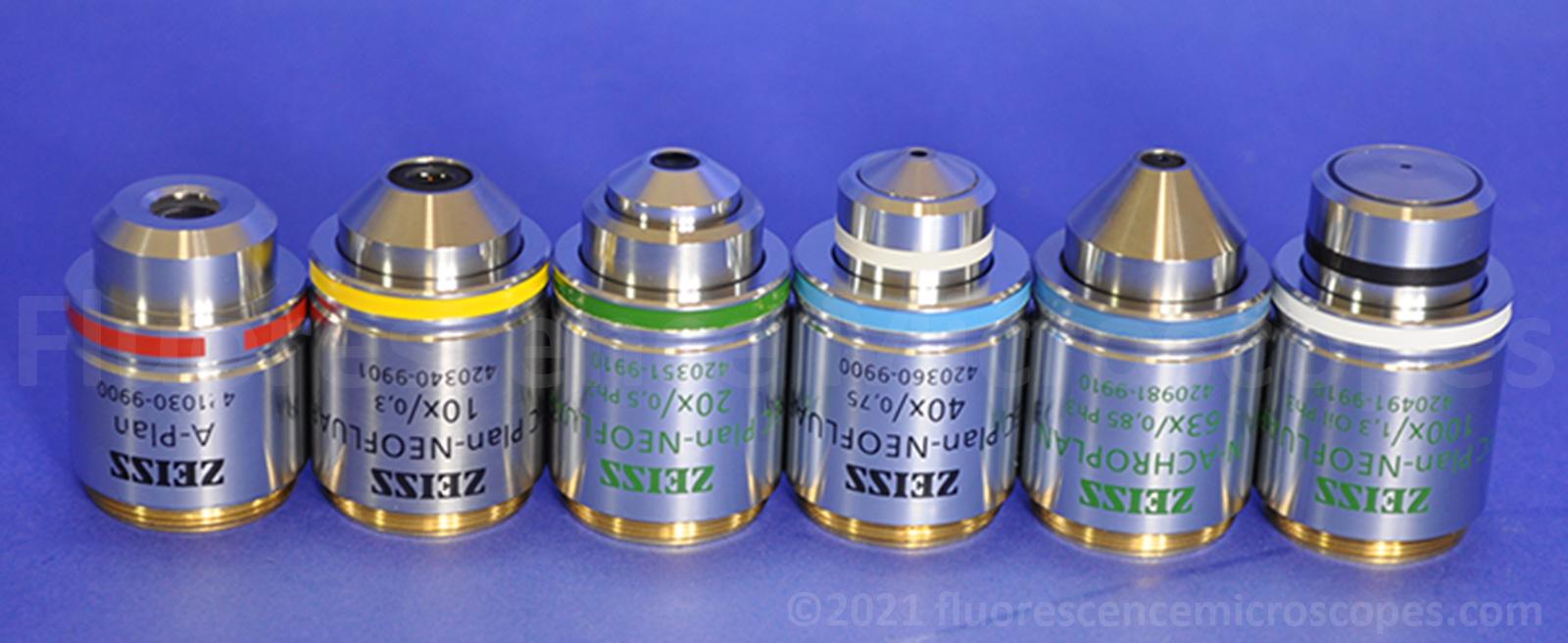

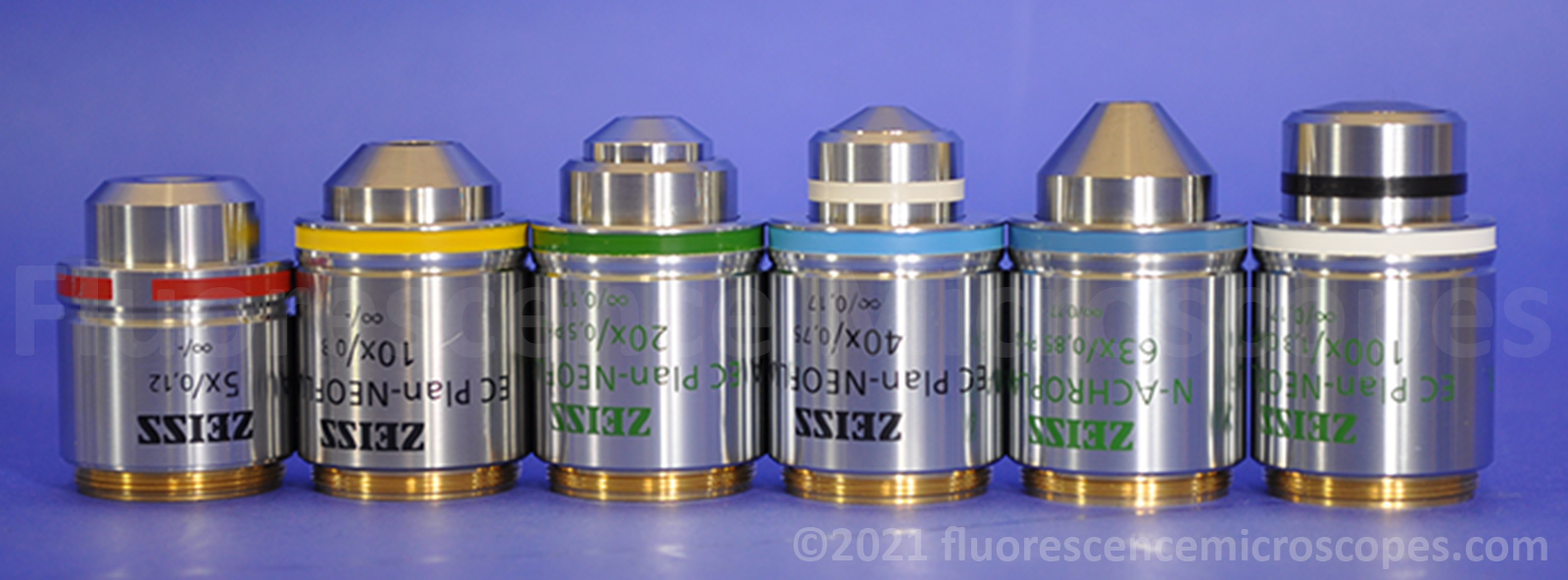

Objective Lenses:

Six-Place Objective Nosepiece Turret. Thread size M27.
All objectives are M27.
5x. A-Plan 5x / 0.12. 8/-. Part#421030-9900 (M27).
10x. EC Plan-Neofluar 10x / 0.30. 8/-. Part#420340-9901 (M27).
20x. EC Plan-Neofluar 20x / 0.50, 8/0.17. Ph2. Phase Contrast. Part#420351-9910 (M27).
40x. EC Plan-Neofluar 40x / 0.75, Infinity/0.17. Part#420360-9900 (M27).
63x. N-Achroplan 63x / 0.85, Dry, 8/0.17. Ph3. Phase Contrast. Part#420981-9910 (M27).
100x. EC Plan-Neofluar 100x / 1.30, Oil, 8/0.17. Ph3 Phase Contrast. Part#420491-9910 (M27)

Comments:

This microscope is in great condition.
It also has all the tools included for proper assembly and disassembly.
Includes all needed power cords.
This is a high quality Zeiss (Made in Germany) optical instrument.

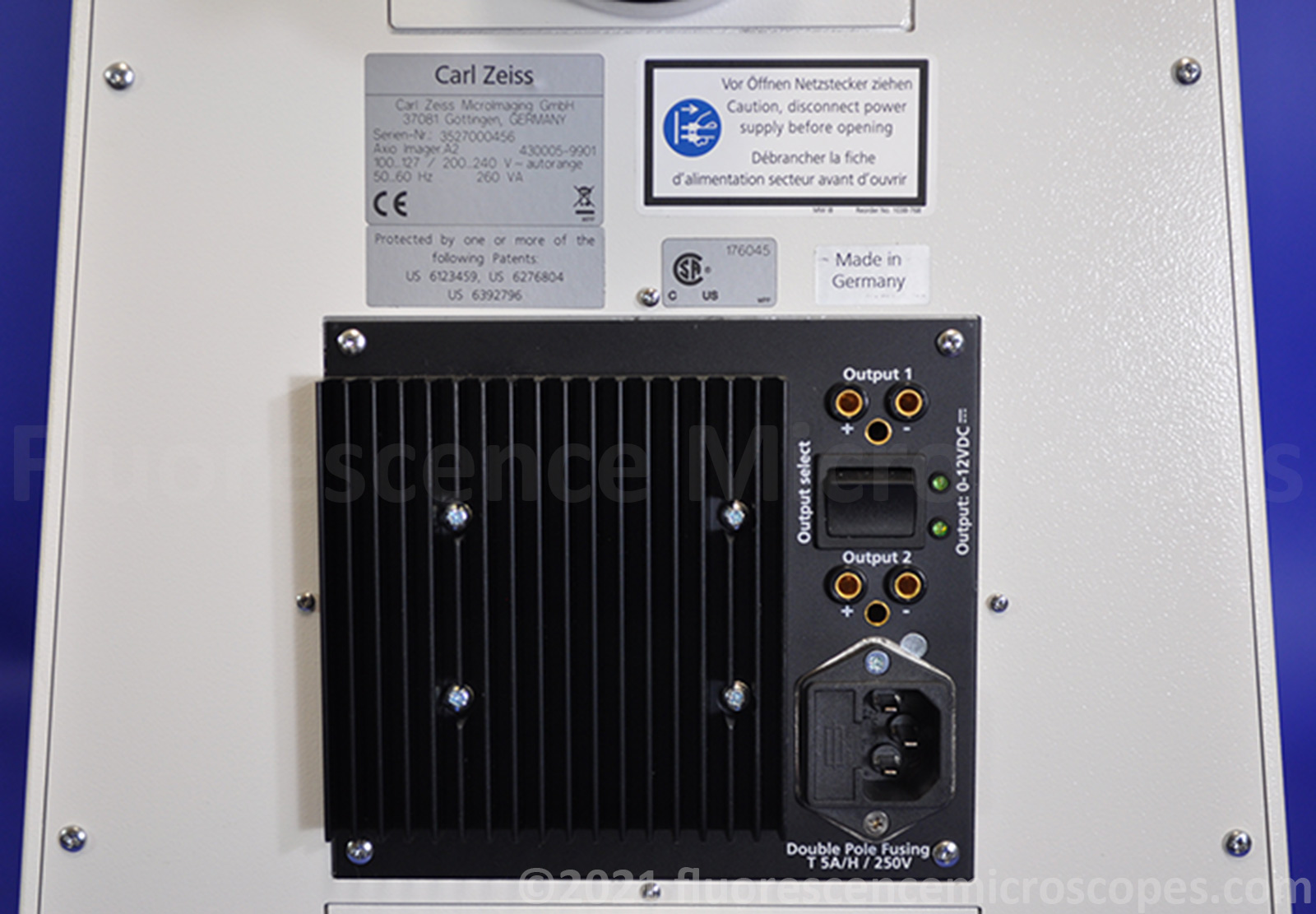

This microscope and external illumination source are automatic voltage adjustable. They work for both USA and European voltage sources

Optional Accessories:

We have a wide variety of optional scientific cameras, both monochrome and color, with and without Peltier cooling

Good Value:

When comparing prices, keep in mine the extras that we are providing.
We are including a one year warranty, money back guarantee, and free shipping that are value added additions not given by most resellers.
We have carefully refurbished this item and completely tested all functionality. Everything is working well and as designed

User Manual and Instructions:

Upon purchase, we will email links to the user manuals / instructions
