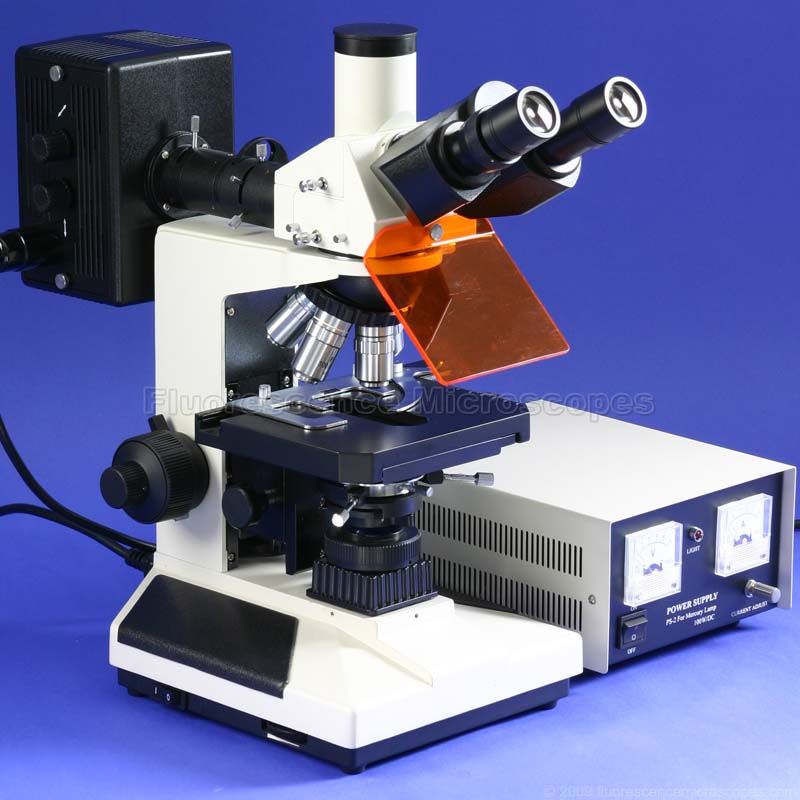

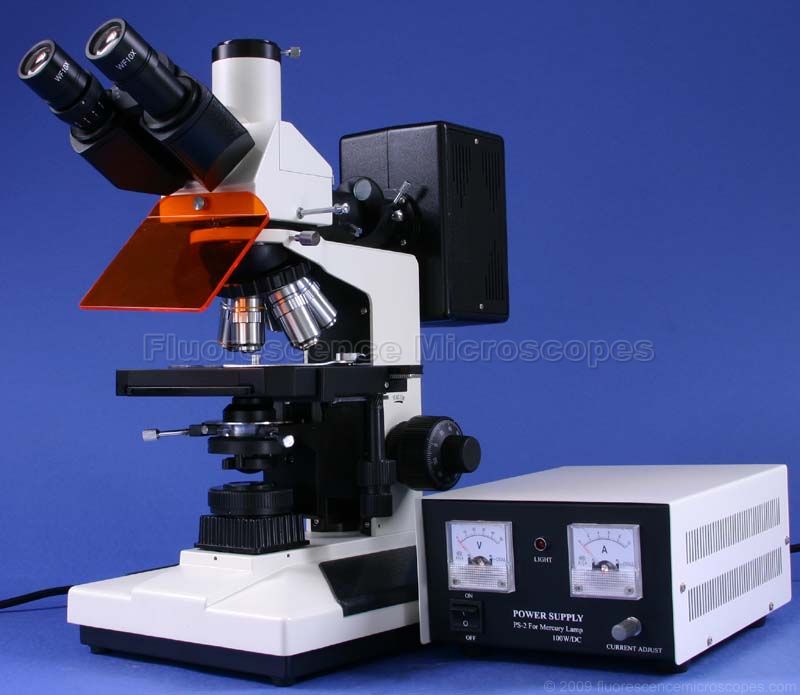

Upright Epi-Fluorescence
Incident Light Excitation
Trinocular Usb Microscope
+ 3Mpixel Usb Camera + Case

• Also Capable of Transmitted Light,
•  Bright-Field Microscopy.
• Compare to Similar Units costing $20,000 with Name Brands!
• Excellent Bright and Clear, High Contrast Images through High Quality Optics.

Camera Equipment Included

• Ideal for Advanced Biomedical Research, Research in Biology, Cytology, Oncology, Haemotology, Genetics, Immunology, Environmental Protection, Microchemistry, Analysis of Sedimentary Rock, and Inspection of Impurities in Semiconductors.

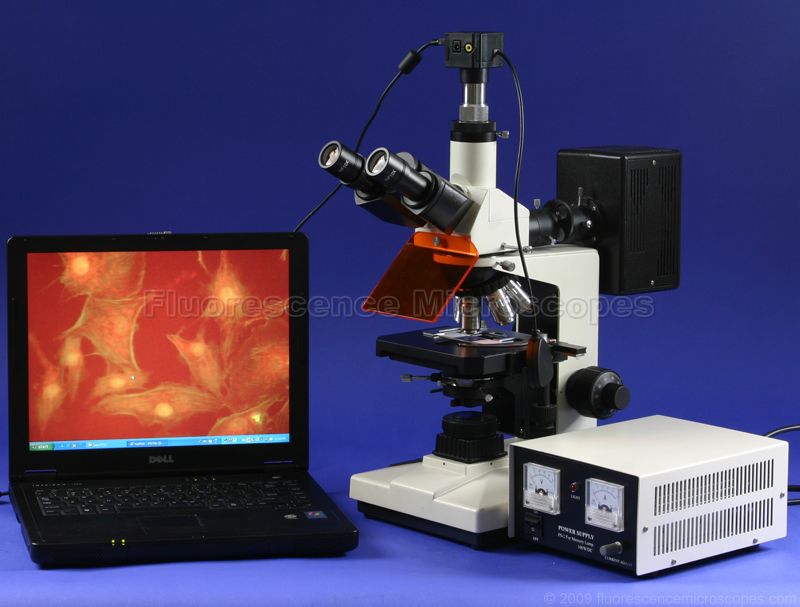

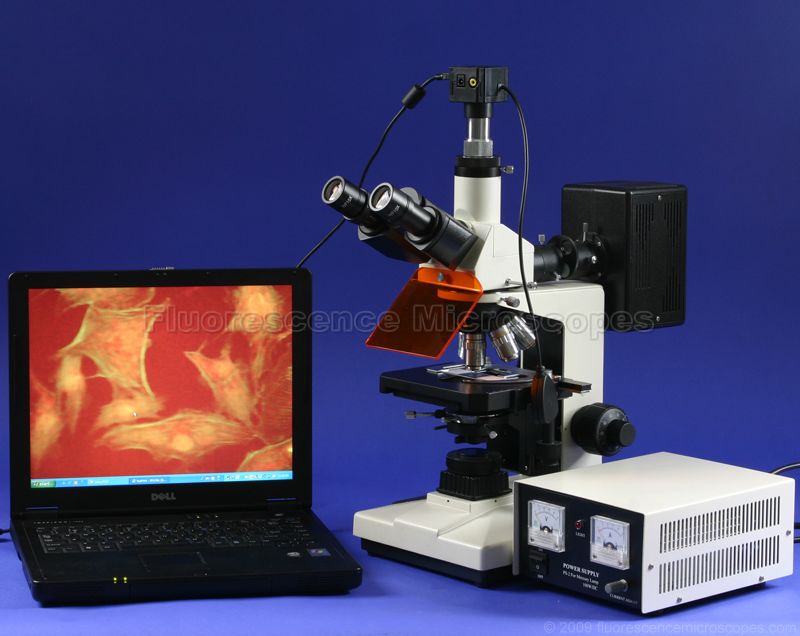

• High Resolution 3.1 MegaPixel Digital Camera System.
• Complete Digital Microscopy Solution Included.
• Capture high resolution digital microscope images, 2048×1536 pixels.
• View and record full motion live video microscope images. Frame size options for video mode: 2048X1536 (up to 11 FPS, depending on PC), 1024 X 768, 640 X 480, 512 X 384.
• Computer connected digital microscope camera connects via USB2.0. Includes USB cable and MS Windows software.
• Color DSP built into camera provides sharp quality color images. Image sensor size is half inch.
• Includes measuring capability with the software.

Carrying Case

• BONUS: Includes a Carrying Case with Precut Foam for safe transportation of your precision instrument.

Eyepieces and Magnification

• Four Fluorescence Magnifications: 40x, 100x, 250x, and 400x.
• Two Fluorescence DIN Objectives: 25x (0.65 NA, 0.62mm Working Distance), 40x (Glycerin Immersion or can use Dry, 1.0 NA, 0.25mm W.D.).
• Optional (Not Included): 100x Fluorescence DIN Objective, 1.25 NA, 0.18mm W.D., Glycerin.
• The BrightField 4x and 10x Objectives can be used to Observe Fluorescence Images. For Higher Magnifications, the Special Fluorescence Objectives are used.
• Four BrightField Magnifications: 40x, 100x, 400x, and 1000x.
• Four Plan DIN BrightField Objectives: 4x (0.1 NA, 17.9mm W.D.), 10x (0.25 NA, 8.8mm W.D.), 40x (0.65 NA, 0.56mm W.D.), 100x (1.25 NA, 0.33mm W.D., Oil Immersion).
• Eyepiece Set Included: Wide Field 10x.

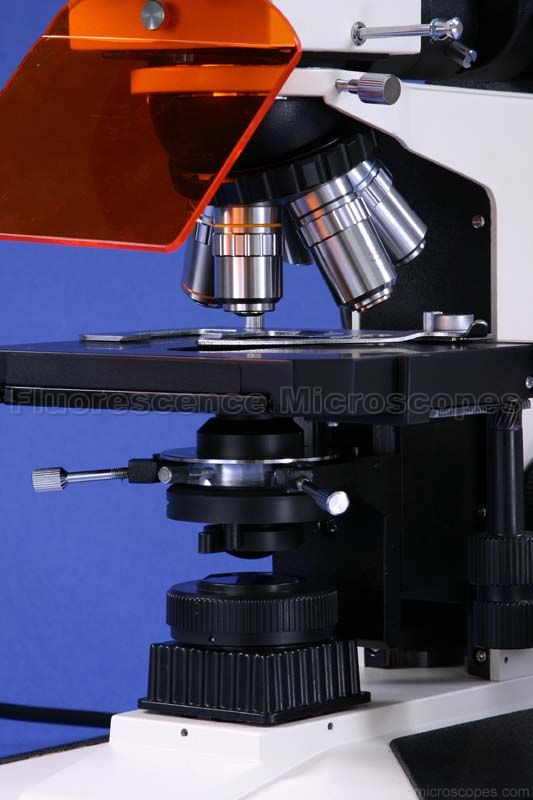

• Spring Loaded 25x, 40x, and 100x Objectives to Protect Slides.
• Reverse Facing Quintuple Nosepiece! A Better Design that allows Easier Access to the Slides since Objectives are Pointed Out of the Way!

Illumination

• Fluorescence Light Source: Super High Pressure Mercury Lamp (100W DC). Mounted to the Rear and Enclosed in a Sturdy Metal Housing.
• External Power Supply for Mercury Lamp: 100W DC with Current Adjustment Knob and Volt / Amp Analog Gauges.
• The Arc of the Mercury Lamp is Easily Centered by using Two Lamp Positioning Knobs on the Lamp Housing.
• Epi-Fluorescence Illumination System: Blue and Green Excitation Fluorescence Filter Cubes.
• BLUE Fluorescence Excitation Dichroic Filter Cube: Excitation Spectrum 420 – 485nm, Emission Filter 515nm.
• GREEN Fluorescence Excitation Dichroic Filter Cube: Excitation Spectrum 460 – 550nm, Emission Filter 590nm.
• Optional – Not Included: Violet (V) (Purple) Fluorescence Excitation Dichroic Filter Cube: Excitation Spectrum 395– 415nm; Emission Filter 455 nm.
• Optional – Not Included: Ultra-Violet (UV) Fluorescence Excitation Dichroic Filter Cube: Excitation Spectrum 330 – 400nm; Emission Filter 425 nm.
• Other Filter Spectrums can be Special Ordered. Contact us for Details and Costs.
• 3-Position Fluorescence Filter Cube Slider Assembly: Blue Filter, Green Filter, and No Filter for Brightfield Microscopy.
• BrightField: Transmitted Light Source: Variable Intensity 6V/20W Tungsten Halogen Base Illumination.
• BrightField: Koehler Illumination System with Focusable Field Diaphragm on Base to allow for Better Control and more Efficient Use of Light Source.

Head – Interpupillary Distance – Diopter

• 30 Degree Inclined Trinocular Head (Easier to View than 45 Deg.).
• Adjusts to the Distance Between your Eyes: 53 to 75mm InterPupillary Distance.
• Diopter Adjustment to Correct for Your Specific Vision Needs.

Condenser – Iris – Filters

• Fluorescence Light Condenser with Condenser Movement Knob.
• Fluorescence Light Field Diaphragm with Centering Adjustment Knobs.

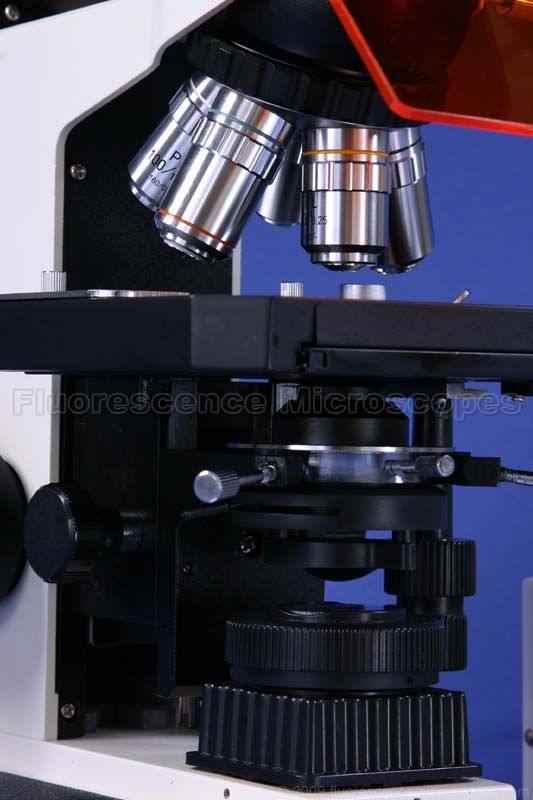

• BrightField: 1.25 N.A. Abbe Substage Condenser, Condenser Movement Knob, Iris Diaphragm, Swing-Out Filter Holder, and Condenser Alignment Screws.
• BrightField: Four BrightField Filters Included: Blue, Green, Yellow, Frosted White.

Stage Specifications

• Large Graduated Mechanical Movable (up/down and longitudinal Y-direction) Stage: 160 x 140mm.
• Low Position Coaxial X-Y Slide/Stage Movement Knobs – Range of Movement: 75mm (X-Direction – Slide Movement) x 50mm (Y-Direction – Stage Movement).

Focusing

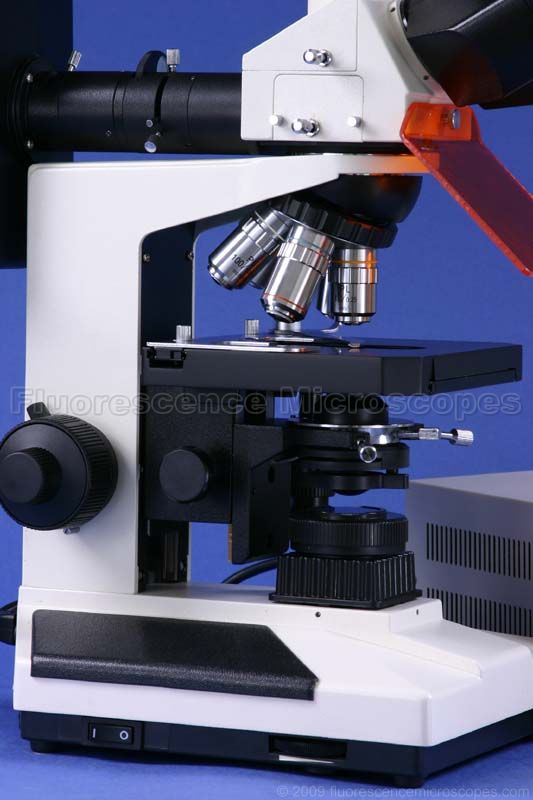

• Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.
• Coarse Adjustment Travel Range: 22mm. (Stage Movement Distance Up/Down).
• Fine Adjustment Division: 0.002mm.
• Adjustable Lock Ring Stop to Limit Coarse Range to Protect Slides.
• Tension Adjustable Coarse Focusing.

Frame – Base – Size – Weight

• Total Overall Height of Microscope: 420mm.
• Instrument Weight (including power supply): 23.5 lbs.

Included Items

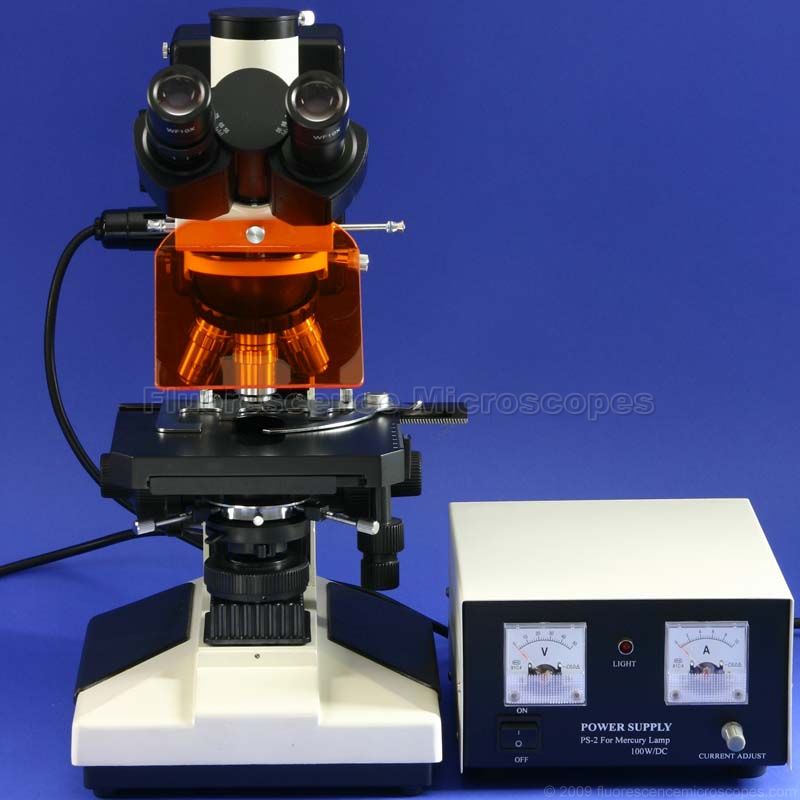

• Orange stray light protection eye guard on front of microscope.
• Includes: Two Extra Mercury Bulbs (3 total included, for fluorescence observation).
• Includes: Instruction Manual, Dust Cover, Two Extra 6V/20W Bulbs (for brightfield), and Extra Fuse.
• Includes bottle of standard immersion oil for use with 100x brightfield objective. Includes bottle of glycerin for the 40x glycerin immersion objective.

Other Specifications

• Manufactured under ISO: 9001 Standards.
• 110 VAC Power Requirement (Contact us about 220V availability).
• High Quality Solid Construction!
• Precision Made Glass Optics!
• Brand New, Never Used!

Manufacturer’s Warranty

• Warranty is 1 year on all microscope equipment.
• The microscope warranty covers problems arising from normal usage.
• We will repair or replace your defective microscopy equipment as needed during the warranty period.
