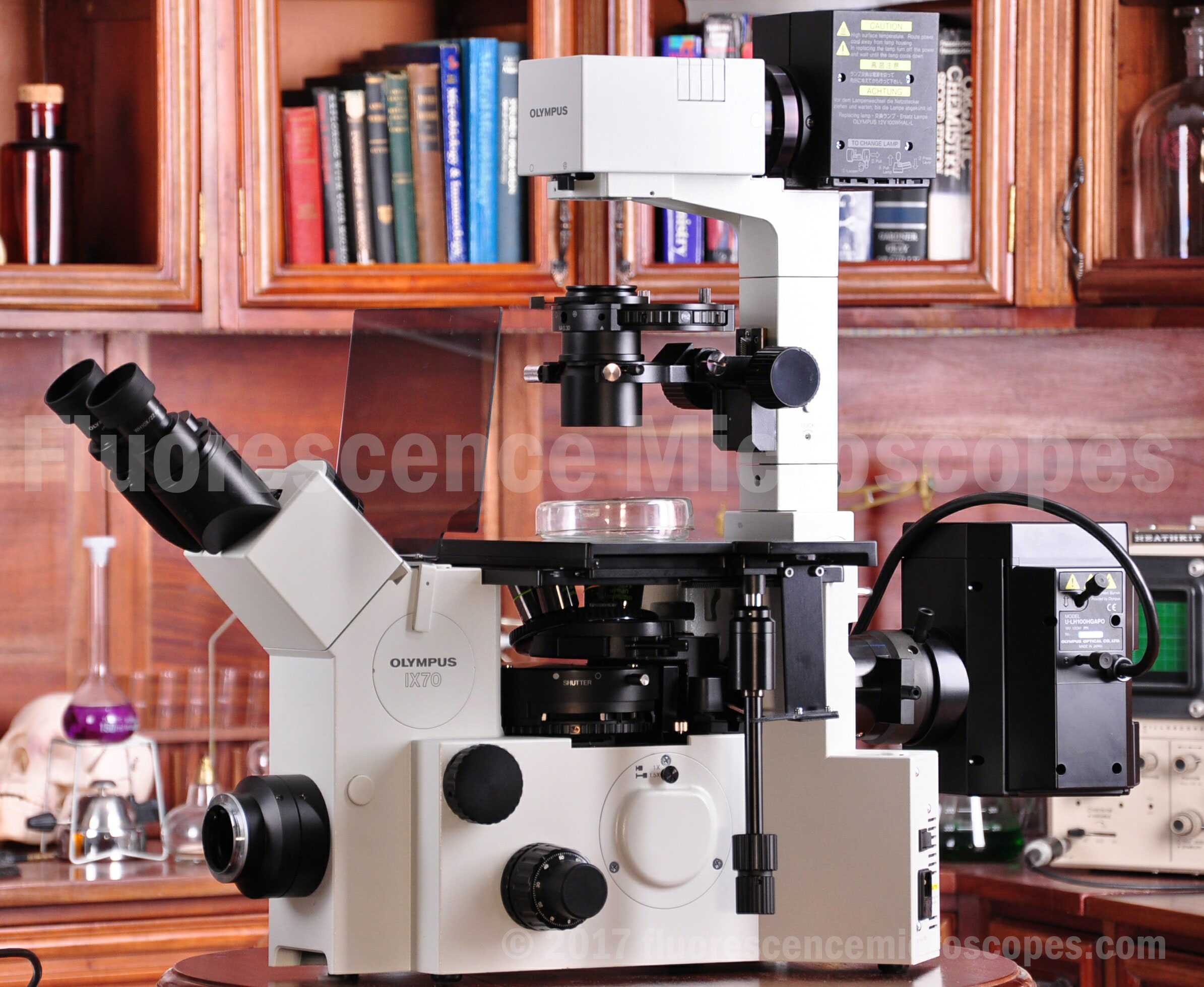

Olympus Model IX70
HBO 100W APO
Phase Contrast Microscopy
Inverted Cell Culture
Fluorescence Microscope

Main Features:

• Frame Marking: Model IX70-S8F2

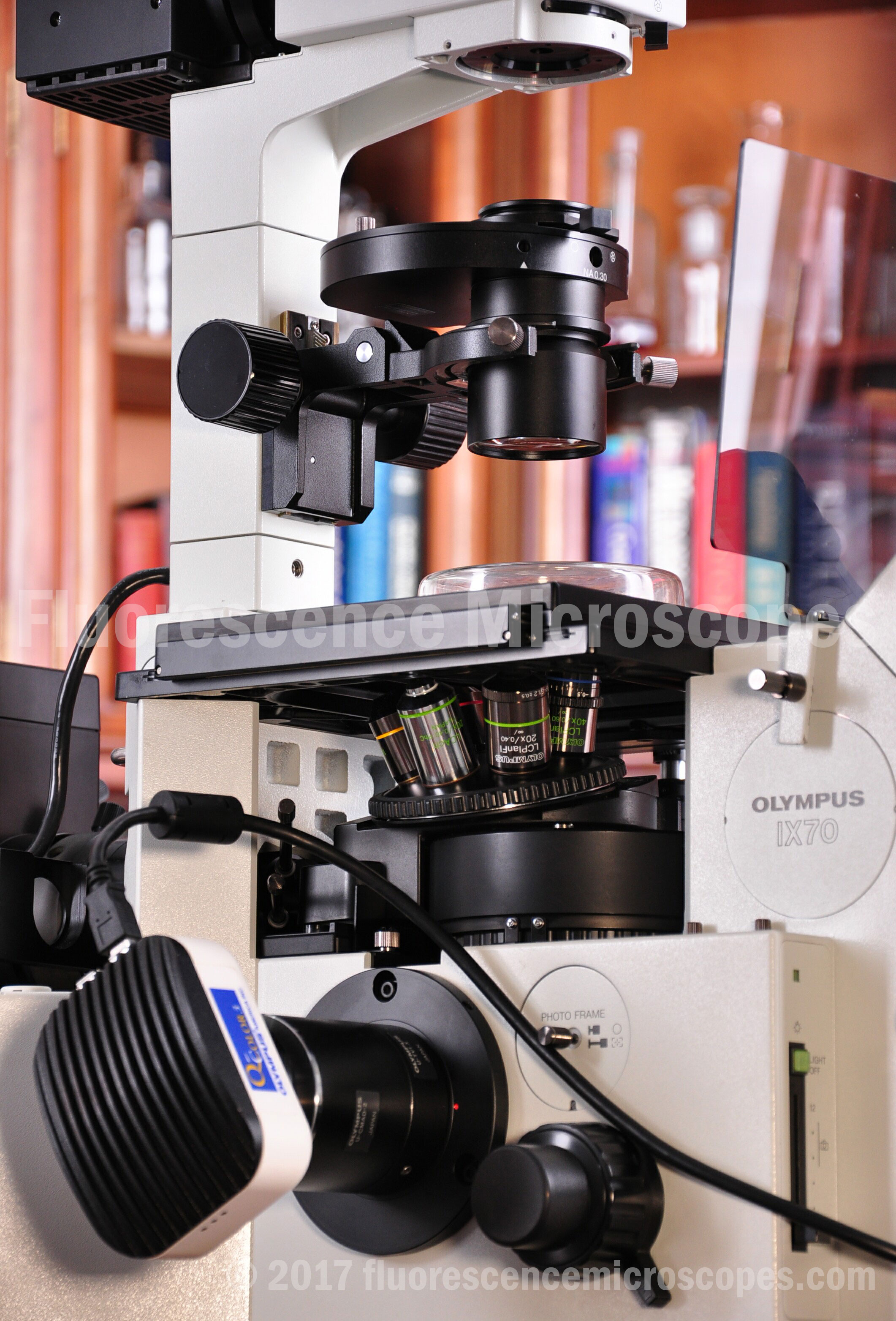

• Six position nosepiece to hold objective lenses.
• U-BI90CT. Binocular Viewing Tube. The centering telescope part is stuck and doesn’t easily move into place. We are including a centering telescope eyepiece (non-Olympus) as an alternative to use for centering the phase rings. If you see a half moon on one side of viewing field, then be sure to rotate the CT knob more.

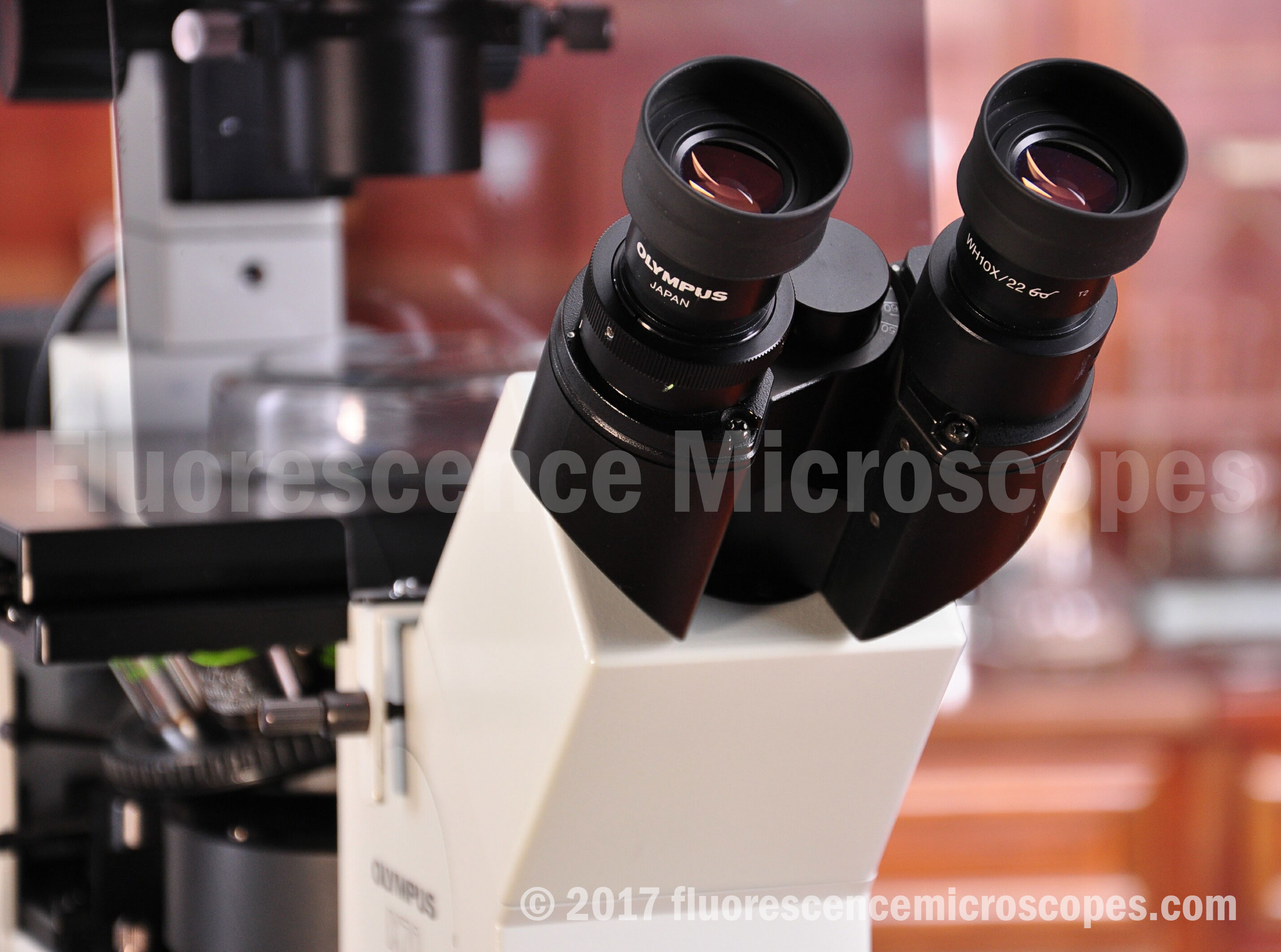

• Eyepieces: WH10X/22 High Eyepoint with ability to use eyeglasses when viewing.
  Rubber cupping eyeguards with ability to block out extraneous illumination for better fluorescence viewing.
• Magnification Changer built into frame: 1x/1.5x.
• XY Mechanical stage for moving specimen vessel.
• Zero Drift Knob Included. This mounts to stage and keeps the X-Y movement from drifting.

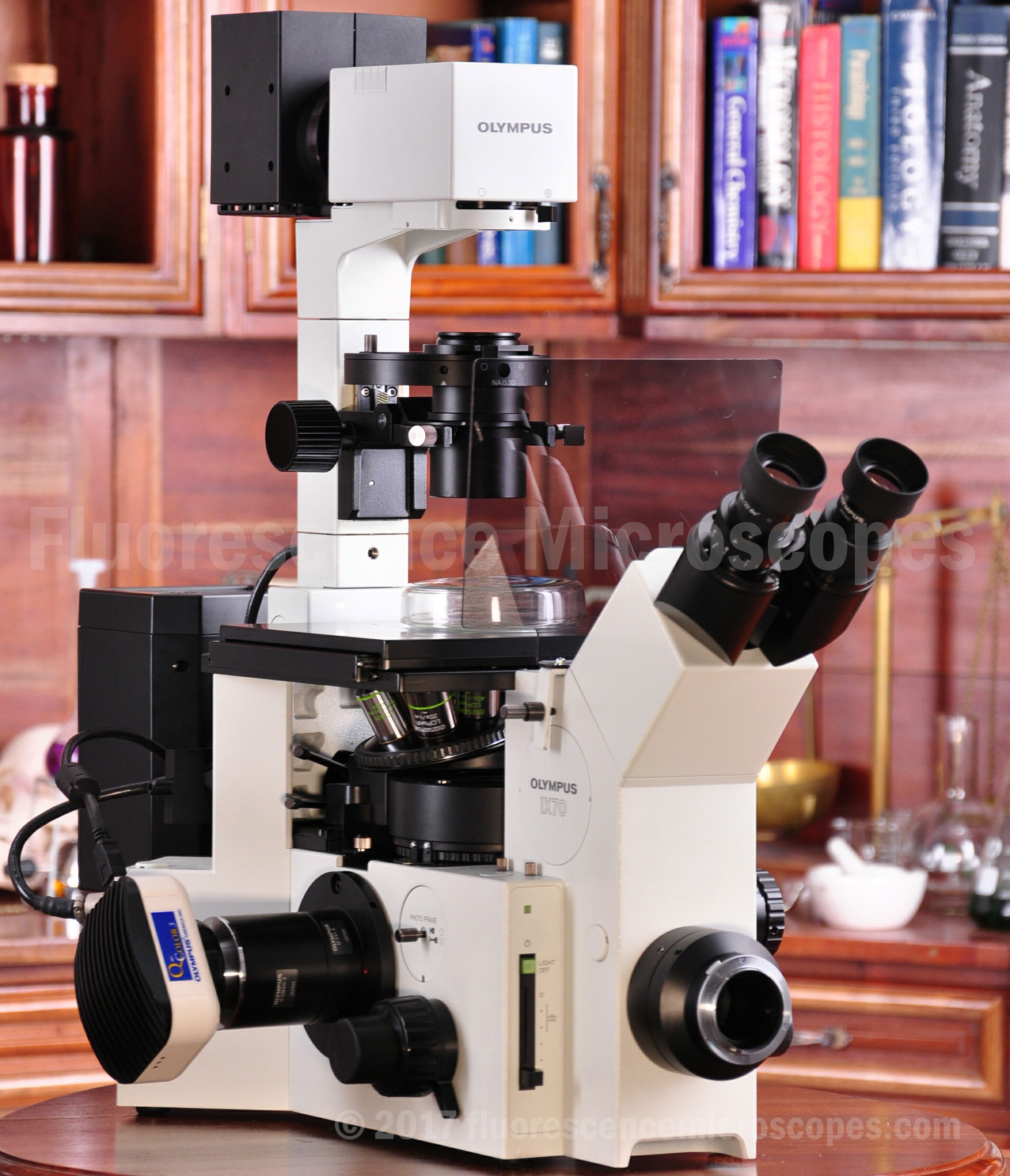

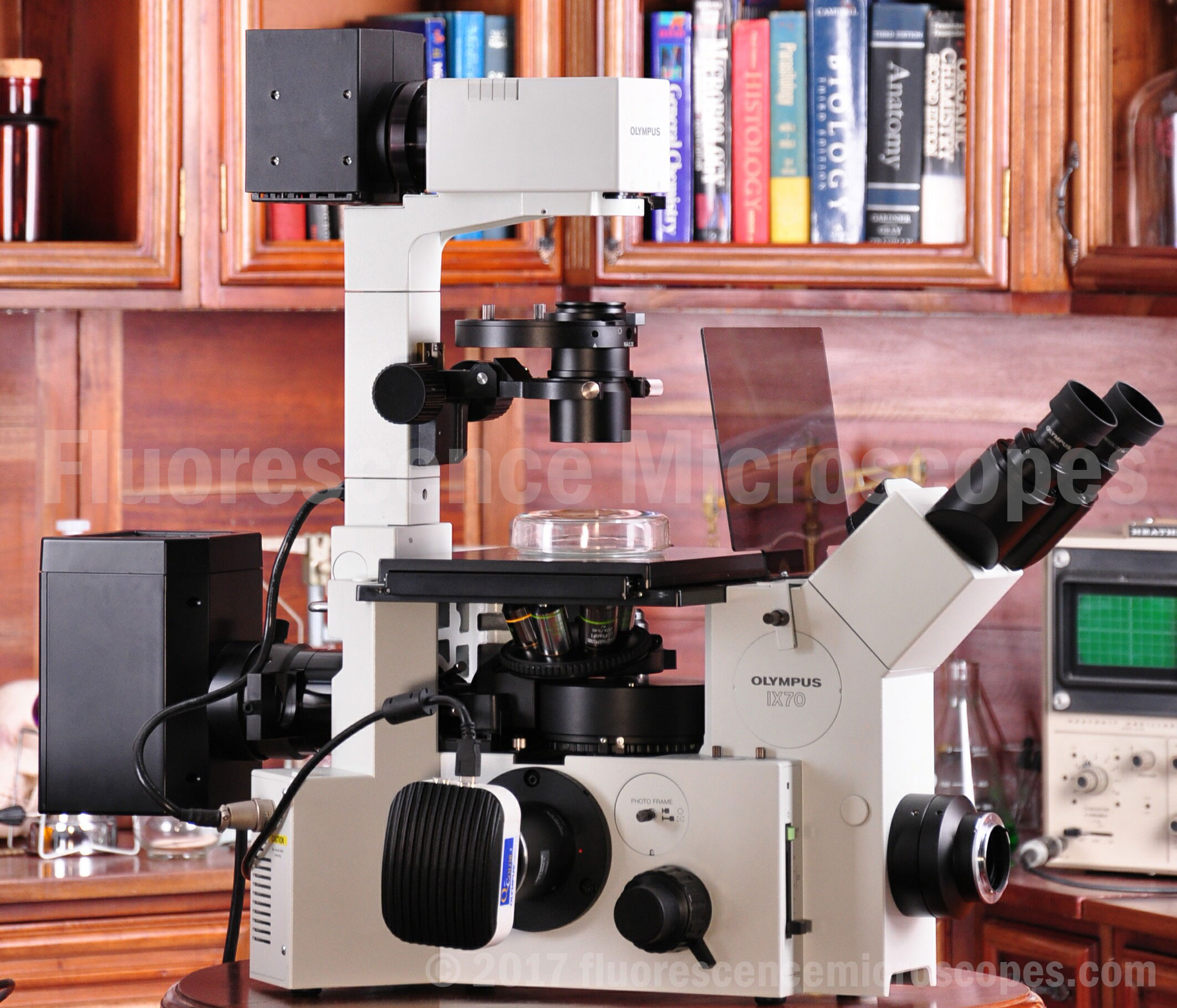

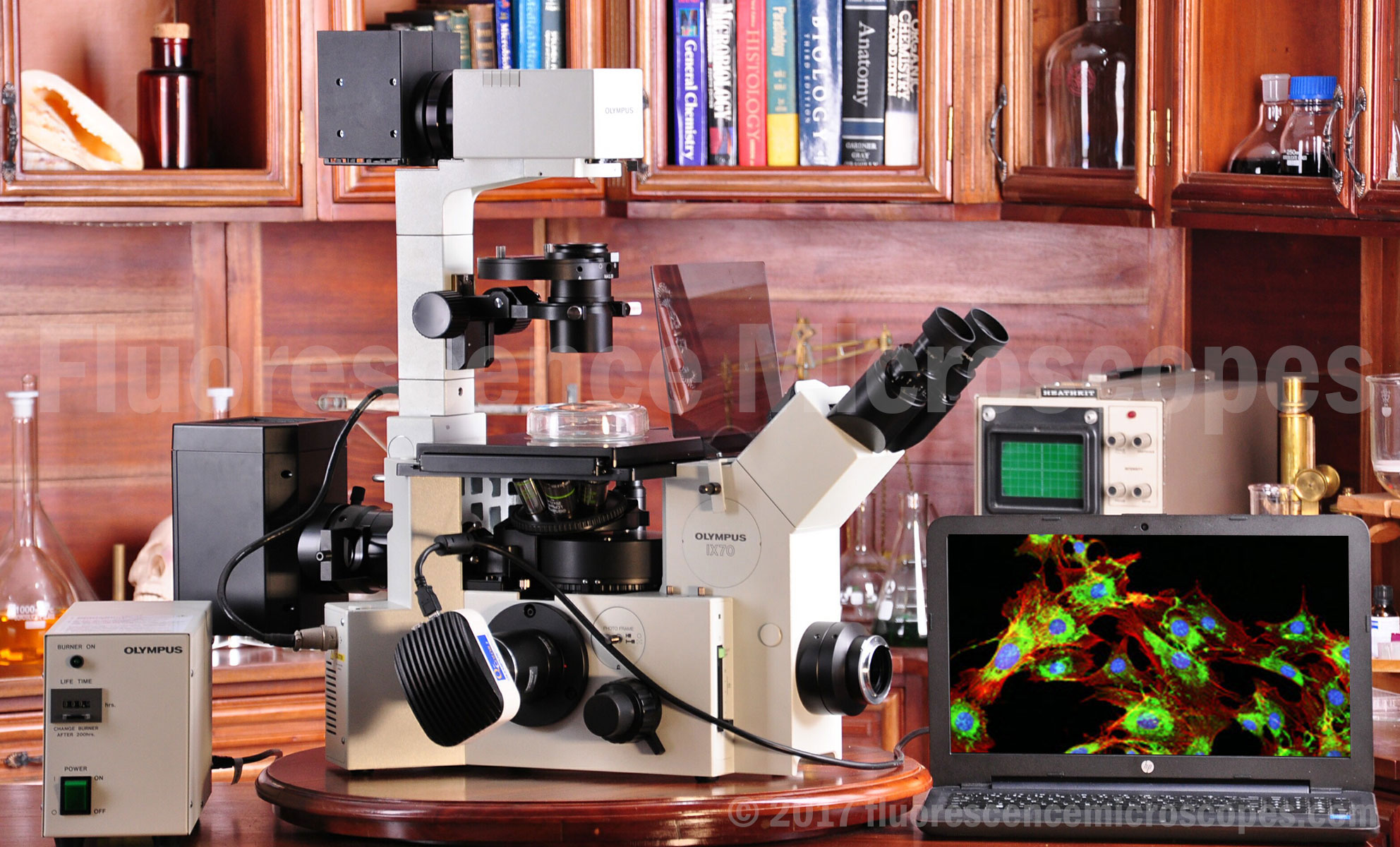

• DOES NOT INCLUDE CAMERA OR LAPTOP. Camera is shown in images to demonstrate that one can be connected.



Fluorescence Illumination:

• 4-Position Fluorescence Reflector Turret. IX-RFAC.
• Fluorescence Lamp Housing: U-LH100HGAPO, 19V-100W, CE. This is the higher quality apochromatic lens version for better color correction. Utilizes an included HBO 100W Mercury bulb.
• IX-RFA. Reflected Light Vertical Illuminator.
• Mercury Power Supply: Depending on your Voltage needs (120VAC or 220VAC), we will change this power supply accordingly.
• UV Shield for blocking extraneous UV light. These are normally missing.
• Includes the proper metal blocking shield on the reflector module. This is normally missing which would allow UV light to escape.

Transmitted Illumination:

• IX-ILL100LH 100W Halogen Transmitted Illumination Pillar. Ability to tilt back 30 degrees.
• Halogen Lamp Housing: 12V-100W.

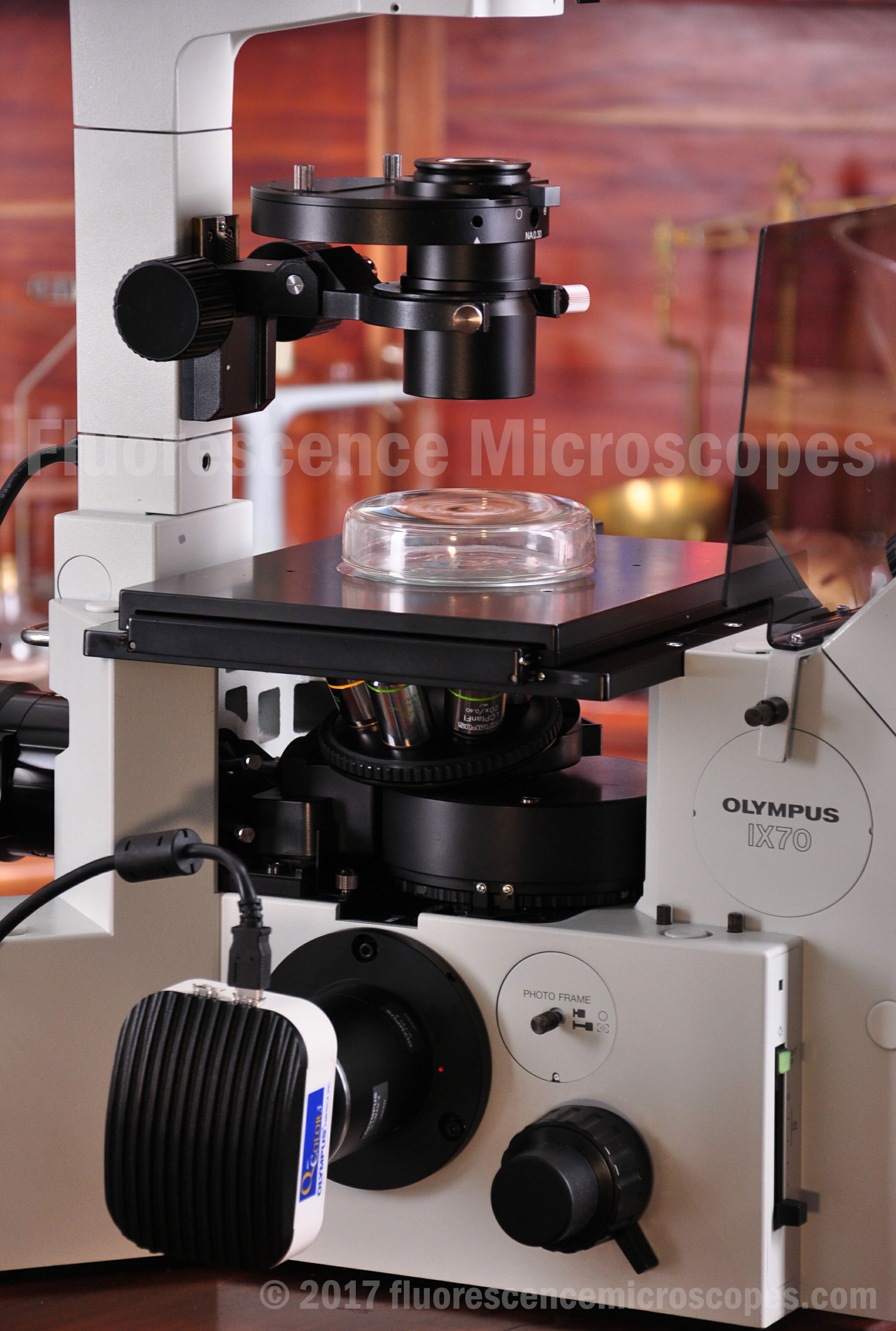

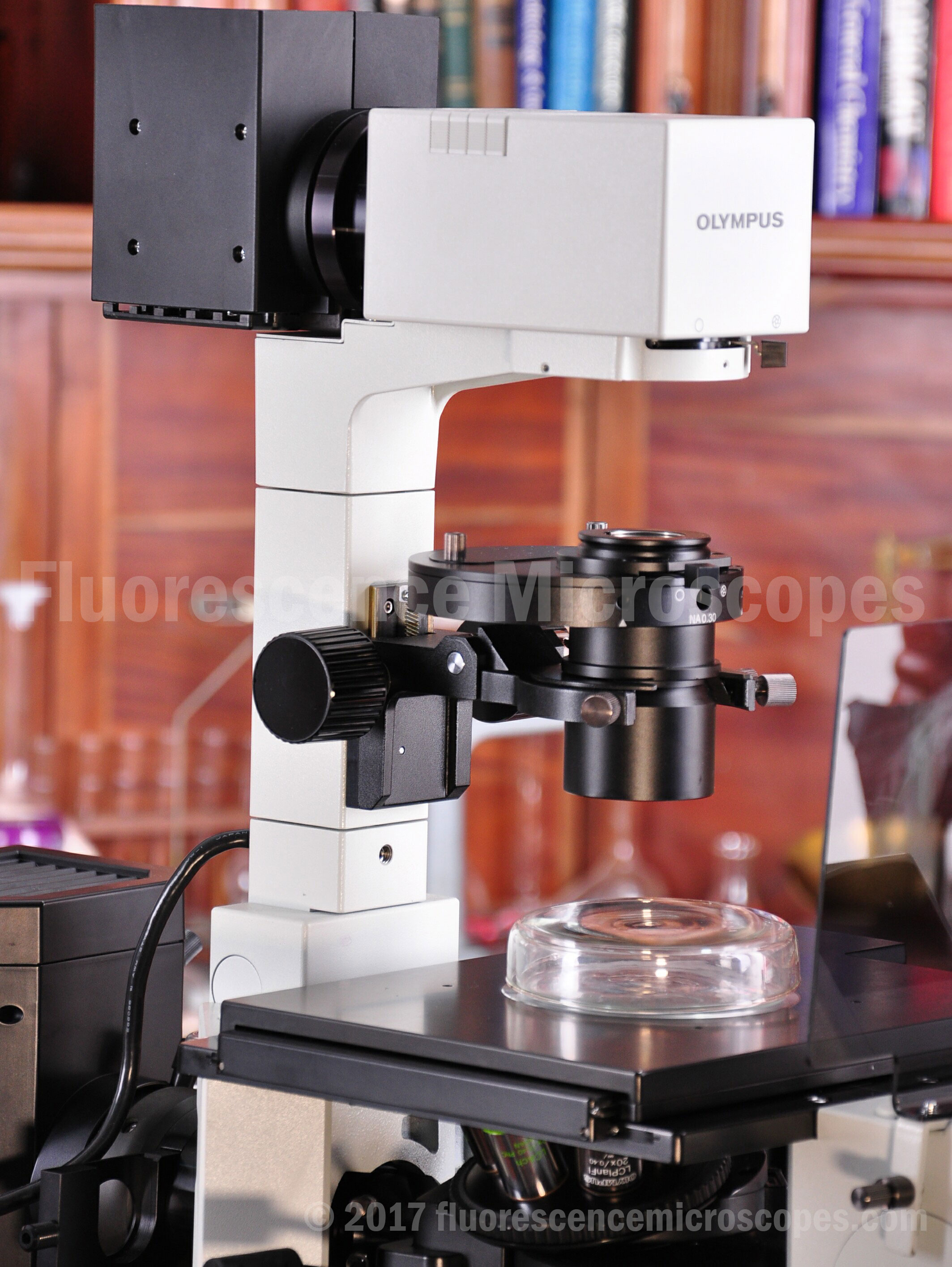

• Turret style condenser IX-ULWCD, N.A. 0.30, with settings: Ph1/PhC, Ph2, BF, PhL. Working distance for condenser 73mm. With adjustable aperature iris diaphragm.
• Transmitted Light Power Supply built into frame.
• Transmitted Light Filters: LBD-IF light balancing daylight interference filter and frosted filter

Other Specs:

• Original Olympus 3mm hex screwdriver with Olympus 1.5mm hex screws for centering phase rings in condenser.

Included all needed power cords.

Objective Lenses:

• UPlanFl 4x/0.13, PhL, Infinity/-.
• CPlanFl 10x/0.30, PhC, infinity/1.
• LCPlanFl, 20x/0.40, infinity/. CAP-G1.2 +/-0.5. (not phase)
• LCAch 20x/0.40, PhC, Infinity/1.
• LCPlanFl 40x/0.60, Ph2, infinity/. CAP-P1.1 +/- 0.5. Defect Note: This has some internal cracking on a diaphragm. However, this is not in the optical path and will not affect the optical performance. It is only being noted for completeness as all objectives are inspected and anything unusual noted.

Dichroic Fluorescence Filter Cubes:

• Two Filter Sets Included (contact us for different filters):

FITC / EGFP. By Chroma. U-M41001. Ex. 480/40, dichroic 505 lp, em. 535/50. Moderate wear.
Includes jpg.

Wide Green (by Olympus, U-MWG, ex. 510-550, dichroic 570, em. 590 long pass, no visible wear).

Camera Ports:

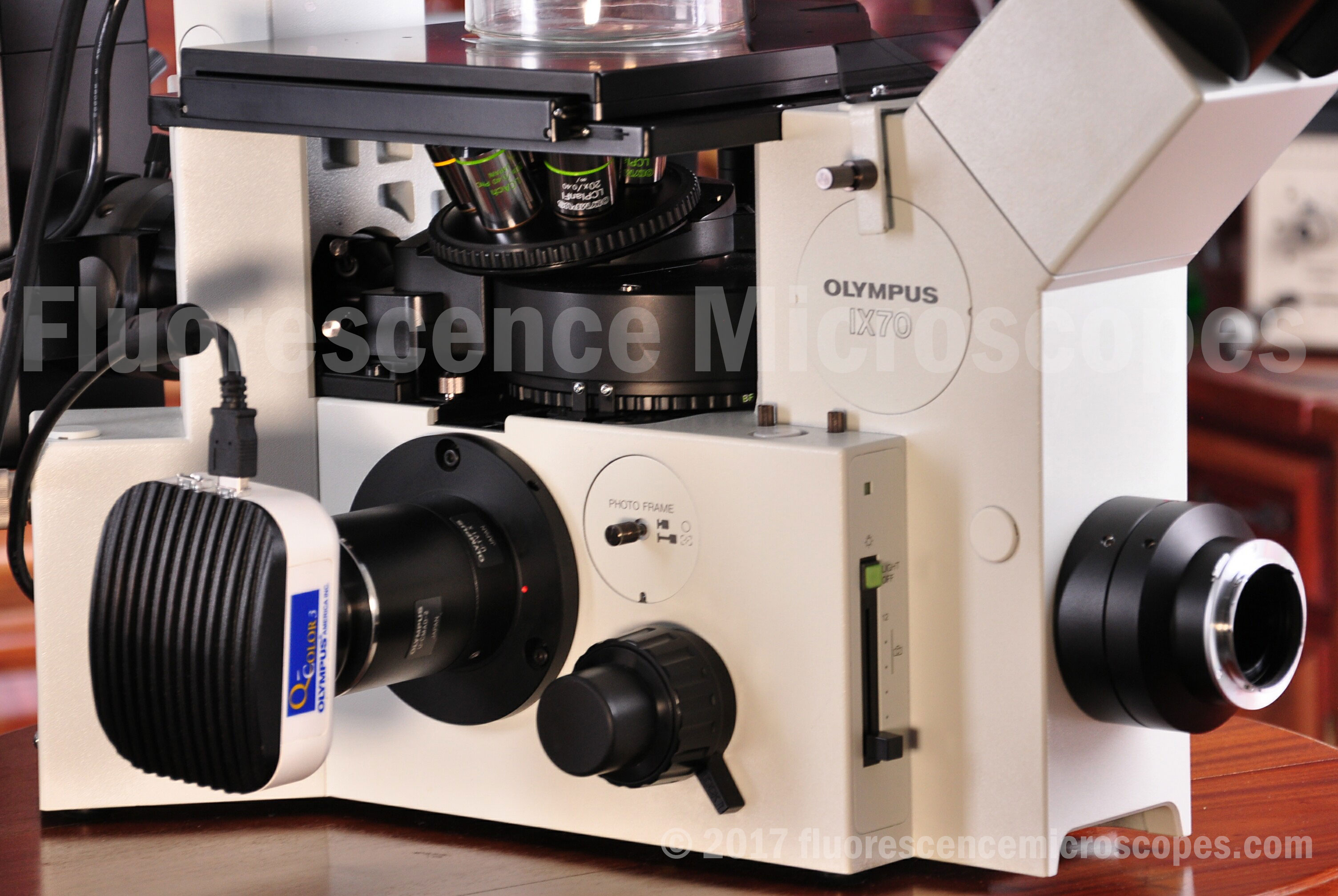

• Two camera ports: Side photo port and front SLR port.
• Light path selector knob. Goes from SLR port (80%), 100% eyepieces, Side Port (80%) eyepieces 20%.
• Side camera port has an original Olympus c-mount adapter
• SLR camera port on front of frame has a t-adapter ring. Different versions of camera models can be used by changing this t-adapter to fit the camera brand being used. For example, a Canon EOS Rebel DSLR digital SLR camera (not included) can be attached.

Comments:

• This microscope is in great condition.

However, we try to note any potential issue so buyer if fully informed. We found that the focus lock stop is working acceptably well. However, it seems a little rough to set and turn. When you set it, you can force your coarse focus to keep turning if you try. It will properly “hit” the lock stop, and you can tell that you have gone to the extents the lock stop was set at, but if you rotate the coarse focus harder, it will push the lock stop and keep turning. This is an observation only and is not considered to be anything that is important. The normal fine and coarse focusing work exceptionally well. The tension adjustment for coarse focusing works great.

Quality:

• This is a high quality Olympus (Made in Japan) optical instrument. We also sell Chinese made fluorescence microscopes but the quality is substantially lower. We highly discourage buying the Chinese microscopes due to the problems that incur after the sale.

Testing Results:

This microscope was fully tested. Results are as follows:
All functions were found to be in proper working order.

• Brightfield – Koehler illumination was set properly, with all adjustments and centering being properly achieved.
• Phase Contrast – All objectives performed well under phase. Images achieved were good and as expected.
• Incident Reflected Fluorescence – HBO Bulb was properly centered obtaining bright, clear, and uniform illumination distribution across the complete field of view.

Fluorescing Achieved –
FITC

• –40x objective – Obtained excellent image.
• –20x objective – both 20x Obtained excellent image.
• –10x objective – Obtained excellent image.
• –4x objective – Obtained good image.

TRITC

• –40x objective – Obtained excellent image.
• –20x objective – both 20x Obtained excellent image.
• –10x objective – Obtained excellent image.
• –4x objective – Obtained good image.

Optional Accessories:

• We have a wide variety of optional scientific cameras, both monochrome and color, with and without Peltier cooling.
• Optional DIC configuration.
• Other objectives and Filters can be configured.
• Brand new replacement 100W HBO Mercury Bulbs and Halogen bulbs are available.
• Brand new Chroma hard coated filter cubes with lifetime warranty may be added. Cost is USD $750/set for the dichroic filter (emission filter, dichroic mirror, barrier filter) and included blank cube.

Fair Market Value – Discount Price:

• Fair Market Value USD $14,000.00.
• Discount Price USD $11,000.00.
• We found very few complete comparable models for sale by others. They ranged from $12,000 to $14,000. We are pricing our unit significantly lower.
• In addition, we are including a one year warranty, money back guarantee, and free shipping that are value added additions not given by most resellers and should be added to the value.

User Manual and Instructions:

One Year Parts and Labor Warranty:
We warrant this Microscope to be free from defects due to normal usage in normal operating conditions for a period of one year. Camera equipment (if included) is given a three month warranty. Objective lenses are excluded from warranty.
Additional warranty on microscope may be purchased if desired.

We will repair or replace equipment at no charge, during the one year warranty period. Both parts and labor are included. Buyer is responsible for shipping costs BOTH ways, paying for shipping cost to our designated repair facility and shipping cost back to buyer. Bulbs are considered user replaceable items and not covered.

Warranty Excludes Objective Lenses:
Our warranty excludes the objective lenses. There are several reasons for this. First of all, if the objective is good, it will continue good performance unless there is some user or environmental abuse. Abuse can be from oil getting on a non-oil immersion lens, contact with a solution that degrades the cement around the glass, contact with other chemicals that may stain, etch or pit the glass, scratching the lens by incorrect cleaning methods such as cloths not of lens cleaning quality, damaging the lens by scraping it on slides or metal slide holders on the stage, dropping on a hard surface, subjecting the objective to extreme humidity causing internal mold or mildew, etc.
In addition, objectives can’t feasibly be repaired. If an objective is damaged so that the optical quality is significantly diminished, it is suggested to throw it away. One solution is to send it back to the factory and incur a repair fee equal to about half the price of a new replacement. That is usually cost prohibitive. We professionally clean the front and back lens, and the outside barrel of the objective. But we do not open them up. That should only be done by the factory under strict conditions and with optical laser alignment. Generally, when someone other than the factory messes with a lens, the performance may still be acceptable, but likely will be noticeably lower quality when compared side by side with a new lens. So since defective objectives are generally thrown away, and replaced with another one, there is no need to warranty them. The user can easily find a matching objective and replace it on their own.

Objective Lenses – Condition:
All objectives have been professionally cleaned.
All are guaranteed to be free from optical defects. If any defect is found, it will be clearly noted in the ad.
Our inspection of the objective lenses includes checking for the following:
lens cracking, pitting, lens cement not intact, internal oil damage or oil seepage, glass fogging, glass hazing, stains on optical glass, mold or mildew stains, and delamination (separation of internal lenses).

Condition of Equipment:
This reconditioned microscope is complete and in excellent working order and has been completely checked out and serviced.

Technical Sales and Support:
Most offerings of used microscopes are by simple flippers of equipment who have obtained defective and rejected microscopes from labs discarding the equipment. They resell exactly what they got, as they got it, and without any technical knowledge of it. You can rest assured when purchasing from us that we are professional dealers who are well trained to service and provide technical support of the microscopy equipment. We test, repair and refurbish all equipment to excellent working conditions. We are well trained and able to give you technical advice including pre-sale and post-sale support.

Microscope Training – Setup Support – Software Assistance:
Concerned about how to set up and operate this equipment? Need training? Need help with software for the camera? We can help. Contact us for more details.

Free Application Evaluation and Recommendation:
We strongly encourage all potential buyers to first contact us with regards to their specific application. In most situations, we need to customize certain features of the microscope in order to best fit the end user’s technical requirements. We want to ensure you have the correct and optimal configuration for your application.

Fluorescence Filter Sets – Customized:
We are dealers of both Chroma and Omega brands (Made in USA) of dichroic filters. Please contact us regarding the specific fluorophores you are using so we can be sure the filter sets provided are a proper match. Incorrect matching will give you poor quality or no visible fluorescing.

Free Worldwide Shipping:
Equipment may ship from Outside USA. We provide free worldwide shipping. The method of shipping may vary, depending on destination country, but may be via commercial air cargo. Not all countries will have door to door service. Contact us for further details so we can discuss shipping arrangements.

Customs Duty and Tax:
Any and all customs brokerage, customs entry, VAT and duty/tax are the responsibility of the buyer. Buyers in USA can contact us in advance to see if there are any entry fees.

Voltage Requirement:
Our equipment may show 110V and/or 220V external power supplies. Some power supplies are not Volt selectable. Depending on your country of final destination, and the Voltage supply, we may need to change the power supply shown in the ad to one that matches your power requirements. Contact us first with your Voltage requirement so we can be certain we have the required power supply if it needs to be changed from what is shown in the ad.

Payment Method Accepted:
We generally accept purchase orders from government, educational, and industrial facilities in some countries. For some preapproved orders, we accept credit cards. We also accept bank wire (telegraphic) transfers. Contact us for details. We properly screen all buyers to protect against fraudulent transactions. We reserve the right to deny transactions deemed to be potentially fraudulent.

Financing Available for Select Customers:
If you are unable to afford the full purchase price, please contact us about financing details. Our financial partner offers 90 Days “Same as Cash” and deferred payments up to 6 Months.

Rental:
We have rental plans available for some companies and universities. Contact us for details.

Money Back Guarantee:
We guarantee you will be satisfied with your purchase. If in the unlikely event you are not satisfied and want to return your item, please contact us within 14 days of receiving it. We will then arrange to get you details about how to return it. We have no restocking fees but the actual cost we paid for shipping will be deducted from refund amount. We give free shipping, but for returned items, this cost will be charged to buyer.
