Leica DMIL
Inverted Trinocular
Phase Contrast
Integrated Modulation Contrast
Fluorescence Microscope

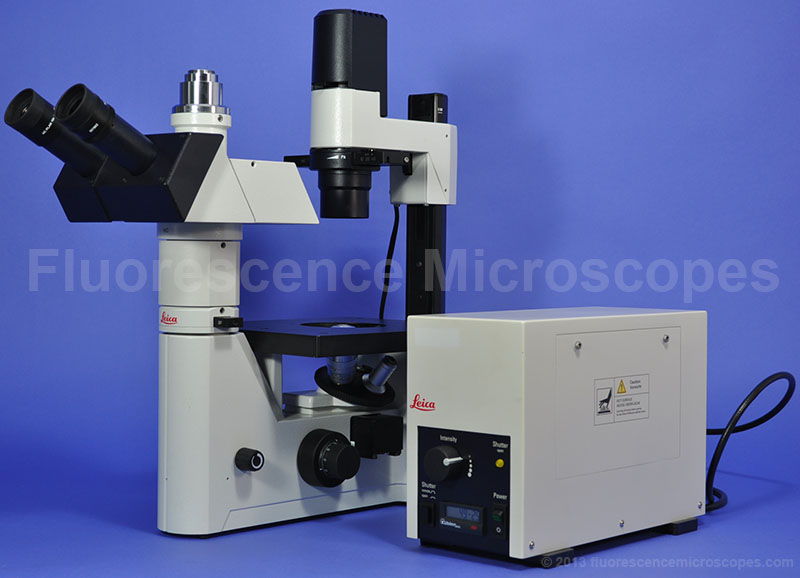

Fluorescence Illuminator:

• Type EL 6000 Fiber Optic Illuminator.
• External Box containing lamp and power supply for the fluorescent system.
• Input: 100-240 VAC. 50-60 Hz.
• Marked: Leica Microsystems CMS GmbH. Made in Germany.
• CE Certification
• Fiber optic cable output. This eliminates the need for centering the bulb in a normal lamp housing.

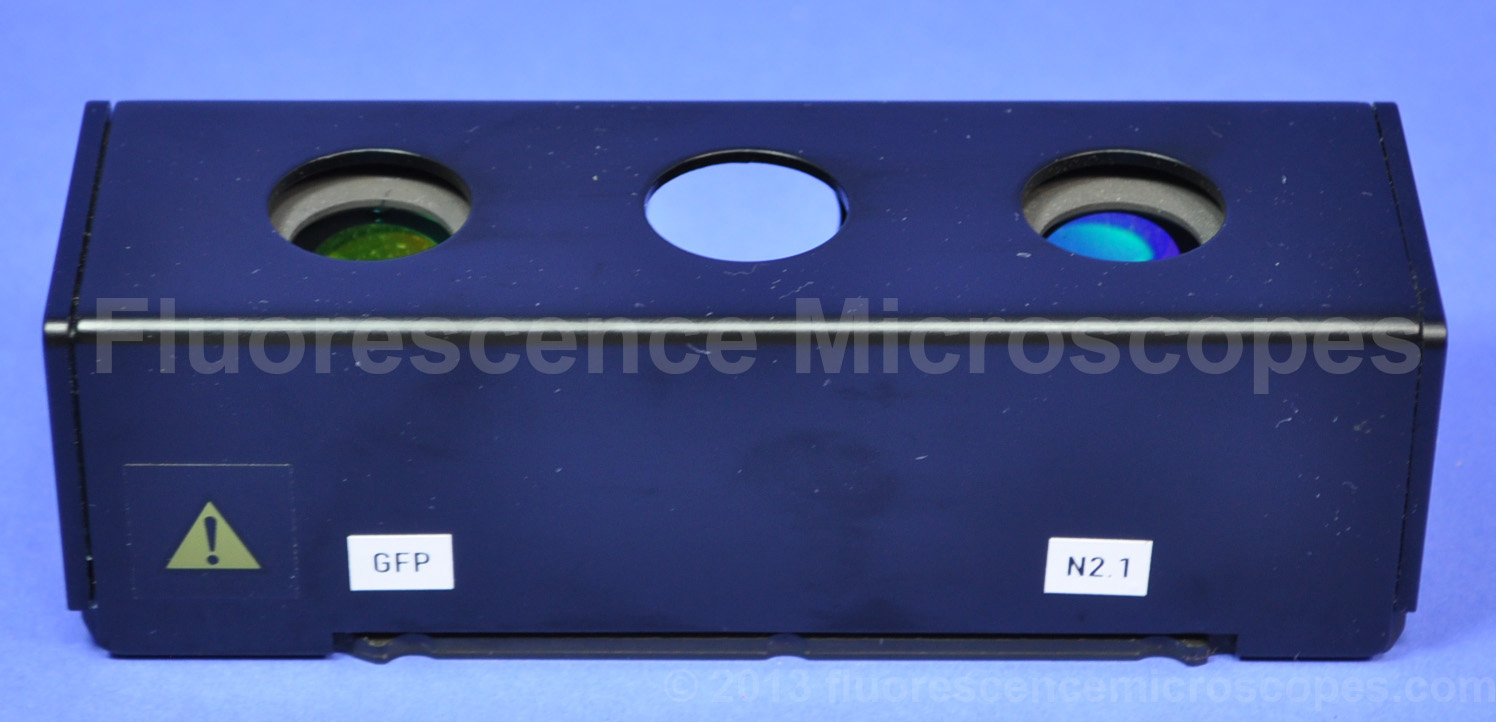

Fluorescence Dichroic Filters:

• 3-Place cube with two filters and one open space.
• The open place is best used for phase contrast and brightfield microscopy.

Filter Number 1: GFP

• Blue excitation light.
• Excitation Filter: BP 470/40
• Dichromatic Mirror: 500
• Suppression Filter: BP 525/50
• GFP is blue fluorescence filter for viewing green color.

Filter Number 2: N2.1

• Green excitation light.
• Excitation Filter: BP 515-560 nm
• Dichromatic Mirror: 580 nm
• Suppression Filter: LP 590 nm
• N2.1 is green fluorescence filter for viewing red color.

Both of these filters appear to be in excellent condition.

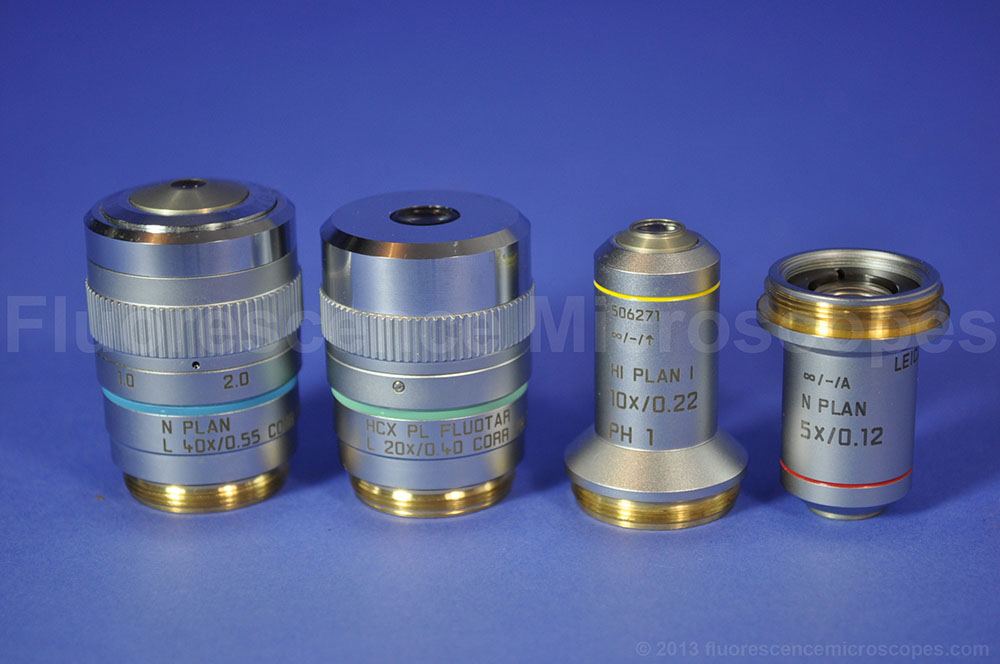

Objectives:

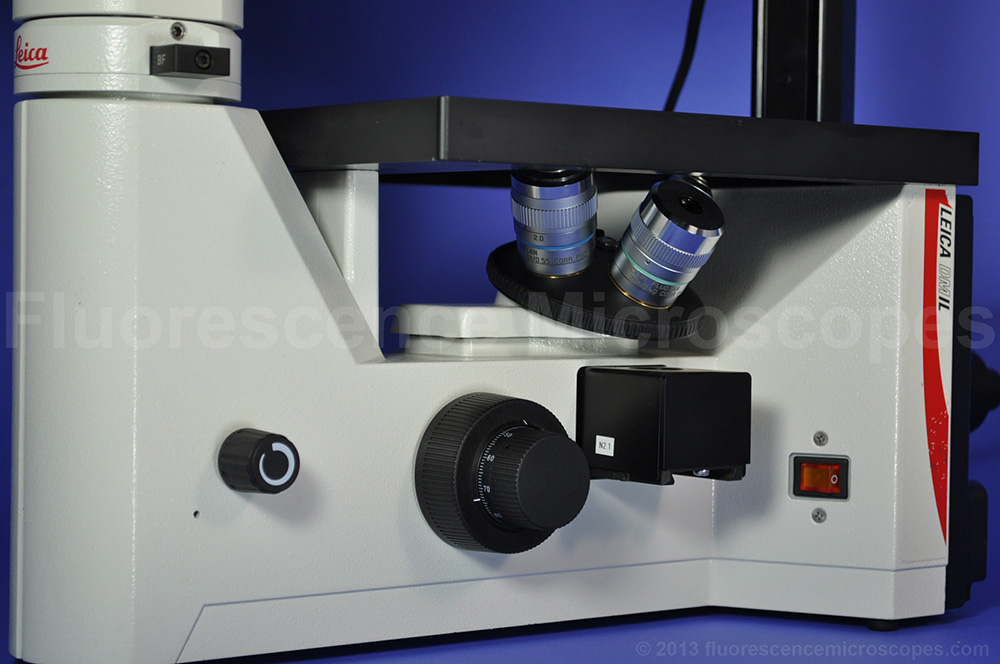

Quadruple (4-place) Nosepiece.

5x: N Plan 5x/0.12. Infinity/-/A

10x: HI Plan I 10x/0.22 PH1, Infinity/-. #506271, #345HG/01. (phase)

20x: HCX PL Fluotar L 20x/0.40 Corr PH1, Infinity/0-2/C. #506243, #D2HI/03. Correction collar 0-2mm. Marked “Leica Germany”. (Long working distance Plan-SemiApochromat, phase)(Harmonic Components, Universal application potential)

40x: N Plan L 40x/0.55 Corr PH2, Infinity/0-2/C. #506219, #T1HG/00. Correction collar 0-2mm. Marked “Leica Germany”. (Long working distance planachromat, phase)

Viewing magnifications in eyepiece: 50x, 100x, 200x, 400x.

Brightfield and Phase Contrast:

• Transmitted Illumination source 6V 35W (max).
• Powered internally (not by separate power supply).
• Daylight color corrected light filter: DLF
• Iris Diaphragm.
• Phase Contrast Slider. Positions for: Brightfield, 10 Phase, 20 Phase, 40 Phase. Leica #521234
• Condenser marked 0.35, S55, Leica part #521230.

Integrated Modulation Contrast:

Integrated modulation contrast is a method of using oblique illumination to enhance the visibility of living cells. This microscopy technique yields enhances relief type images, like a three dimensional view. This is similar to differential interference contrast and Hoffman modulation contrast.

Reference about Interference Modulation Contrast (IMC): http://www.leica-microsystems.com/science-lab/integrated-modulation-contrast-imc/

IMC slit diaphragm slide (Leica part number 521234). Marked IMC / BF / 10 20 40.
IMC Modulator (Leica part number 521234). Marked IMC / BF.

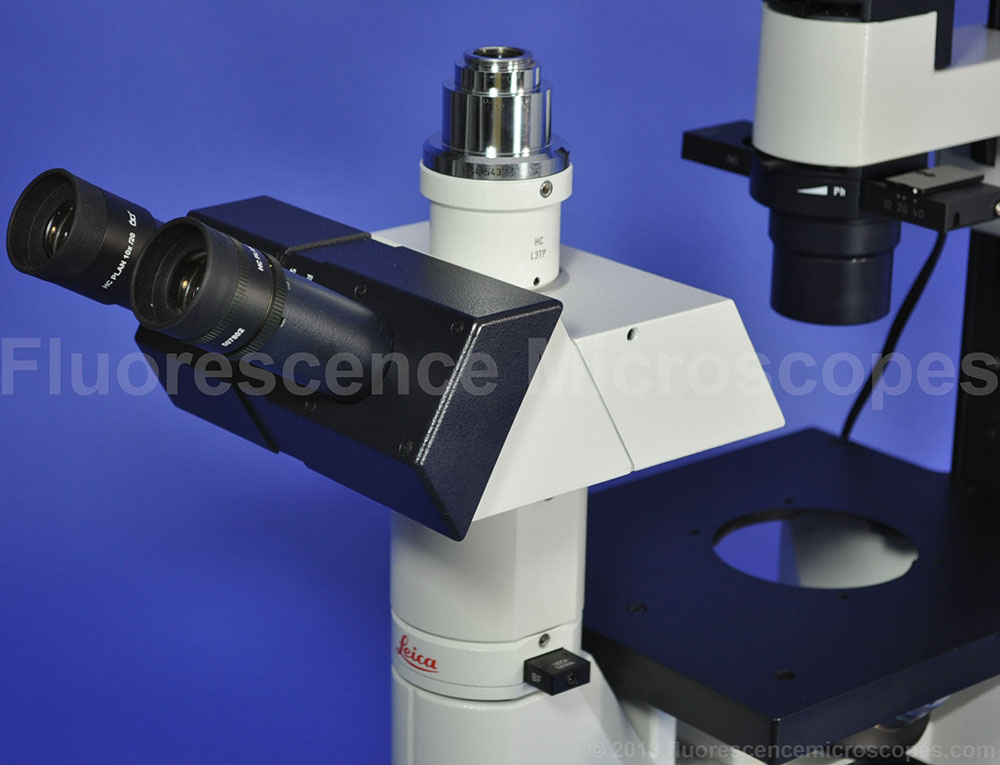

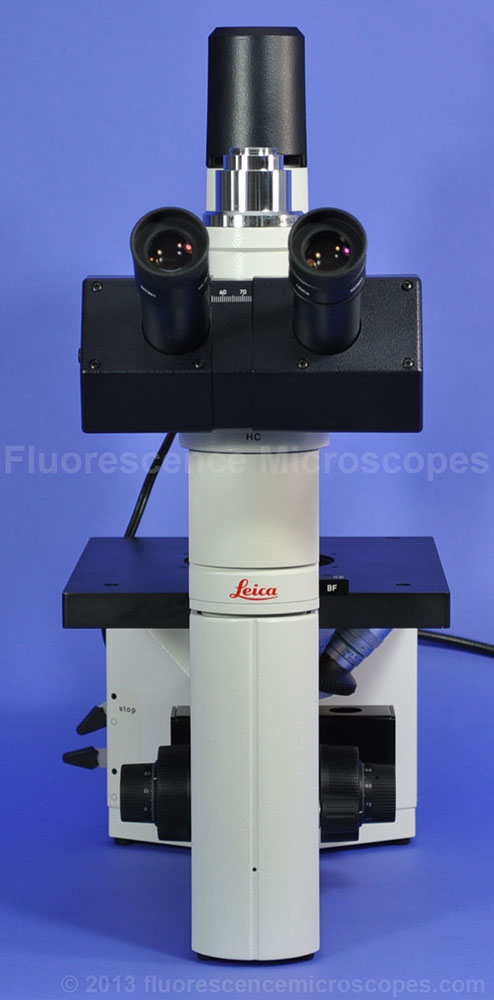

Trinocular Head:

• Trinocular Photography Port.
• Includes standard c-mount with 0.70x reduction lens built inside.
• Three-Position Head for: 100 percent light to viewing eyepieces, 50/50 light to eyepieces/camera, and 100 percent light to camera port.
• HC Plan 10x/20 Eyepieces. High eyepoint. One eyepiece has focusing adjustment. Each eyepiece has rubber eyeguards to block out stray light for optimal viewing of fluorescent stains.

Frame Markings:
Type: 090-135.002.
UL and CE Certification

Other Information:

Power Cord. This is supplied but not shown in the images.

Condition:

This is a reconditioned microscope and is in excellent working condition.

User Manual and Instructions:
Click this link: LEICA DM IL Manual
Click this link: LEICA DM IL Brochure
