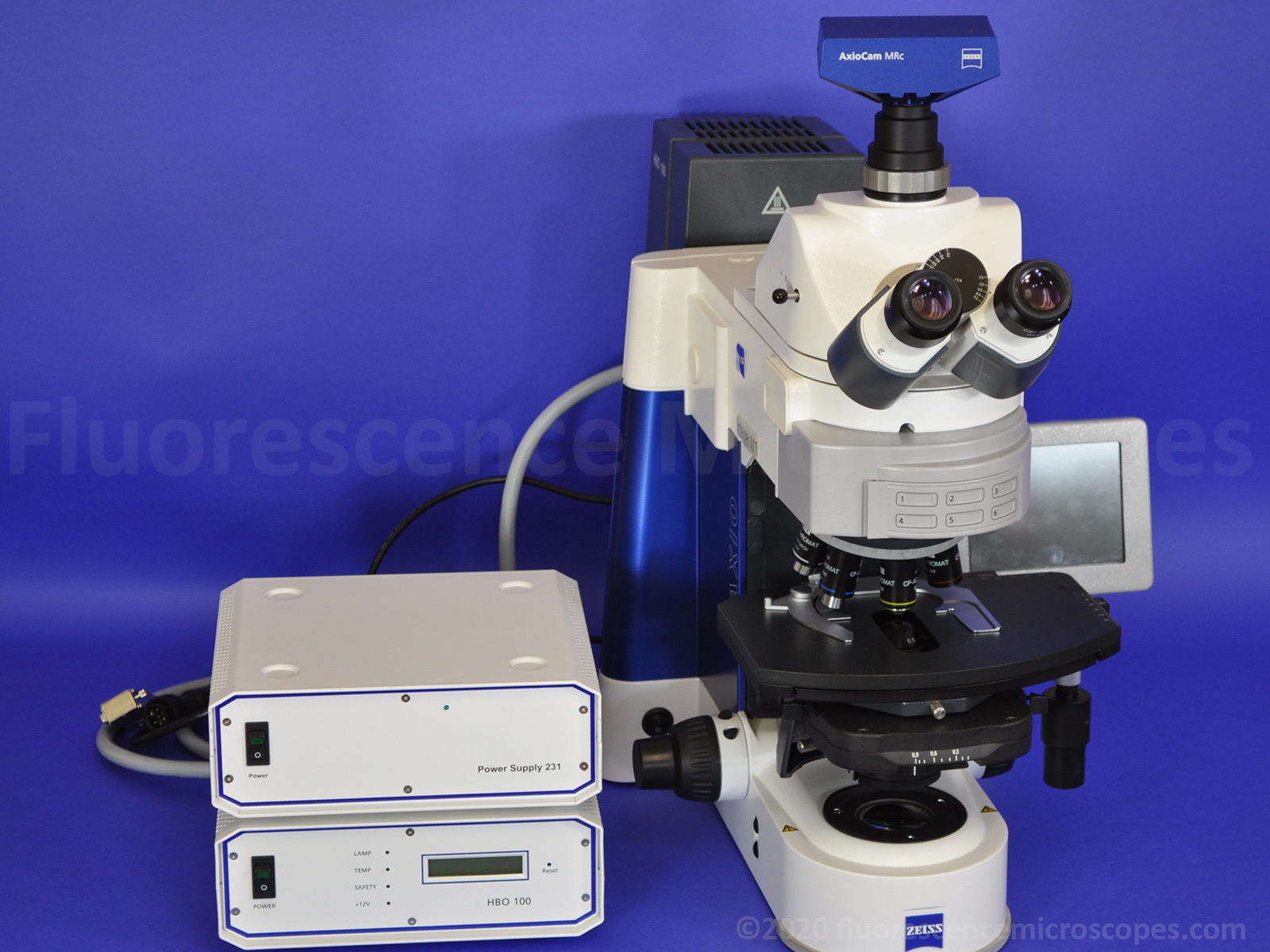

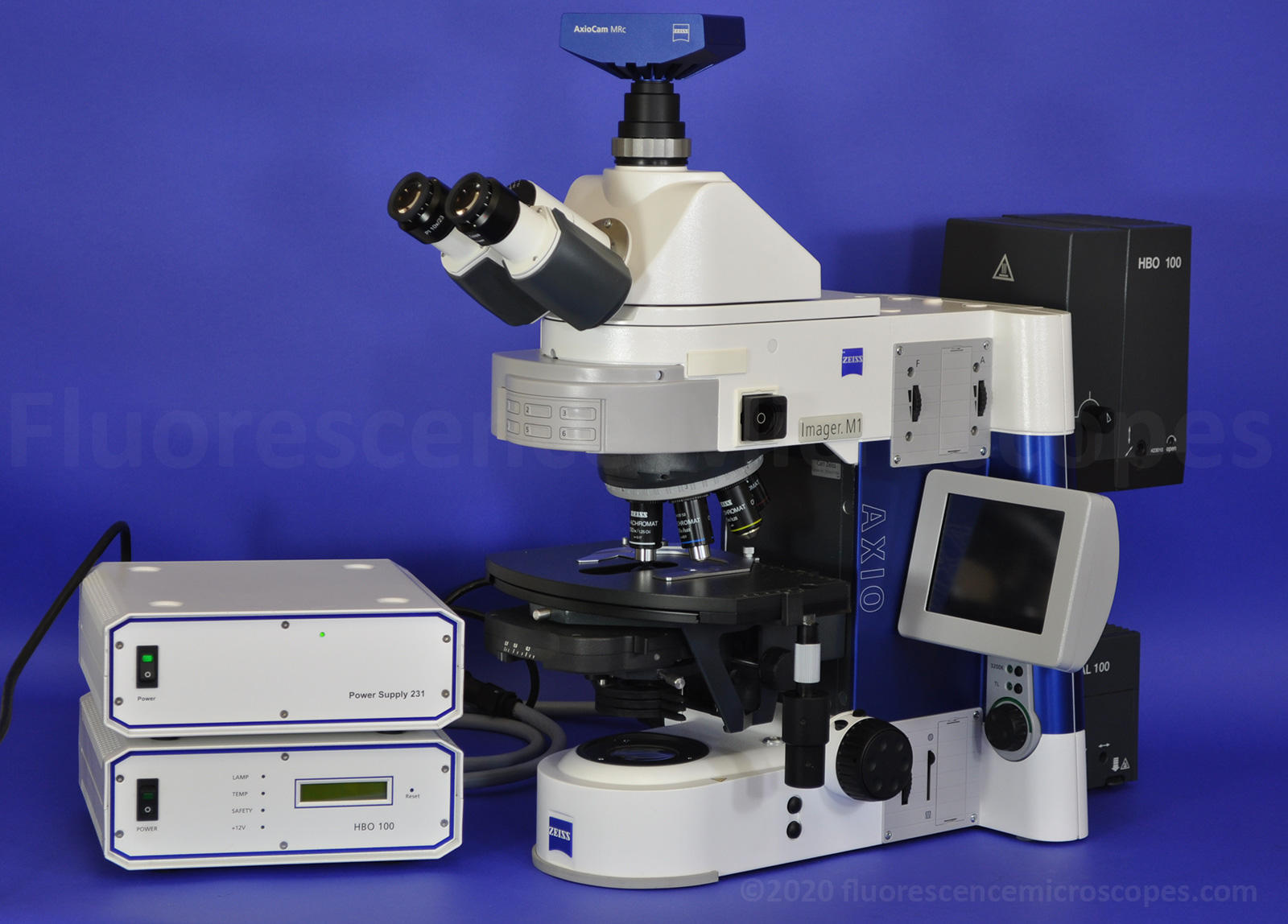

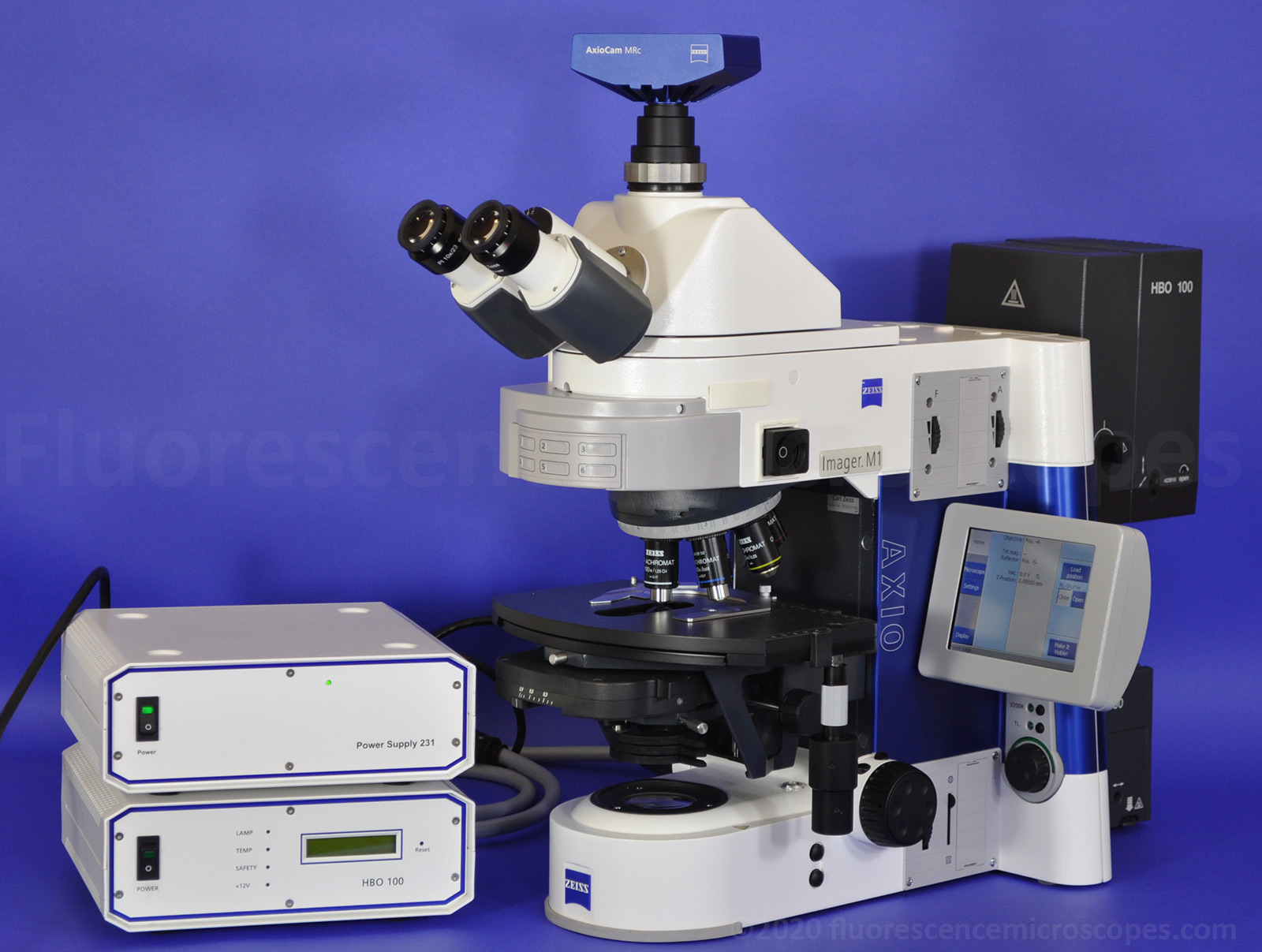

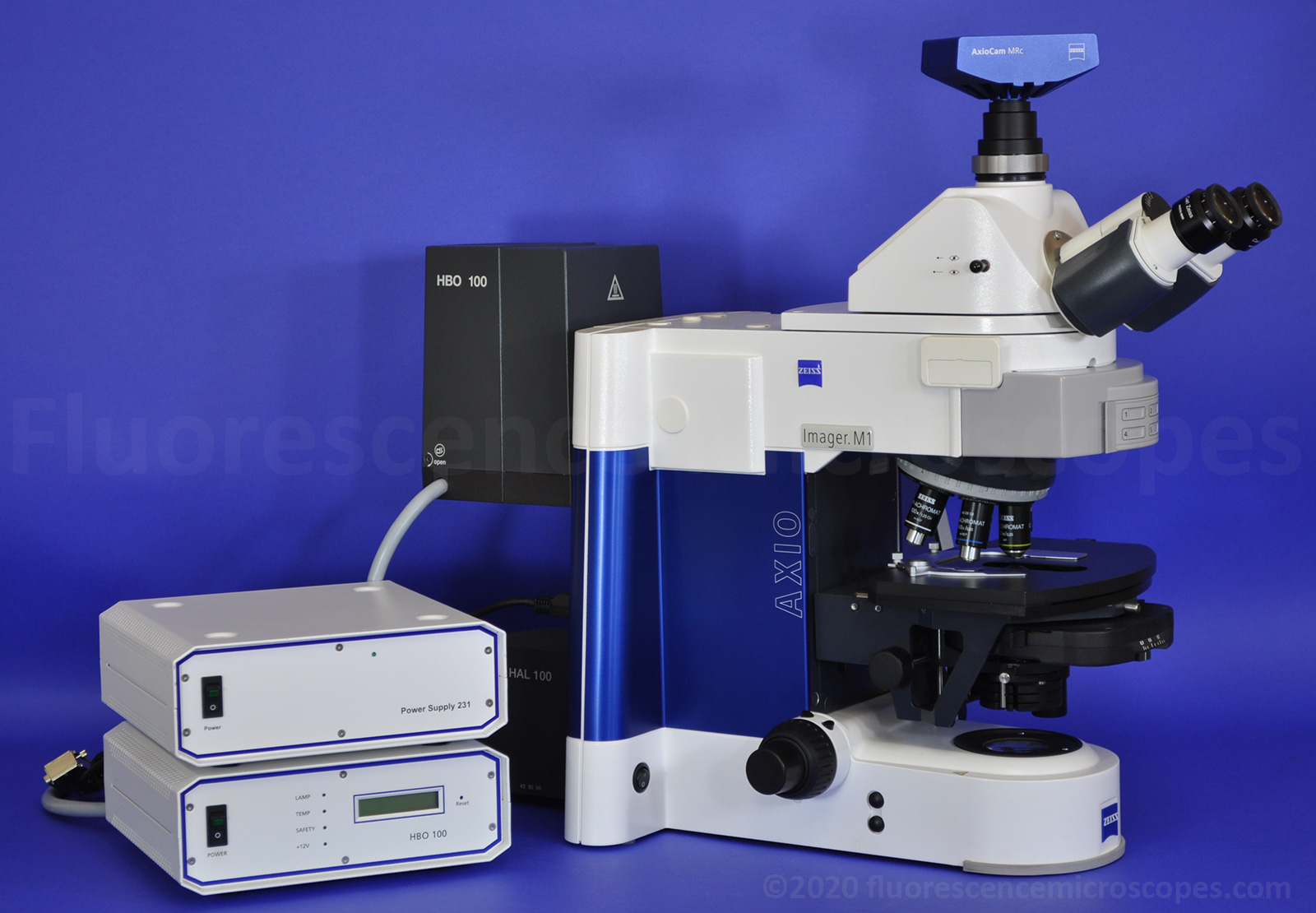

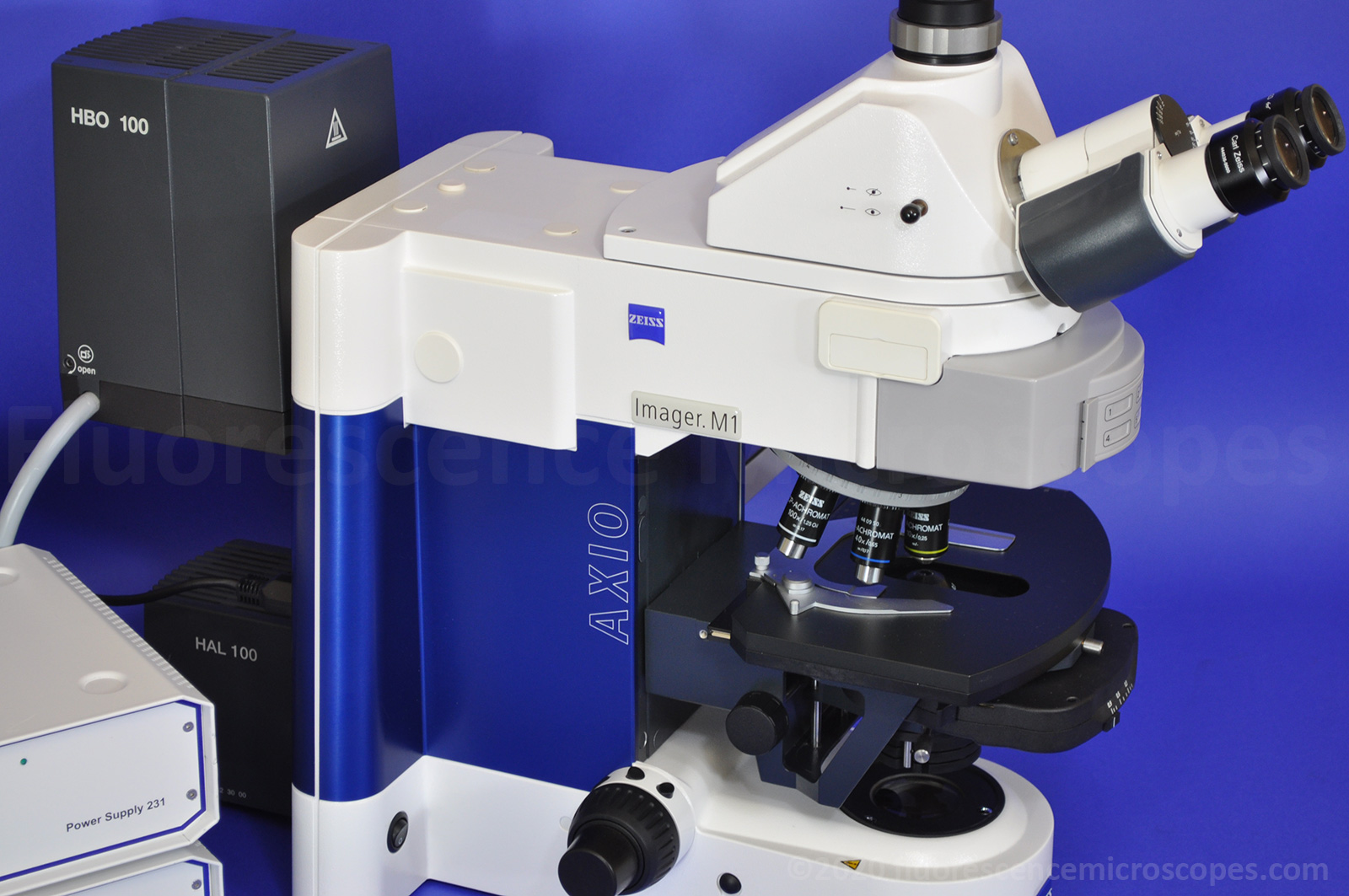

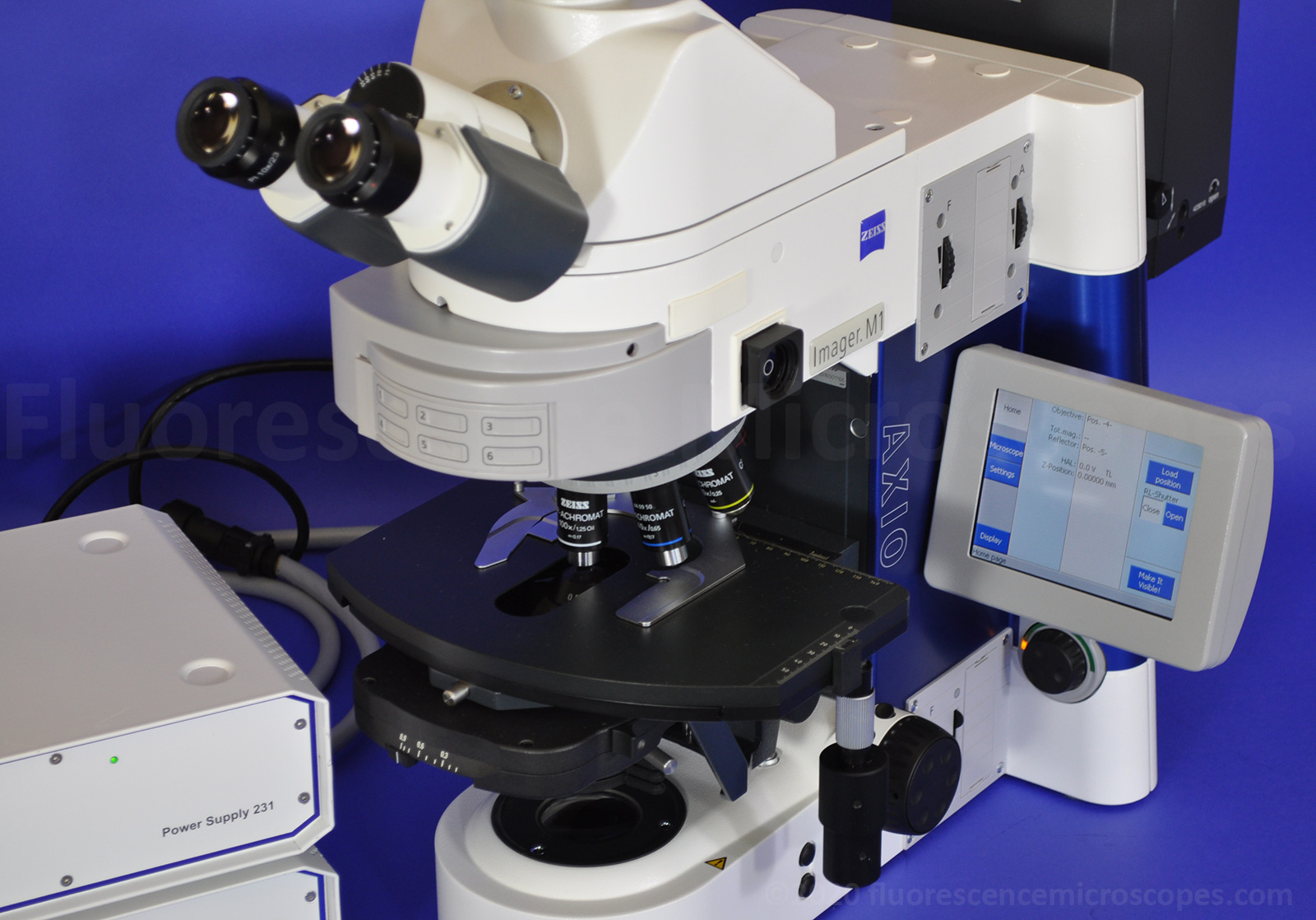

Zeiss Axio Imager M1
Upright - Motorized Operation
Fluorescence Microscope



Main features:

• Modern Zeiss product line.
• Latest style HBO and Halogen lamp housings.
• Motorized Frame.

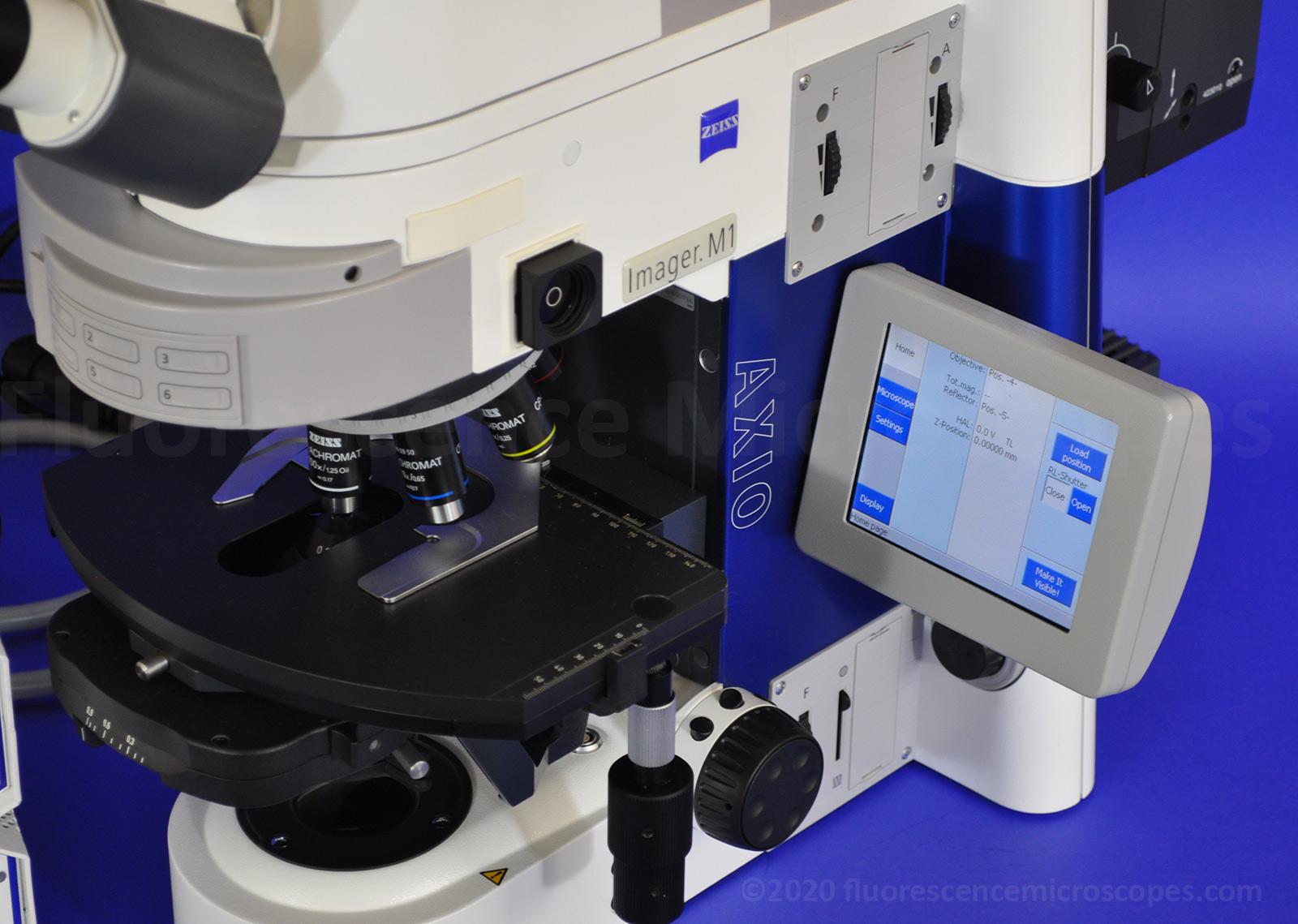

• TFT Control Screen.  Ability to access internal memory and change settings via the TFT touchscreen.

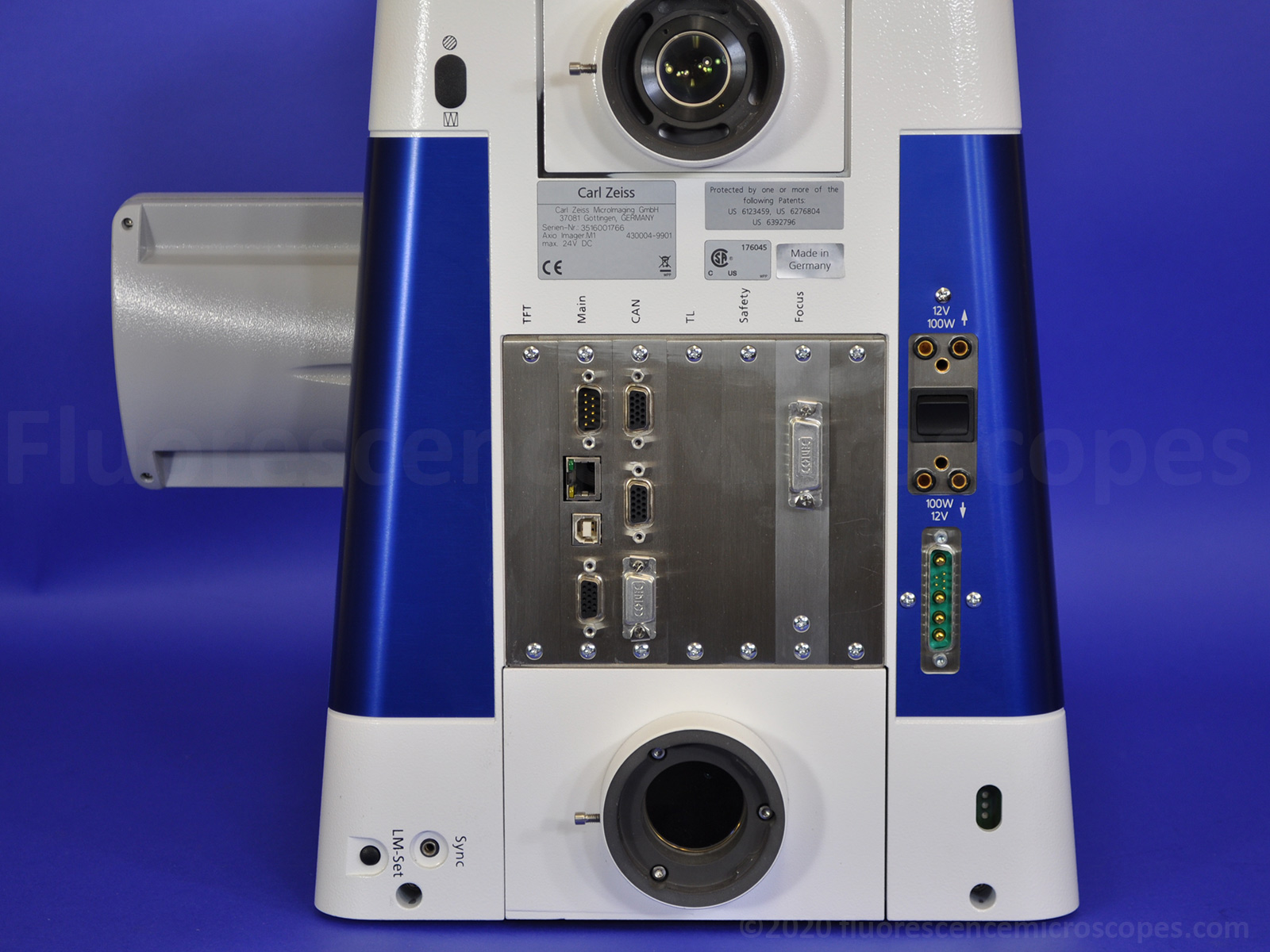

• Computer Connectivity capability.

Specifications:

• Eyepiece set: PL 10x/23.
• Voltage requirement for Frame: Auto range.
• Made in Germany.

Photography:

• Trinocular photo port on top of the head.
• Does not include C-mount adapter or camera.
• Camera is only shown to demonstrate how one is connected but it will not be included.

Objectives Lenses:

• 7-Place Motorized objective nosepiece. M27 threads. With RMS adapters.
• Let us know if you would like to replace or add to any of these objective lenses. We have a wide variety available.
• Includes these objectives:
• CP-Achromat 5x/0.12  ∞/- Objective.
• CP-Achromat 10x/0.25 Infinity Objective.
• CP-Achromat 40X/0.65 ∞/0.17 Objective.
• CP-Achromat 100x / 1.25.  Infinity /0.17 Oil Immersion Objective.

Fluorescence:

• HBO 100 illuminator.
• Autovolt external Mercury Arc power supply.
• Adjustment slider for centering the Mercury arc.
• Six-Place Motorized reflector cube turret.
• Field and Aperture iris diaphragms.

Dichroic Filter Cubes:

• 6-Place Motorized Rotary Reflector Cube Turret.
• (Qty 1 cube installed).
• FITC.
• Let us know what filter sets you may want. We have a wide variety and can supply most anything.

Transmitted Illumination:

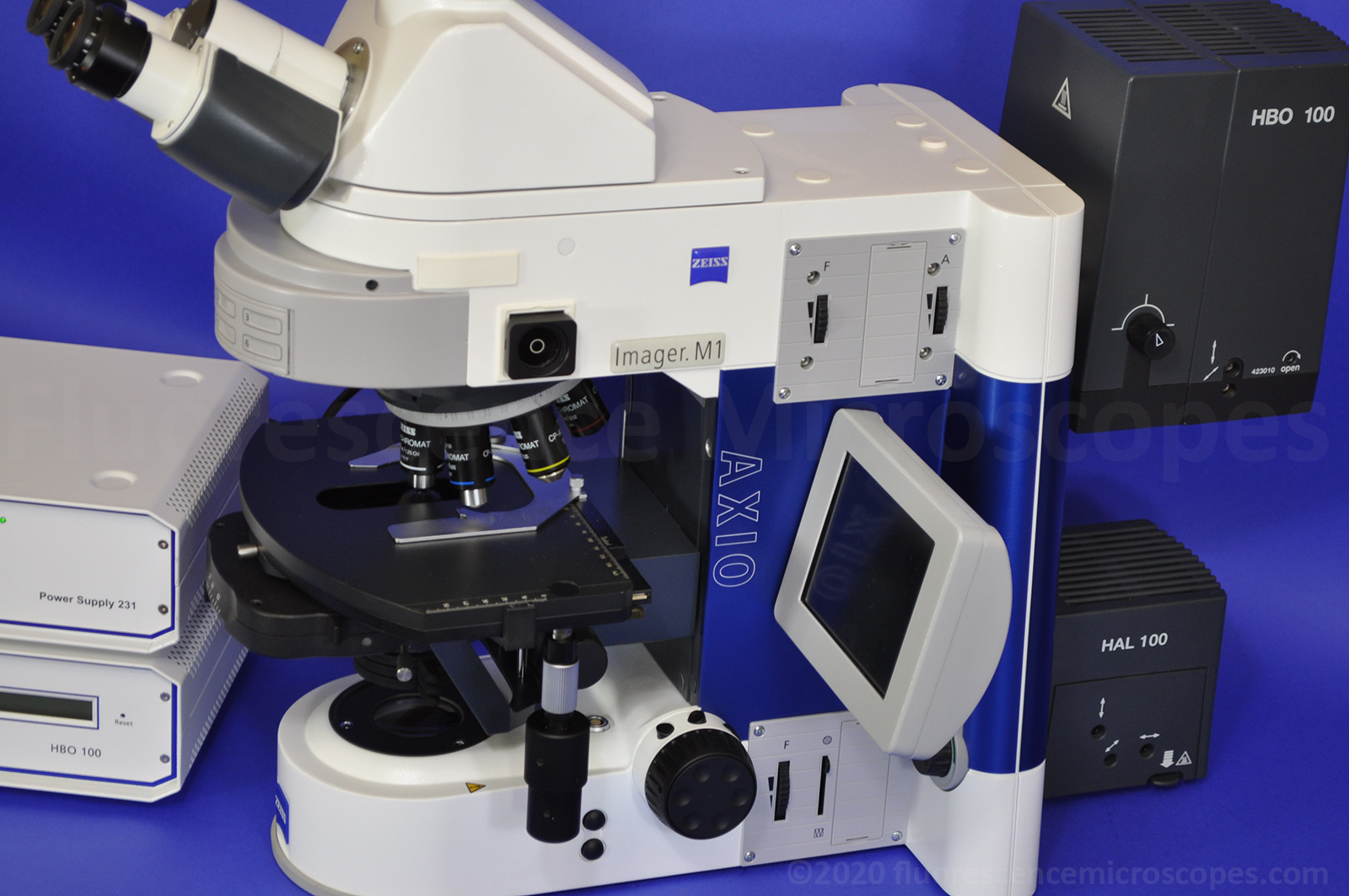

• 100W Halogen lamp housing, new model black style.
• Condenser:  0.9 N.A.  With iris diaphragm.  Flip top lens.
• 3200 K color temperature light button.
• Koehler illumination diaphragm.

Button Controls:

• Reflector turret rotation controlled by buttons on the left focusing knob.
• Objective turret rotation controlled by buttons on the right focusing knob.
• Load/Work buttons on both the left and right side of the frame. These buttons lower (then raise) the stage so objectives and slides can easily be changed.
• There are two buttons on the left knob and two buttons on the right knob that are not programmed.
• Reflected light shutter button on frame.
• Transmitted light on/off button on frame

Comments:

• We refurbish and repair fluorescence microscopes. We went through this microscope to get it in top shape for you.
• We are including the necessary tools to assemble.
• Our price is incredibly low.
• If you would like to have a camera, please let us know and we can add it into the ad. We sell the same cameras as others, for much less.
• Includes power cord. Not shown.
• Upon purchase, we will email links to the user manuals / instructions.

User Manual and Instructions:

Copy link from this page:

Click this link: Zeiss Axio Imager Brochure.pdf

Click this link:  Zeiss Axio Imager Operating Manual.pdf
